1D Barcodes

SocketScan S700

Entry-level 1D Barcode Scanner

The S700 has been discontinued. Please check out the SocketScan S720, our newest low-cost 1D/2D barcode scanner.

Reads:
  • 1D Barcodes
1D Barcodes

SocketScan S700

Entry-level 1D Barcode Scanner

The S700 has been discontinued. Please check out the SocketScan S720, our newest low-cost 1D/2D barcode scanner.

1
Scans on Screen
Native support in:
ShopKeep Shopify Square
Compatible with:
Bluetooth Apple iOS Android Windows

The S700 has been discontinued. Please check out the SocketScan S720, our newest low-cost 1D/2D barcode scanner.


It will enable you to add items to your cart quickly at check-out, eliminate errors, and spend more time interacting with your customers. The sleek charging dock ensures it is always charged and ready for action. The sleek charging dock ensures it is always charged and ready for action.

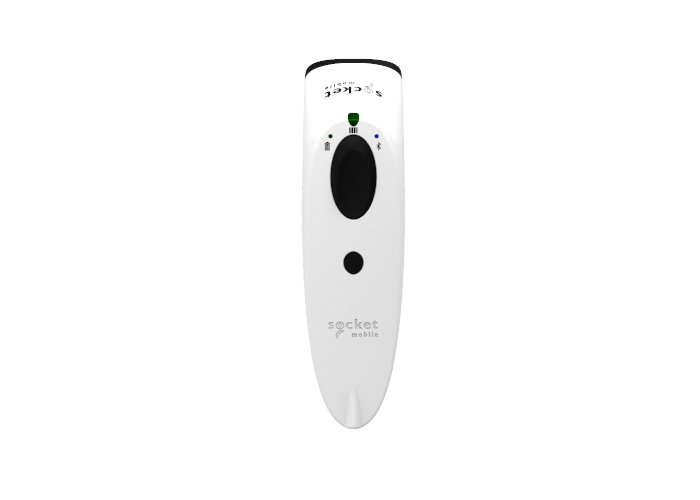

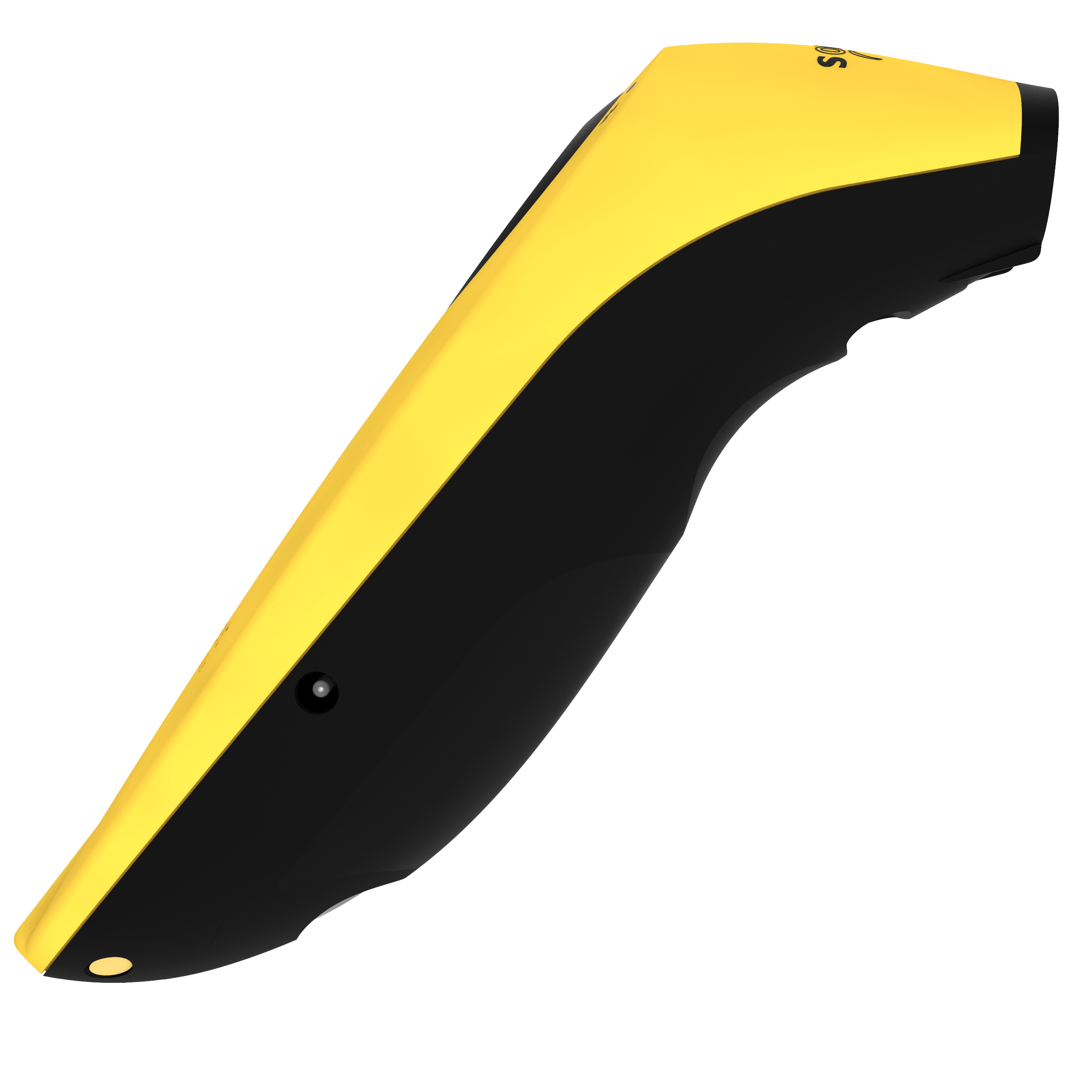

The S700 1D barcode scanner with Bluetooth wireless technology scans on paper or screen. It has a lightweight, ergonomic structure, and a long-lasting battery to withstand entire workdays. The lights for battery, Bluetooth and scanning notifications make the scanner more intuitive to use. The S700 is designed to be software-compatible with all applications. Updates on operating systems may alter the devices’ performance.

This scanner is ideal for retail POS, field service, inventory management, asset tracking, and more. Our Companion App makes setup and configuration easy.

The S700 1D Scanner does not read 2D barcodes. To scan QR and other 2D barcodes, we suggest our  S720 1D, 2D/QR Code scanner.

For the most reliable and consistent performance, please verify with your application provider that Socket Mobile’s latest CaptureSDK was implemented in your app.

Features
  • Multi-Device Compatibility

    Apple® Certified for iOS devices (iPhone®, iPad®) and compatible with Android®, and Windows® 10.

  • Robust Scanning

    Fast 1D scanning for both printed and on-screen barcodes.

  • Ergonomic

    Small, light, and fits perfectly in the hand for comfortable use over extended periods.

  • Long-Lasting Battery

    Features rechargeable and field-replaceable battery that lasts a full shift.

  • Intuitive User Indicators

    LED lights that indicate successful scanning and battery charging status.

  • Easy App Integration

    Socket Mobile's Capture SDK enables easy integration in your applications to improve business productivity with fast, efficient, and reliable data transfer over Bluetooth wireless technology. Data reader works out of the box for apps that have already integrated CaptureSDK.

  • Developer Support

    Our support team is available to assist with set-up and operation.

  • Bluetooth Wireless Integration

    Dependable Bluetooth connection to host devices.

  • Audible Feedback

    Multiple feedback tones to indicate successful scans/reads and other important action confirmations.

  • 1-Year Warranty Included

    Extended warranty options also available.

  • Designed and Assembled in the USA

    All socket mobile data readers are built at our headquarters in Fremont, CA.

Dimensions
SocketScan 700 Series Dimensions
External Control
SocketScan 700 Series External Control
Reading Performance
Default Barcode Symbologies
  • 1D Symbologies: Code 39, Code 128, EAN-13/JAN, EAN-8/JAN, GS1 Databar, GS1 Databar Expanded, GS1 DataBar Limited, GS1-128, Interleaved 2 of 5, UPC-A, UPC-E1
Supported Barcode Symbologies
  • 1D Symbologies: Bookland EAN, Chinese 2 of 5, Codabar, Code 11, Code 39, Code 93, Code 128, EAN-13/JAN, EAN-8/JAN, GS1 Databar, GS1 Databar Expanded, GS1 DataBar Limited, GS1-128, Interleaved 2 of 5, Matrix 2 of 5, UPC-A, UPC-E1

Learn how to enable and disable data types.

Scan Angle

53°

Optical Resolution

5 mil/0.1 mm

Print Contrast

Down to 25%-20%

Reading Distance

1D Barcode Scanner Reading Distance

Decode Ranges - 1D

3.5 to 41 cm (1.4 to 16.1 in) Resolution Depends on barcode size, symbology, label media.

  Near Far
5 mil Code 39 2.8 in./ 7 cm 5.9 in./ 15 cm
10 Mil Code 39 1.4 in./ 3.5 cm 11.0 in./ 28 cm
15 Mil Code 39 1.8 in./ 4.5 cm 16.1 in./ 41 cm
13 Mil UPC/EAN 1.6 in./ 4.0 cm 12.6 in./ 32 cm
Battery Information
Battery Type 2 rechargeable NiMh (replaceable battery)
Charge Time ~6 Hours
Life of battery 500 charge-discharge cycles
Life per full charge

Standby time:

  • Over 20 hours

Active Scan Time:

  • 70,000 scans within 9 hours based on two scans every 1 second
  • 12,000 scans within 15 hours based on one scan every 4 seconds
Battery weight 54.5g
Percentage lithium N/A
mAh 2000 mAh
Cells per battery 1
Watts per battery 2.4
Cell type AA
Chemical composition Nickel Metal Hydride
Lithium content N/A
Voltage 2.4v
Hazmat UN Number N/A
ROHS Compliance Yes, on the battery & data reader
Country of origin China
Commodity code 8507.50.0000
Bluetooth Information

Class 2 Bluetooth, version 2.1 + EDR (Enhanced Data Rates) with 56-bit data encryption

Up to 10 meters (33 ft.), depending on the environment. The range limit is usually due to the Host Device (phone, tablet, or notebook).

  • Basic Mode - Human Interface Device (HID)
  • Application Mode - Serial Port Profile (SPP)
  • iOS Application Mode (Default)

Some Operating Systems or smartphone/tablet models may support only one profile.

Operating Systems
apple-logo-blue android-logo-blue windows-logo-blue apple-mac-logo
Packaging

Data Reader with Charging Cable

  • Data Reader
  • Charging Cable
  • Get Started Guide

Data Reader with Charging Dock

  • Data Reader
  • Charging Dock (If selected)
  • Get Started Guide
User Environments

From 0 to 100 000 lux. From pitch black to direct sunlight.

0° to 45° C (32° to 113° F)

-40° to 70° C (-40° to 158° F)

95% at 60° C (140° F) (non-condensing)

4 ft. drop to linoleum.

Certification & Regulatory

Bluetooth SIG:

  • Declaration ID: D030473
  • QD ID: 82009

Electrical Safety:

  • Certified to IEC 60950-1
  • UL 60950-1
  • CAN/CSA C22.2

Environmental:

  • RoHS EN 50581

EMI / RFI:

  • FCC Part 15 Class C, RSS 210, iCES 003, C-Tick, CISPR 22, CE EN55022, EN55024
  • FCC ID: T9J-RN42
  • IC ID: 6514-RN42
  • Telec: R 201-125709

LED Safety:

  • IEC/EN 62471 (EXEMPT GROUP)
anab-accredited ISO9001
Setup & Configuration
Partners & Resources
Product SKUs

Scanner

  • CX3360-1682 - S700 (Blue)
  • CX3803-2563 - S700 (Black)
  • CX3395-1853 - S700 (Green)
  • CX3391-1849 - S700 (Red)
  • CX3397-1855 - S700 (White)
  • CX3393-1851 - S700 (Yellow)

Scanner & Charging Dock Bundle

  • CX3465-1933 - S700 (Blue) with Charging Dock (Black)
  • CX3484-1979 - S700 (Blue) with Charging Dock (White)
  • CX3805-2565 - S700 (Black) with Charging Dock (Black)
  • CX3463-1931 - S700 (Green) with Charging Dock (Black)
  • CX3524-2126 - S700 (Green) with Charging Dock (White)
  • CX3461-1929 - S700 (Red) with Charging Dock (Black)
  • CX3522-2124 - S700 (Red) with Charging Dock (White)
  • CX3464-1932 - S700 (White) with Charging Dock (Black)
  • CX3483-1978 - S700 (White) with Charging Dock (White)
  • CX3462-1930 - S700 (Yellow) with Charging Dock (Black)
  • CX3523-2125 - S700 (Yellow) with Charging Dock (White)
