Bluetooth Barcode Scanner S741 | 1D/2D, QR & OCR ID Scanner

The SocketScan S741 is a Bluetooth® LE (Low Energy) wireless barcode scanner designed for fast, reliable scanning of 1D and 2D barcodes on both paper and digital screens. It excels at reading small, dense, and damaged barcodes, making it ideal for retail, point-of-sale, and ID verification applications. With support for OCR formats, including passports and driver’s licenses, the S741 integrates easily with iOS, Android, and Windows devices while maintaining stable connections and efficient power usage.

Reads:

1D Barcodes, 2D Barcodes

Native support in:

Compatible with:

Caution Triangle with Exclamation Mark This product uses a Bluetooth LE (Low Energy) connection method that is different from our Bluetooth Classic data readers and requires a supported software application. Before purchasing, please confirm your app uses the latest version of Socket Mobile's CaptureSDK or contact us to discuss your requirements.

With a scanning range of 2 to 19 inches, the S741 captures barcodes that are often difficult for standard scanners, including tiny labels, worn codes, and low-contrast prints. It supports 1D, 2D, DotCode, and OCR formats such as OCR-A, OCR-B, OCR USC, OCR Passport, and OCR MICR, making it well suited for identity verification and travel document scanning.

For retail environments that require age verification for regulated products like alcohol, cannabis, and tobacco, the S741 serves as a single-device solution. Employees can verify IDs and complete transactions without switching hardware.

The S741 is lightweight, ergonomically designed, and built for all-day use. Bluetooth Low Energy technology helps extend battery life while maintaining stable wireless connections. LED and audible indicators provide clear feedback on battery status, connection, and scanning activity.

For optimal performance, ensure your application supports the latest version of CaptureSDK 2.x.

Available in the following bundles

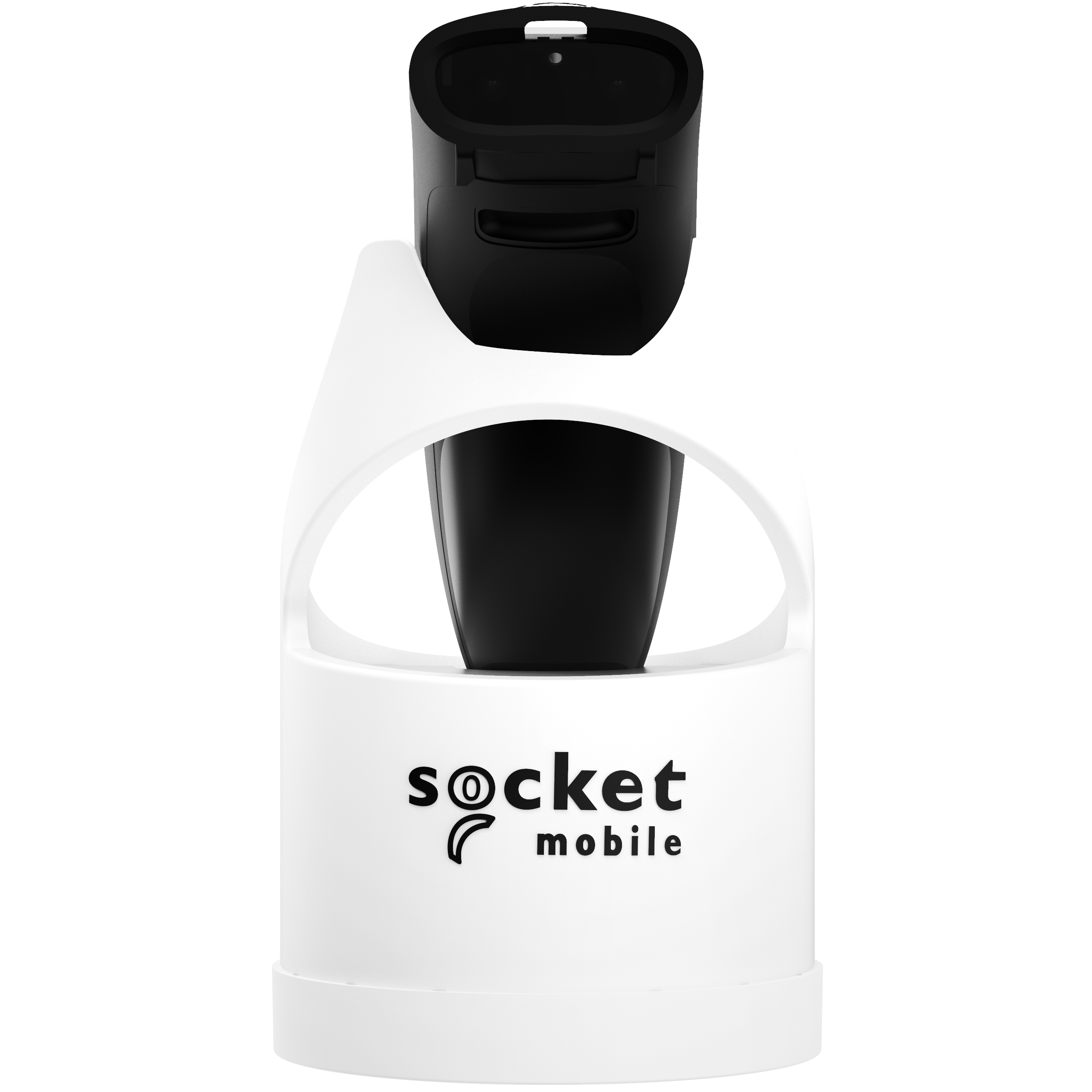

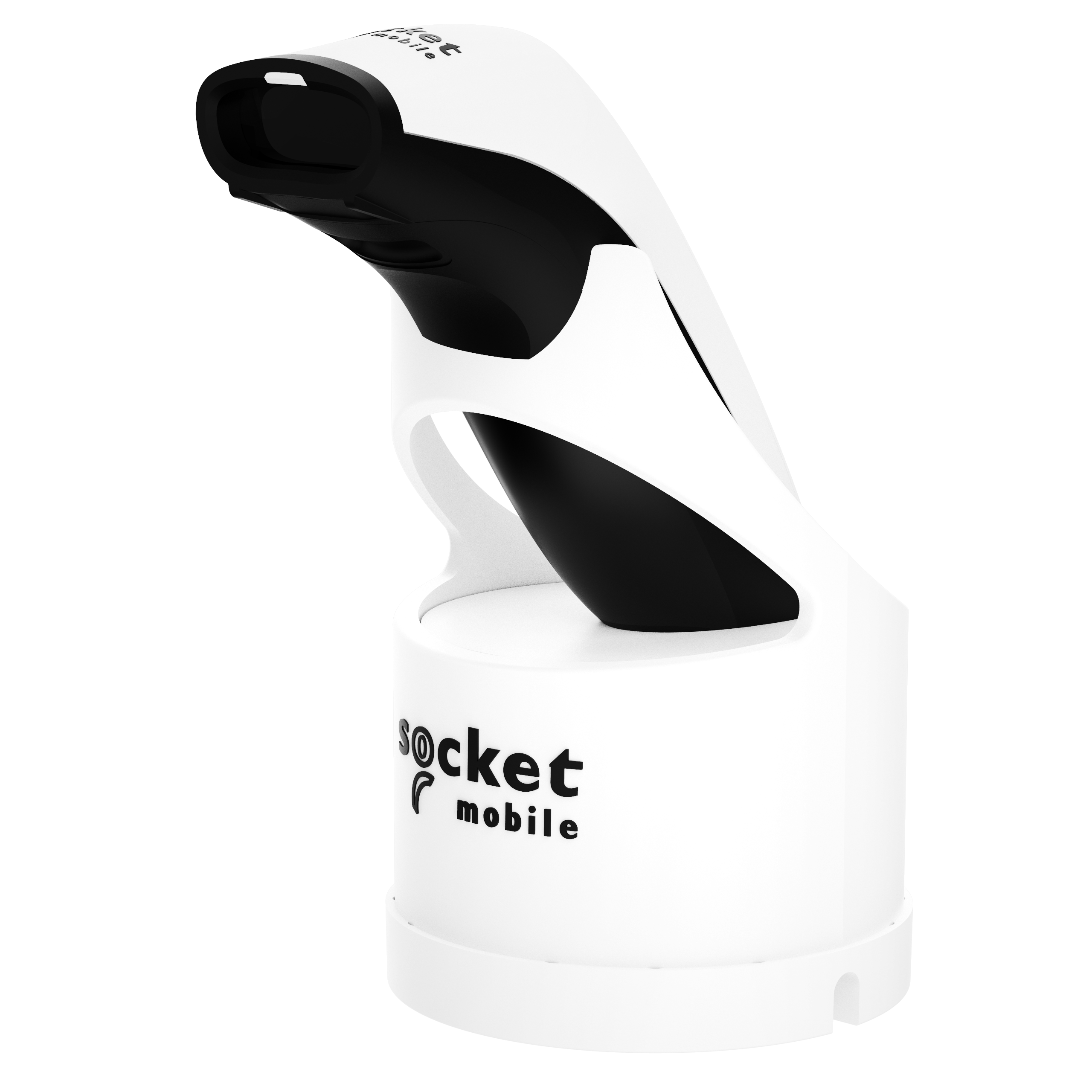

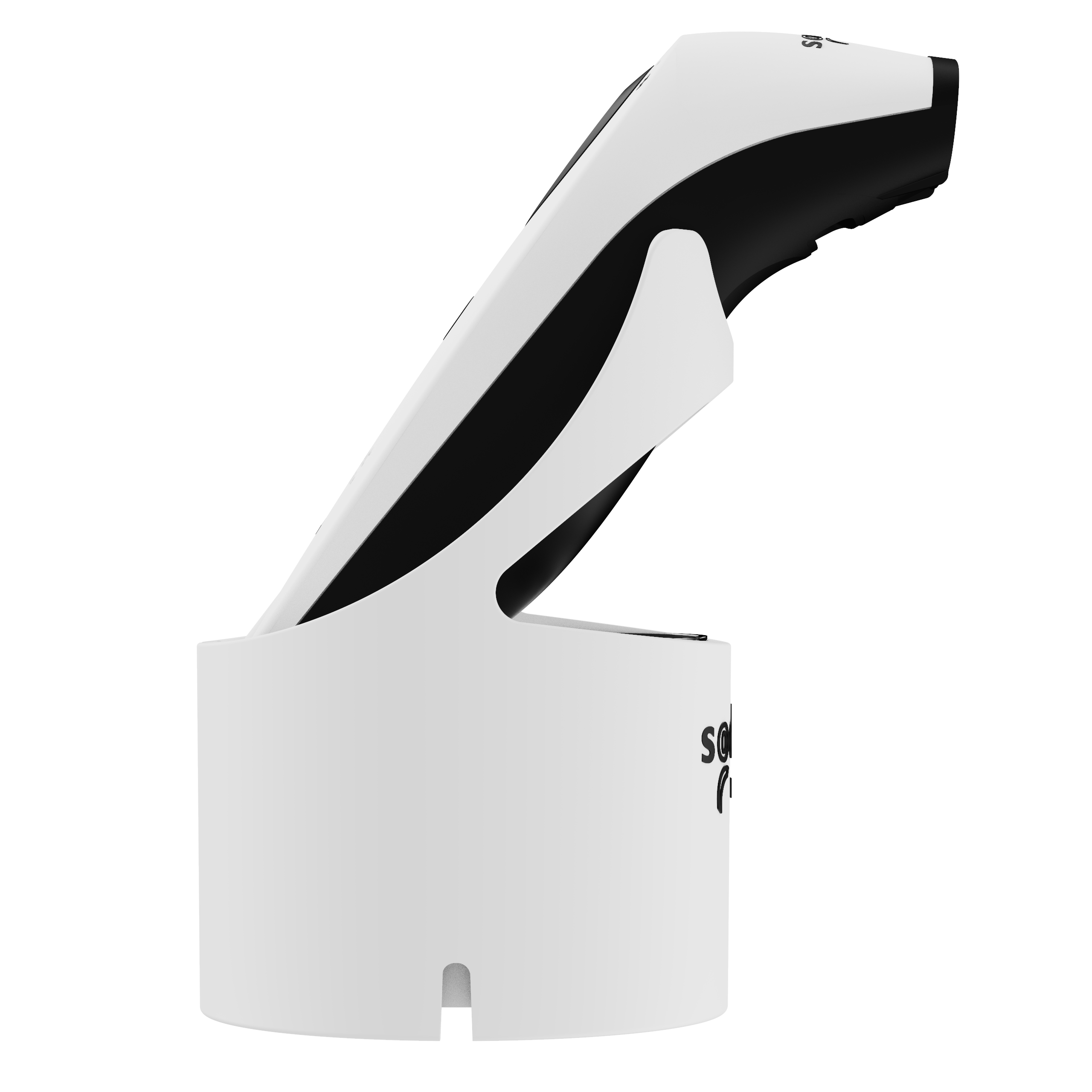

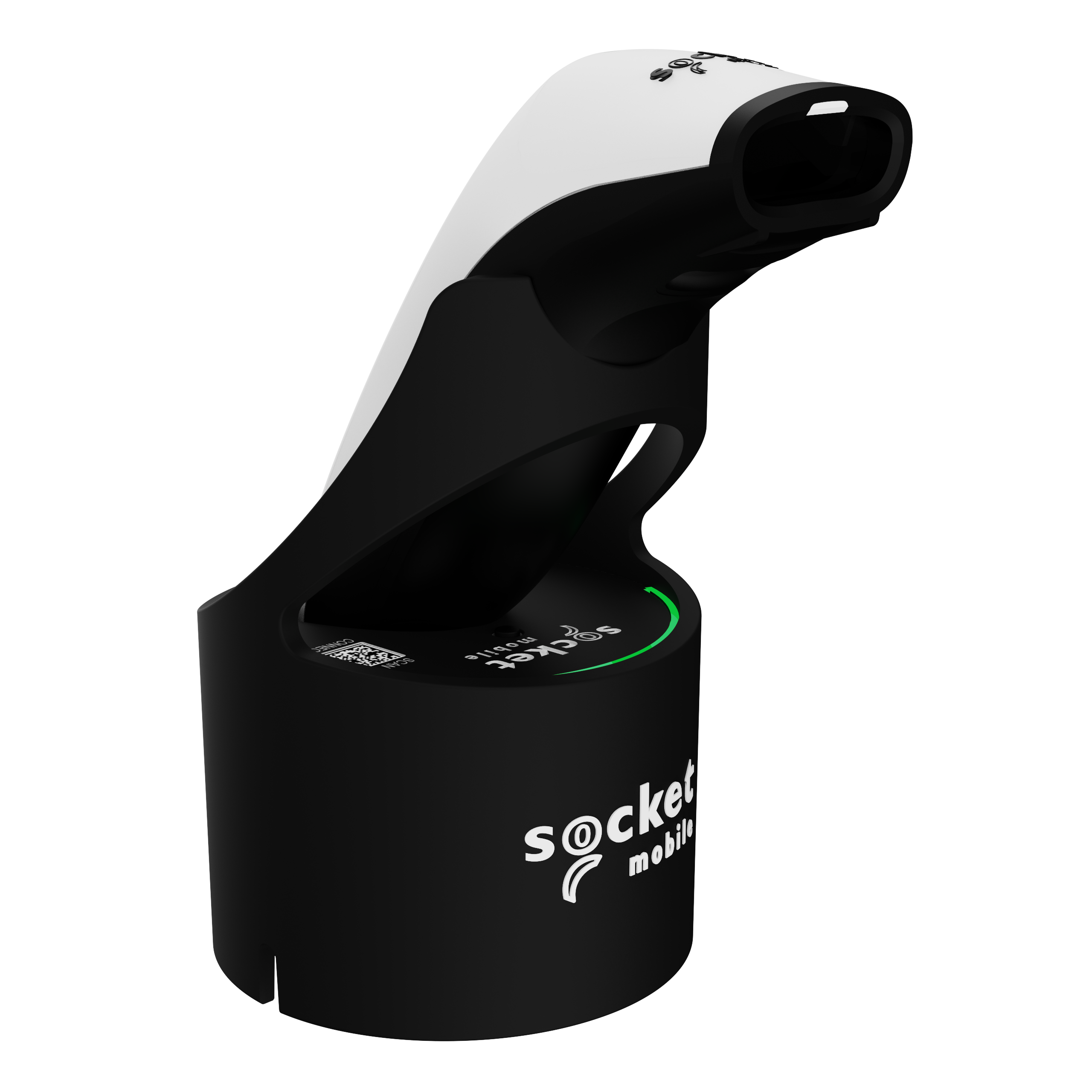

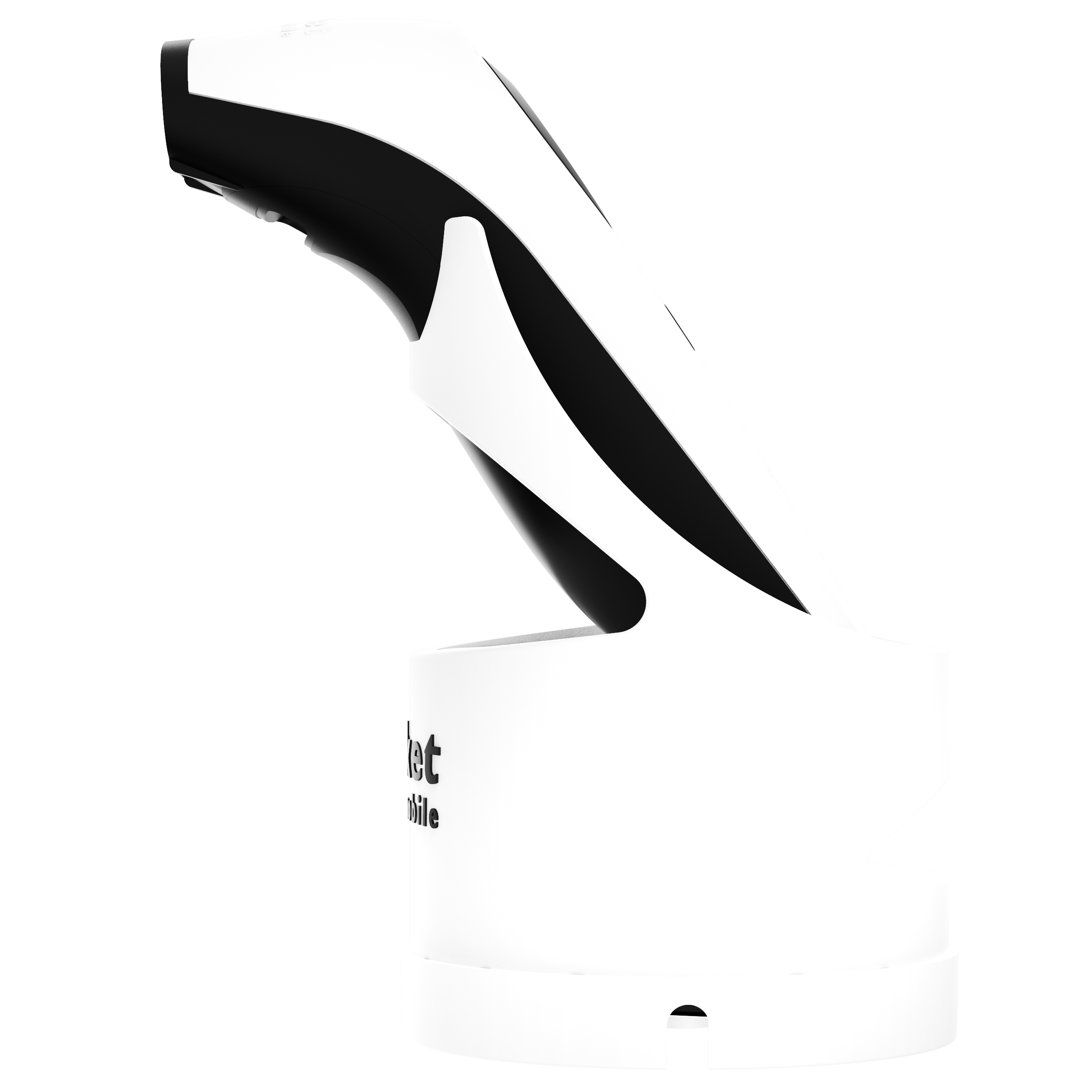

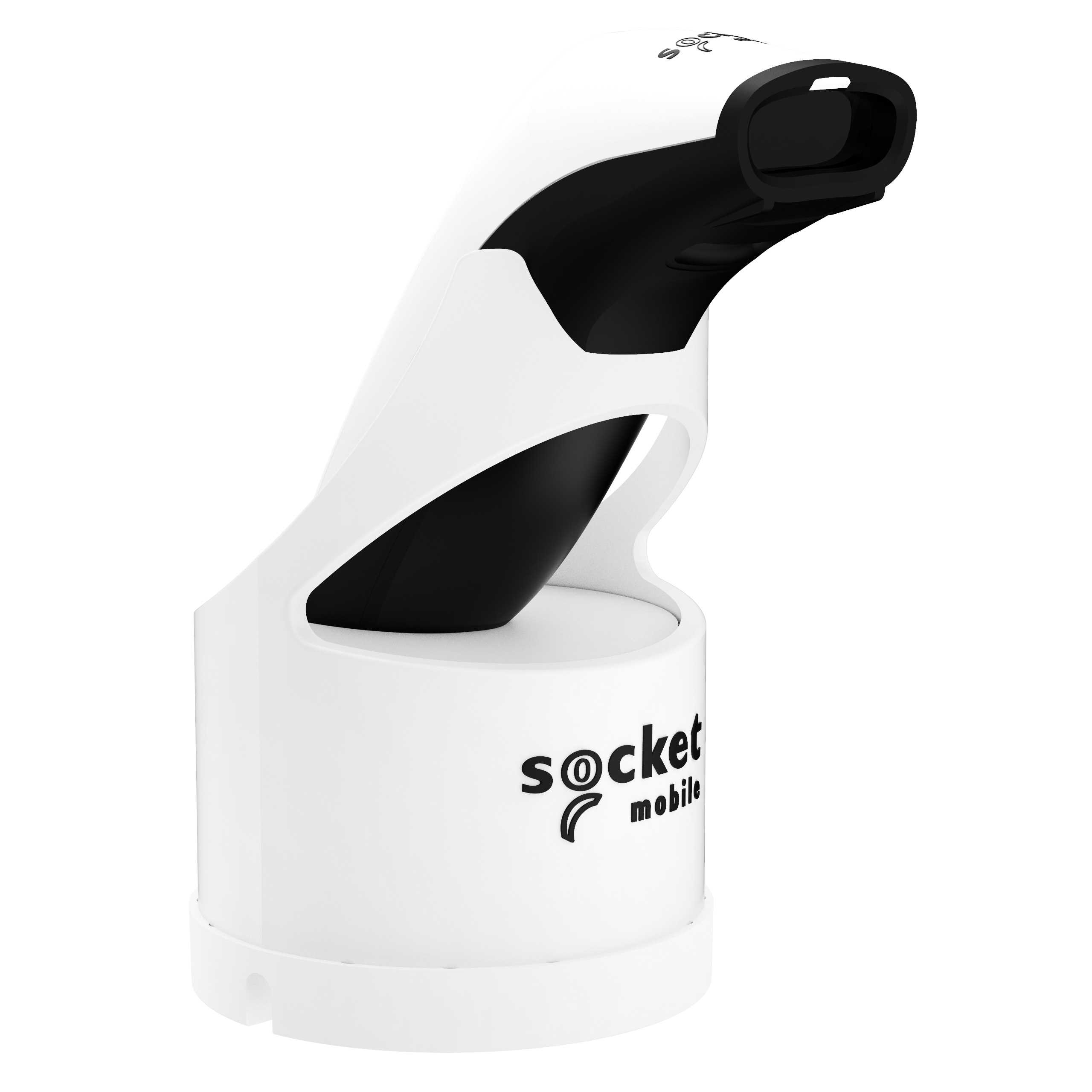

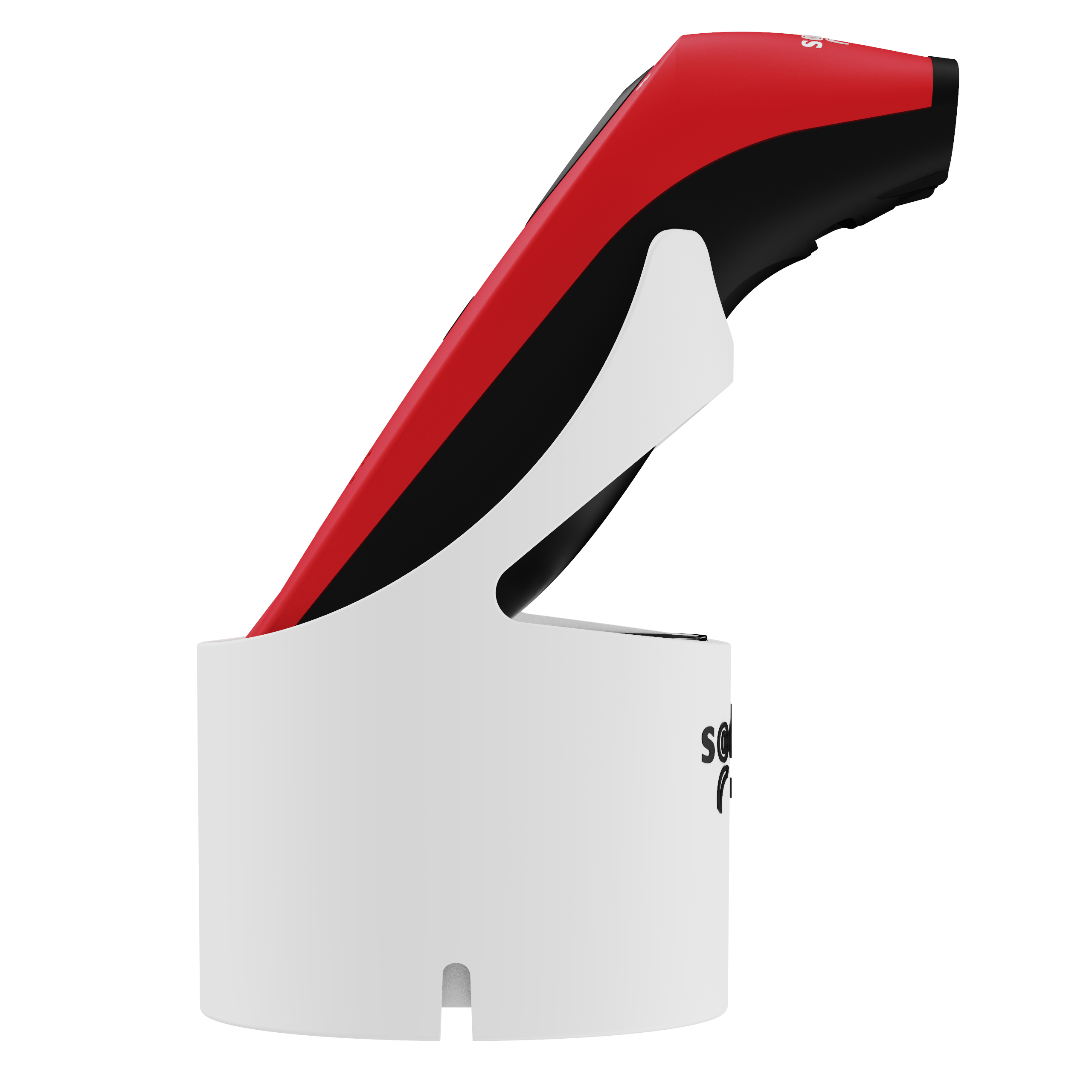

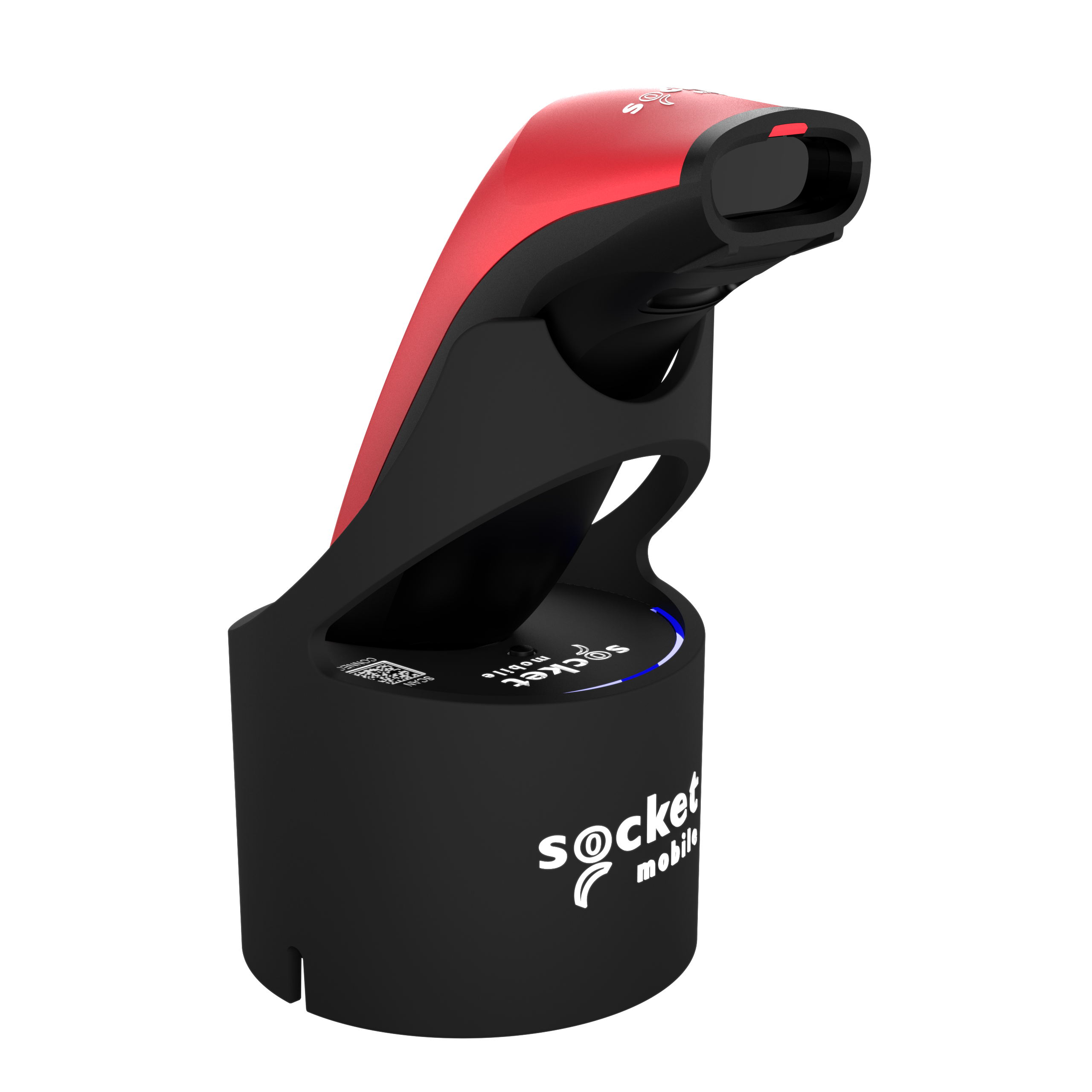

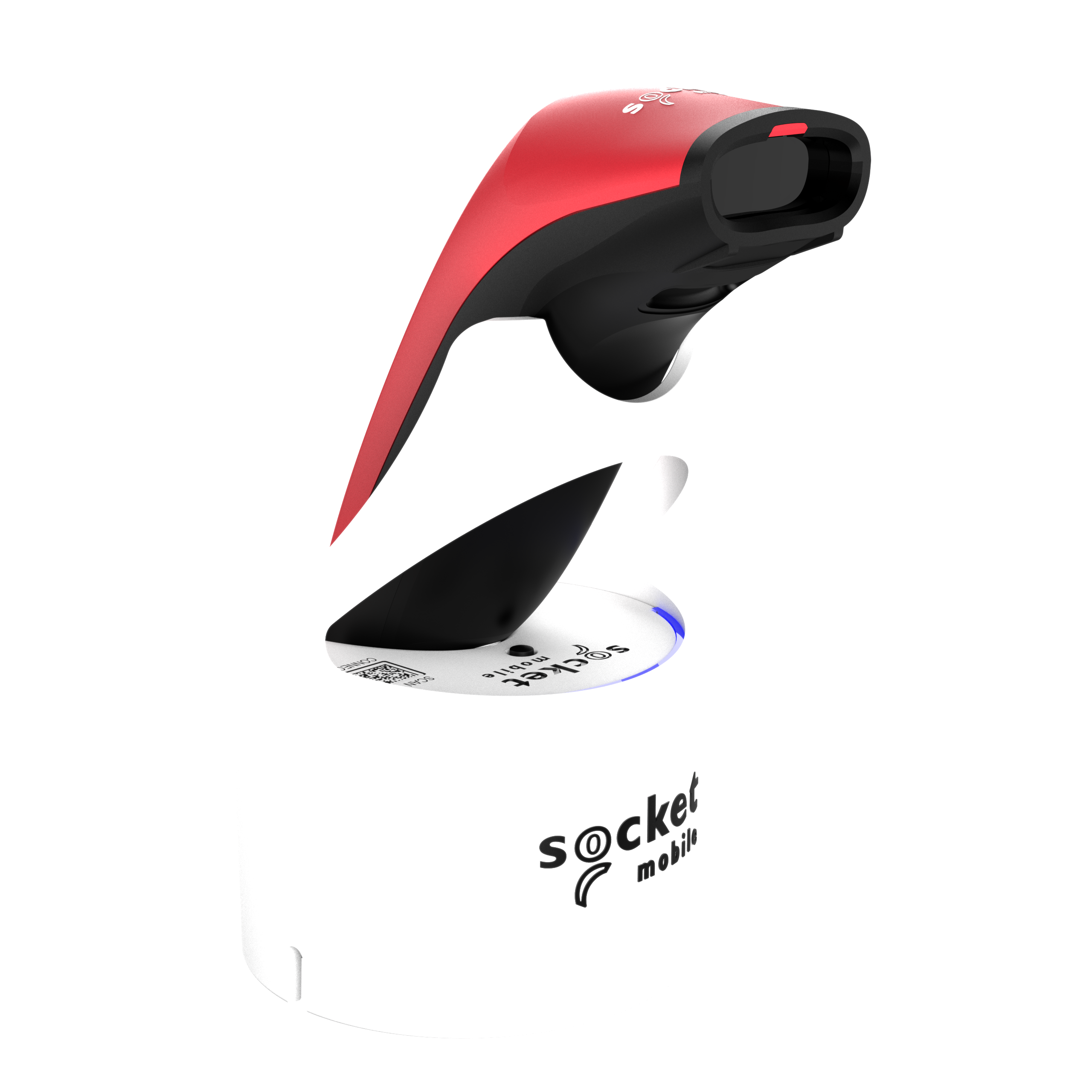

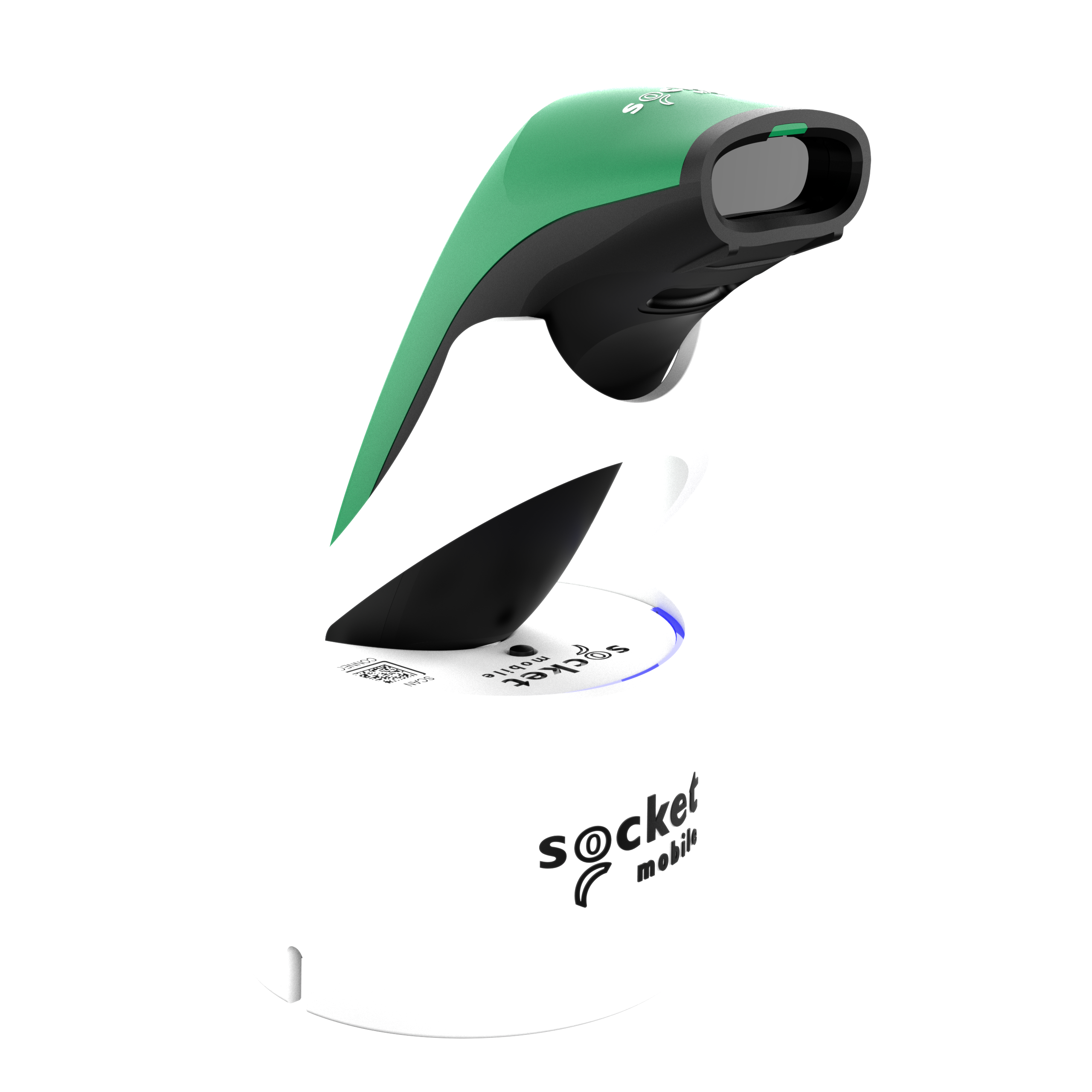

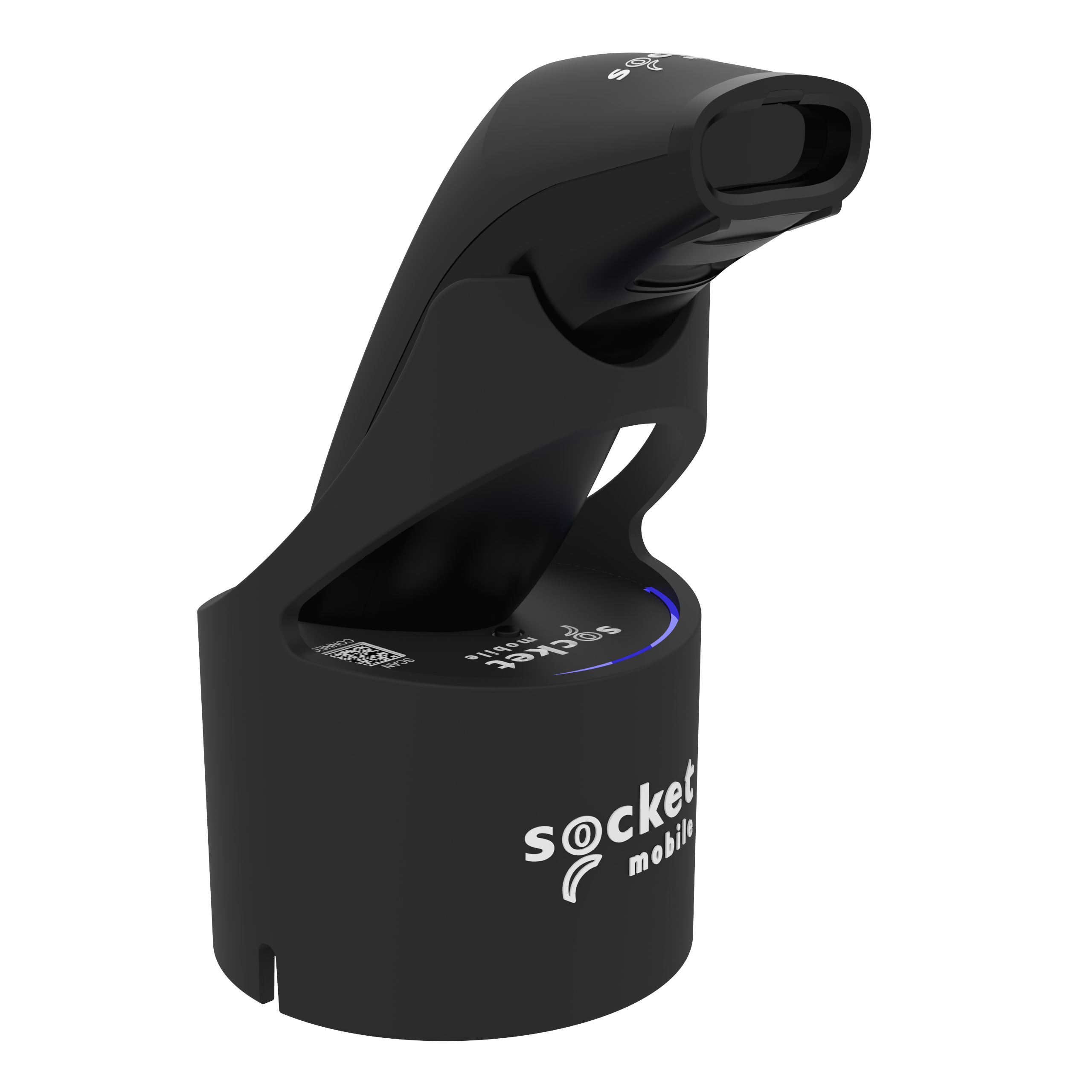

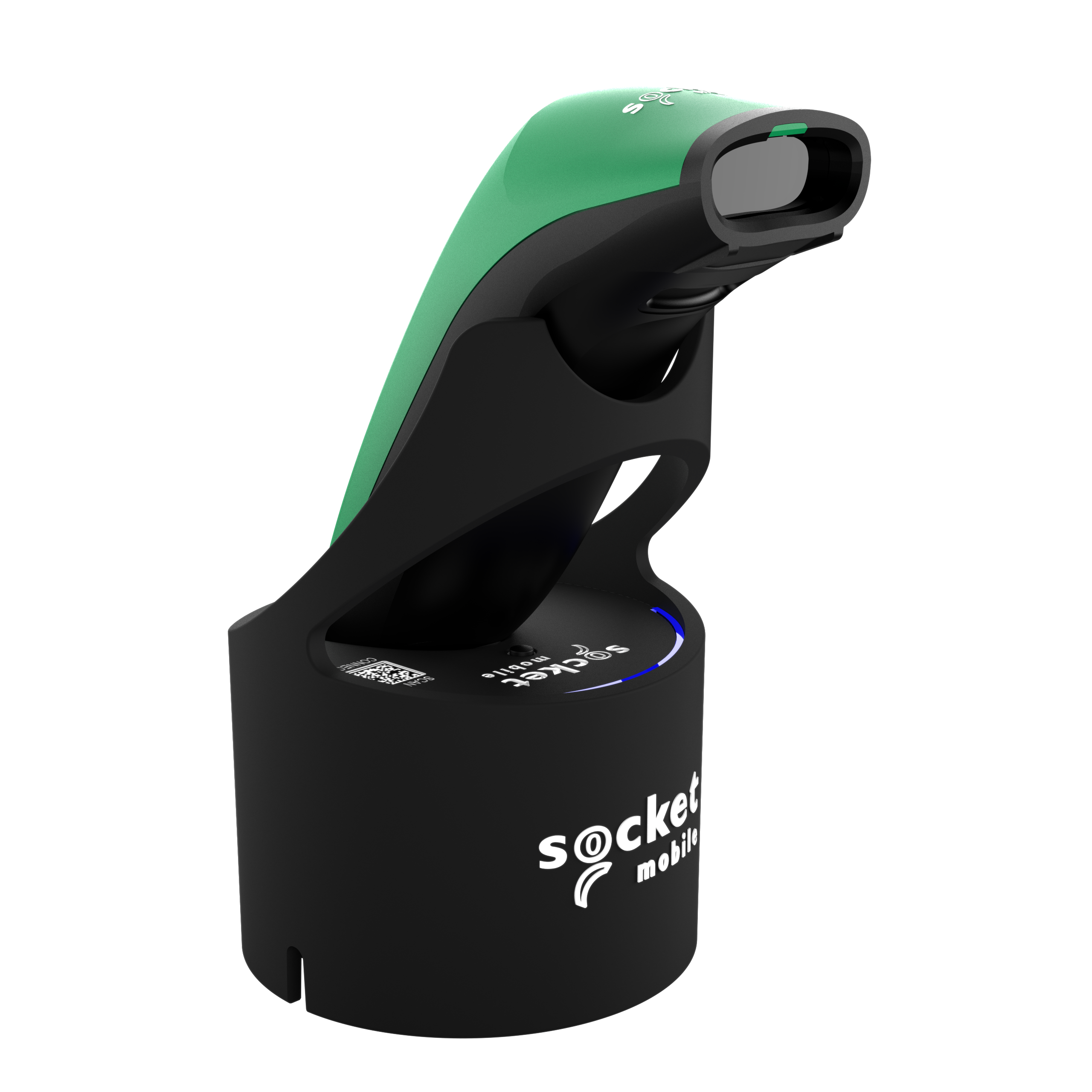

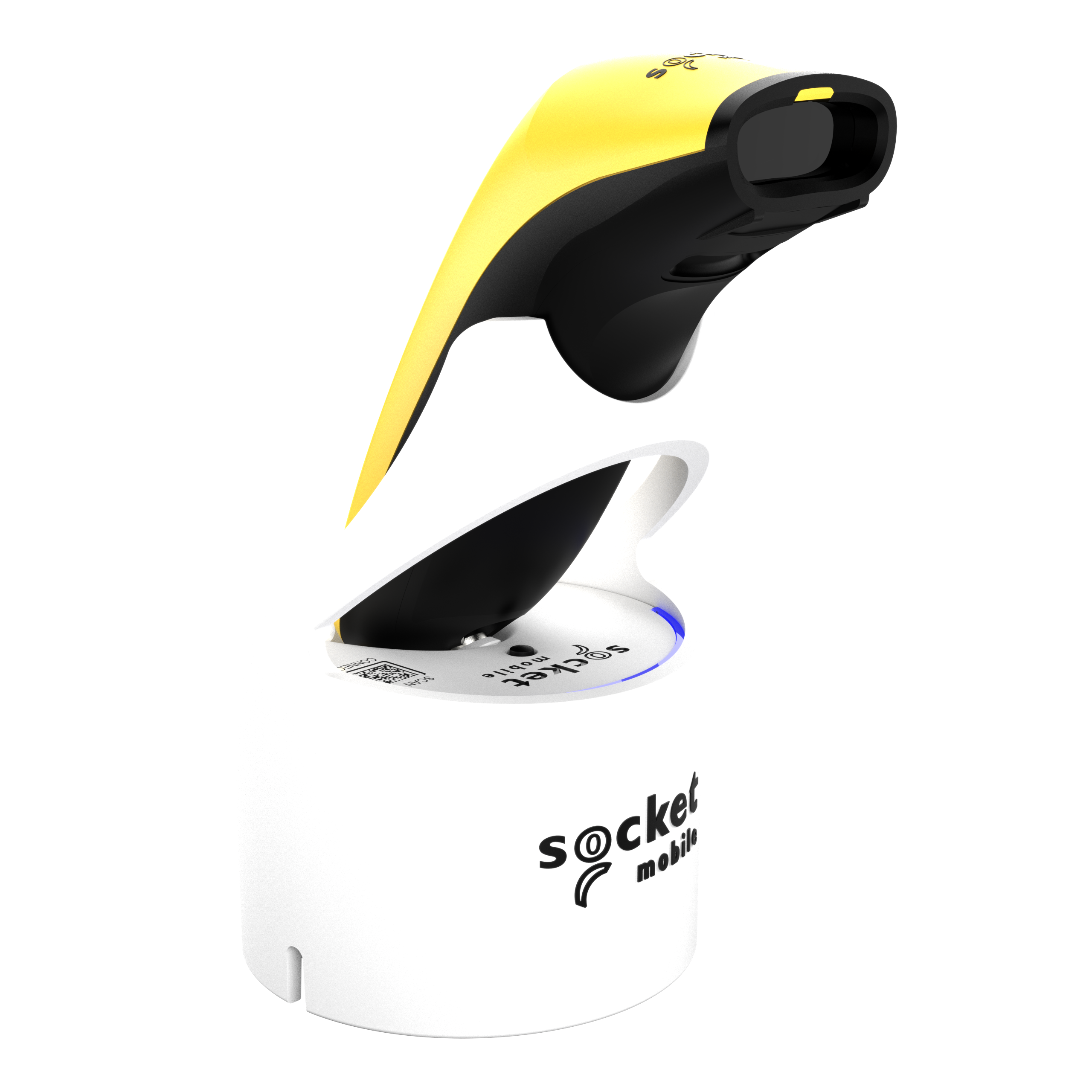

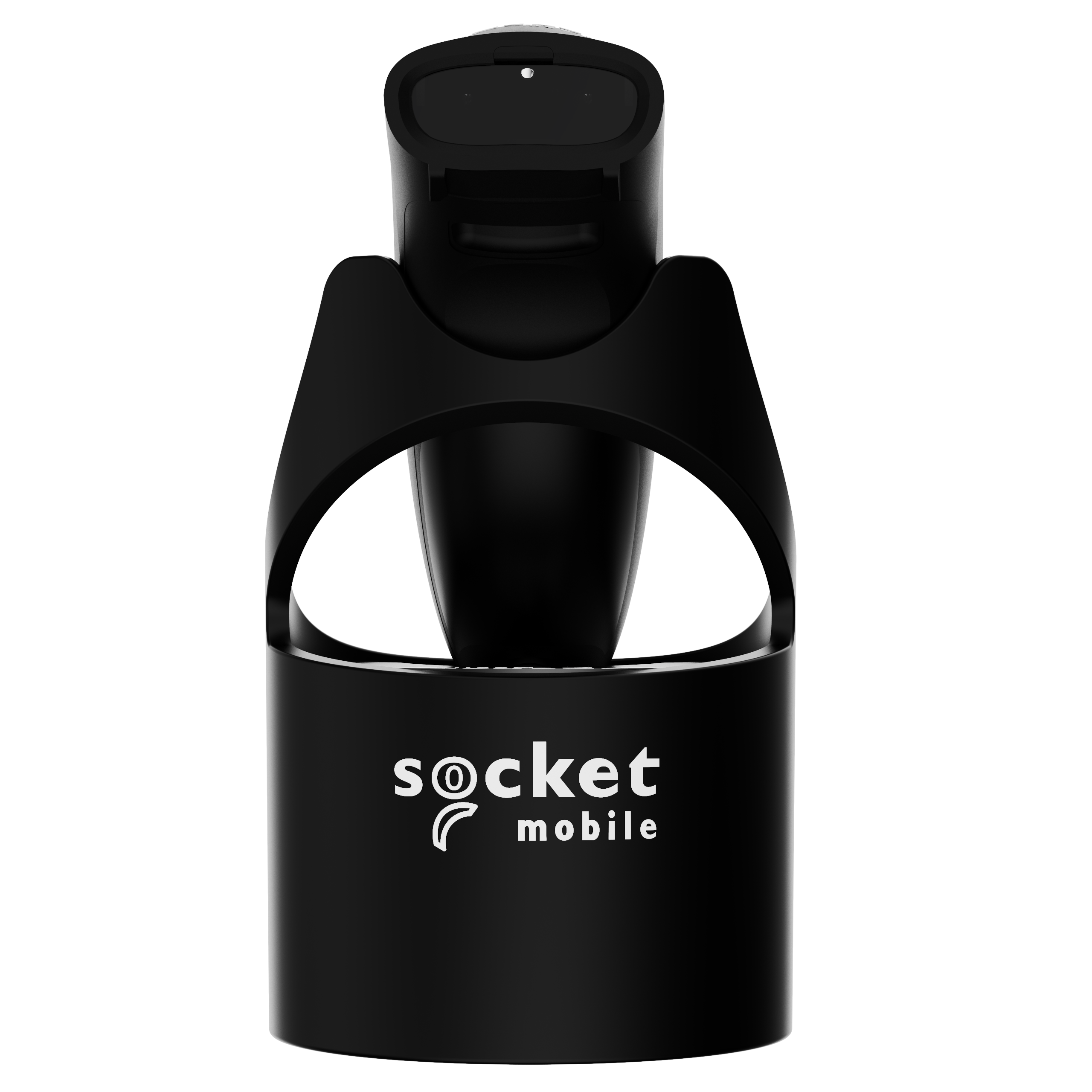

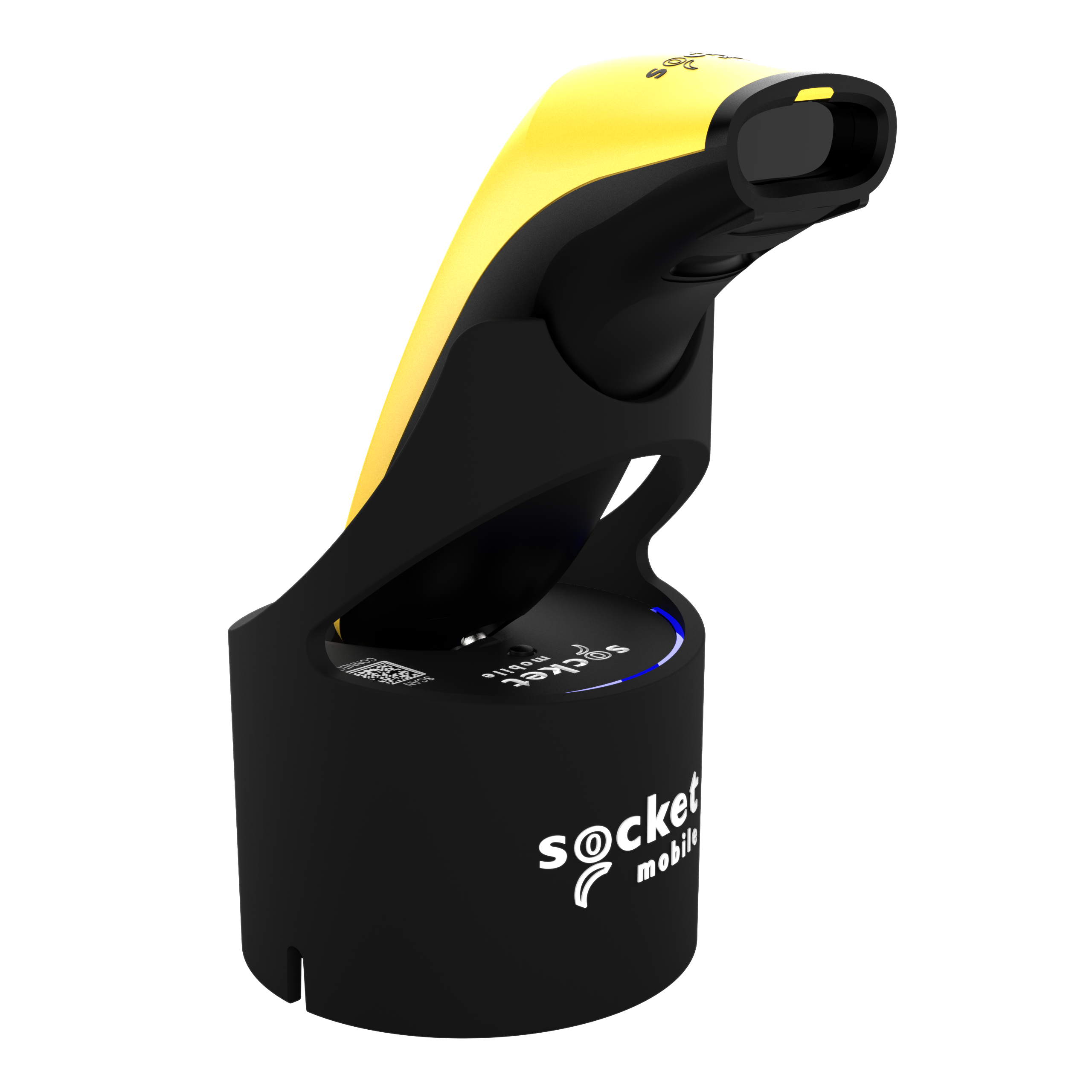

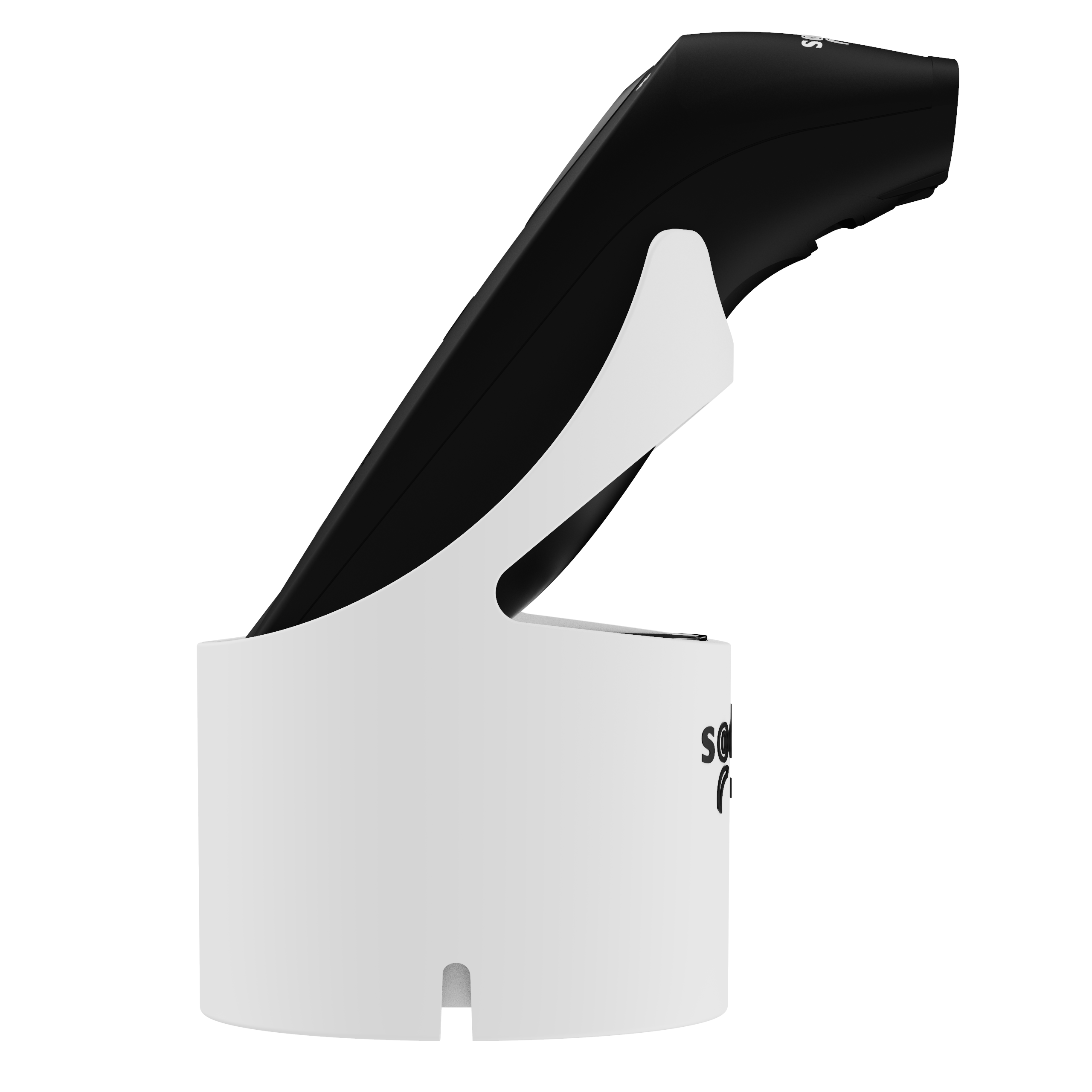

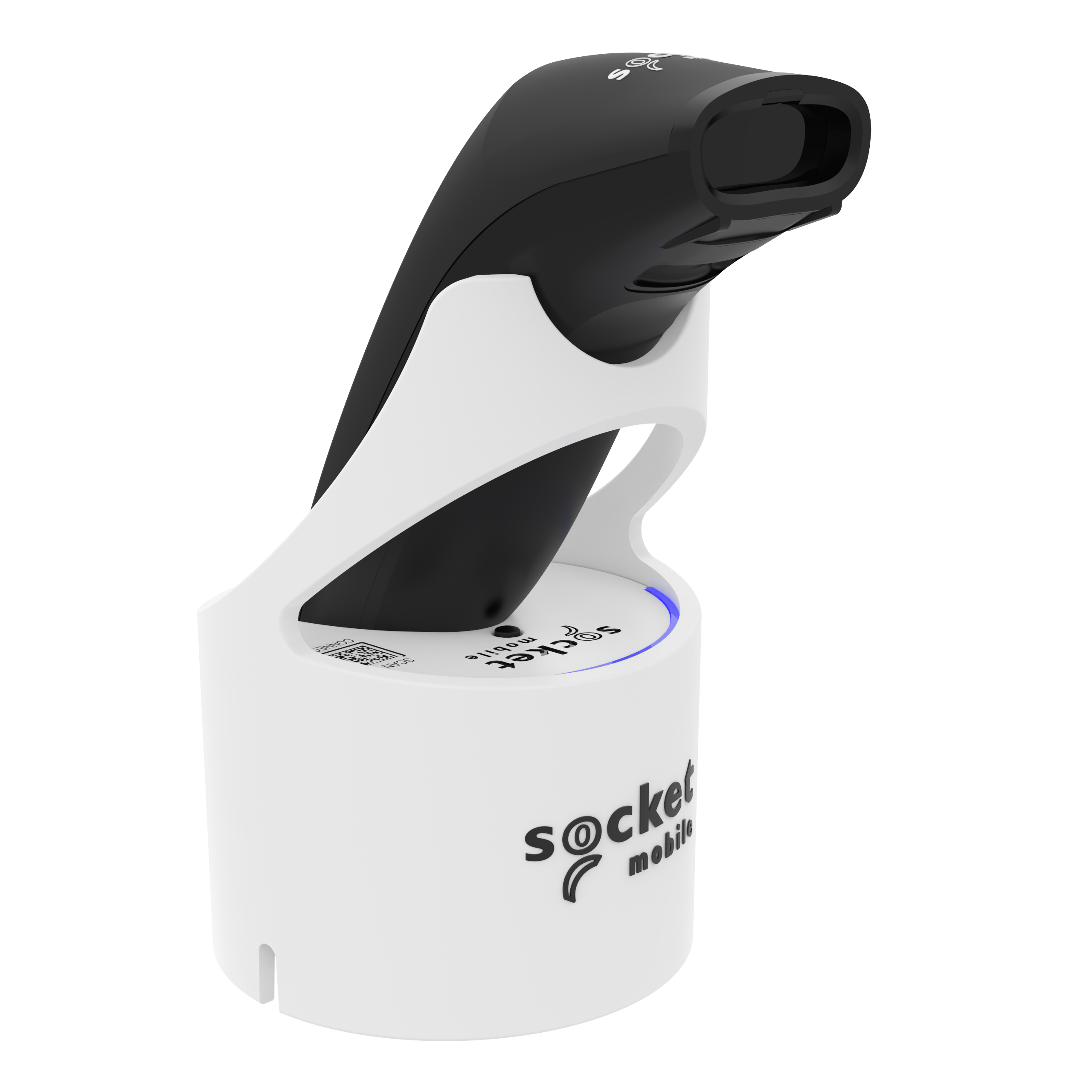

Scanner + Charging Dock – Charge your reader while keeping it available for active use.

Features

Multi-Device Compatibility
Apple^® Certified for iOS devices (iPhone^®, iPad^®) and compatible with Android^® and Windows^® 11.
Rapid Scanning
Fast 1D/2D scanning for both printed and on-screen barcodes, featuring omnidirectional capability for intuitive, rapid scanning.
Precision Crosshair Laser Aiming
Provides precise targeting for faster, more accurate barcode capture.
Bluetooth LE Support
Enables dependable, low-power wireless connectivity for extended battery life and fast pairing through Bluetooth Low Energy.
Long-Lasting Battery
Scanner features rechargeable and field-replaceable battery that lasts a full shift.
Intuitive User Indicators
LED lights that indicate successful data read/write and battery charging status.
Audible Feedback
Multiple feedback tones to indicate successful data read/write and other important action confirmations.
Haptic Feedback
Vibration alerts confirm successful scans and key actions.
Hands-Free Scanning
Automatically scans barcodes when set to Auto (Presentation) Mode and positioned in a dock or stand.
Scanning Trigger Life
The trigger is rated for 1 million actuations (trigger presses).
Ergonomic
Small, light, and fits perfectly in the hand for comfortable use over extended periods.
Easy App Integration
Socket Mobile's CaptureSDK (version 2.0.29 or higher) enables easy integration in your applications to improve business productivity with fast, efficient, and reliable data transfer over Bluetooth wireless technology. Data reader works out of the box for apps that have already integrated CaptureSDK, with support for Bluetooth LE devices.
Developer Support
Our support team is available to assist with set-up and operation.
1-Year Warranty Included
Extended warranty options also available.
Designed and Assembled in the USA
Socket mobile data readers are built at our headquarters in Fremont, CA.

Dimensions

External Control

a. Barcode LED

b. Battery LED

c. Bluetooth LED

d. Scan button

e. Power button

f. Charge indicator LED

g. Scan window

h. Battery door

i. Pins for Charging Dock/Stand

Reading Performance

Default Barcode Symbologies

1D Symbologies: Bookland Ean, Codabar, Code 128, Code 39, Code 93, Ean Jan 13, Ean Jan 8, Gs1 128, Gs1 Databar Expanded, Gs1 Databar Limited, Gs1 Databar Omnidirectional, Interleaved 2 5, Isbt 128 Udi, Trioptic, Upc A, Upc E,
2D Symbologies: Aztec, Composite, Data Matrix, Gs1 Data Matrix, Gs1 Qr, Han Xin, Maxicode, Micropdf417, Micro Qr, Pdf417, Qr,

Learn how to enable and disable data types.

Supported Barcode Symbologies

1D Symbologies: Code 11,
Postal Codes: Australia Post, Japan Postal, Mailmark, Netherlands Kix, Uk Postal, Us Planet, Us Postnet, Usps 4Cb One Intelligent Mail,
OCR Typeface: Ocr A, Ocr B,

Learn how to enable and disable data types.

Reading Distance

0.6 in. to 20 in. (1.5 to 50.8 cm) Depends on barcode size, symbology, label media

	Near	Far
5 mil Code 39	1.10 in / 2.8 cm	6.54 in / 16.6 cm
6.67 mil PDF417	0.91 in / 2.3 cm	7.05 in / 17.9 cm
10 mil DataMatrix	1.22 in / 3.1 cm	7.48 in / 19.0 cm
13 mil UPC-A	1.50 in / 3.8 cm	20.04 in / 50.9 cm
15 mil QR	0.59 in / 1.5 cm	11.06 in / 28.1 cm

Battery Information

Battery Type	2 rechargeable NiMh (replaceable battery)
Charge Time	~6 Hours
Life of battery	500 charge-discharge cycles
Life per full charge	Standby time: Over 20 hours Active Scan Time: 70,000 scans within 9 hours based on two scans every 1 second 12,000 scans within 15 hours based on one scan every 4 seconds
Battery weight	54.5g
Percentage lithium	N/A
mAh	2000 mAh
Cells per battery	1
Watts per battery	2.4
Cell type	AA
Chemical composition	Nickel Metal Hydride
Lithium content	N/A
Voltage	2.4v
Hazmat UN Number	N/A
ROHS Compliance	Yes, on the battery & data reader
Country of origin	China
Commodity code	8507.50.0000

Bluetooth Information

Bluetooth Radio	Bluetooth LE
Bluetooth Range	Up to 10 meters (33 ft.), depending on the environment. The range limit is usually due to the Host Device (phone, tablet, or notebook).
Bluetooth Profiles	Application Mode - requires a compatible app with Socket Mobile CaptureSDK

Operating Systems

Packaging

Data Reader with Charging Dock

Data Reader
Charging Dock (If selected)
Wrist Strap
Get Started Guide

Data Reader with Charging Stand

Data Reader
Charging Stand (If selected)
Wrist Strap
Get Started Guide

Common Uses

User Environments

Ambient Light	From 0 to 100 000 lux. From pitch black to direct sunlight.
Charging Temperature	Charging in an ambient temperature above 40° C / 100° F may result in charging issues.
Drop Specifications	4 ft. drop to linoleum.
Operating Temperature	0° to 45° C (32° to 113° F)
Relative Humidity	95% at 60° C (140° F) (non-condensing)
Storage Temperature	-40° to 70° C (-40° to 158° F)
Tumble Specification	2,500 cycles at 3.3 ft. (1 m) to a metal plate, IEC6008-2-31, IEC60068-2-32 3.
