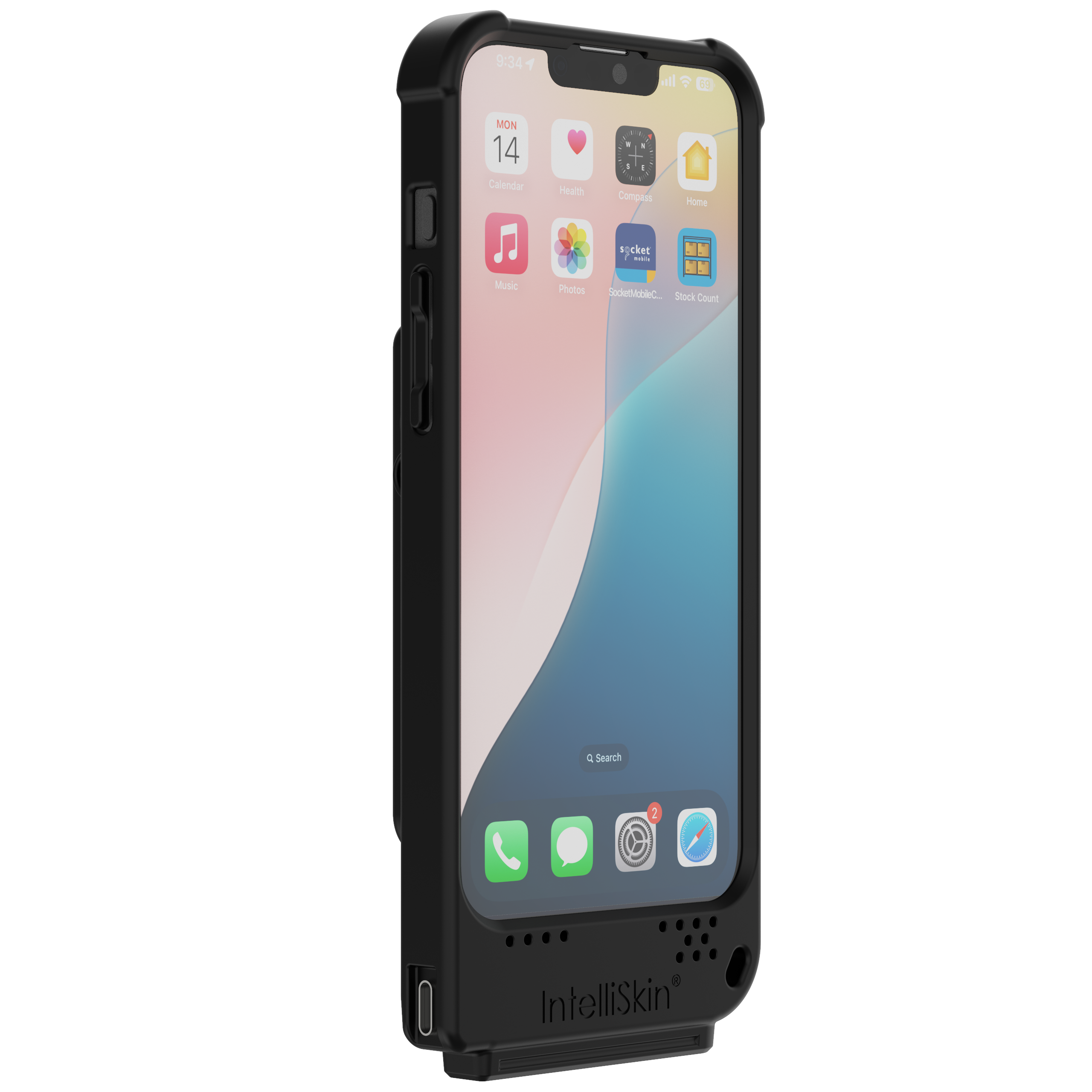

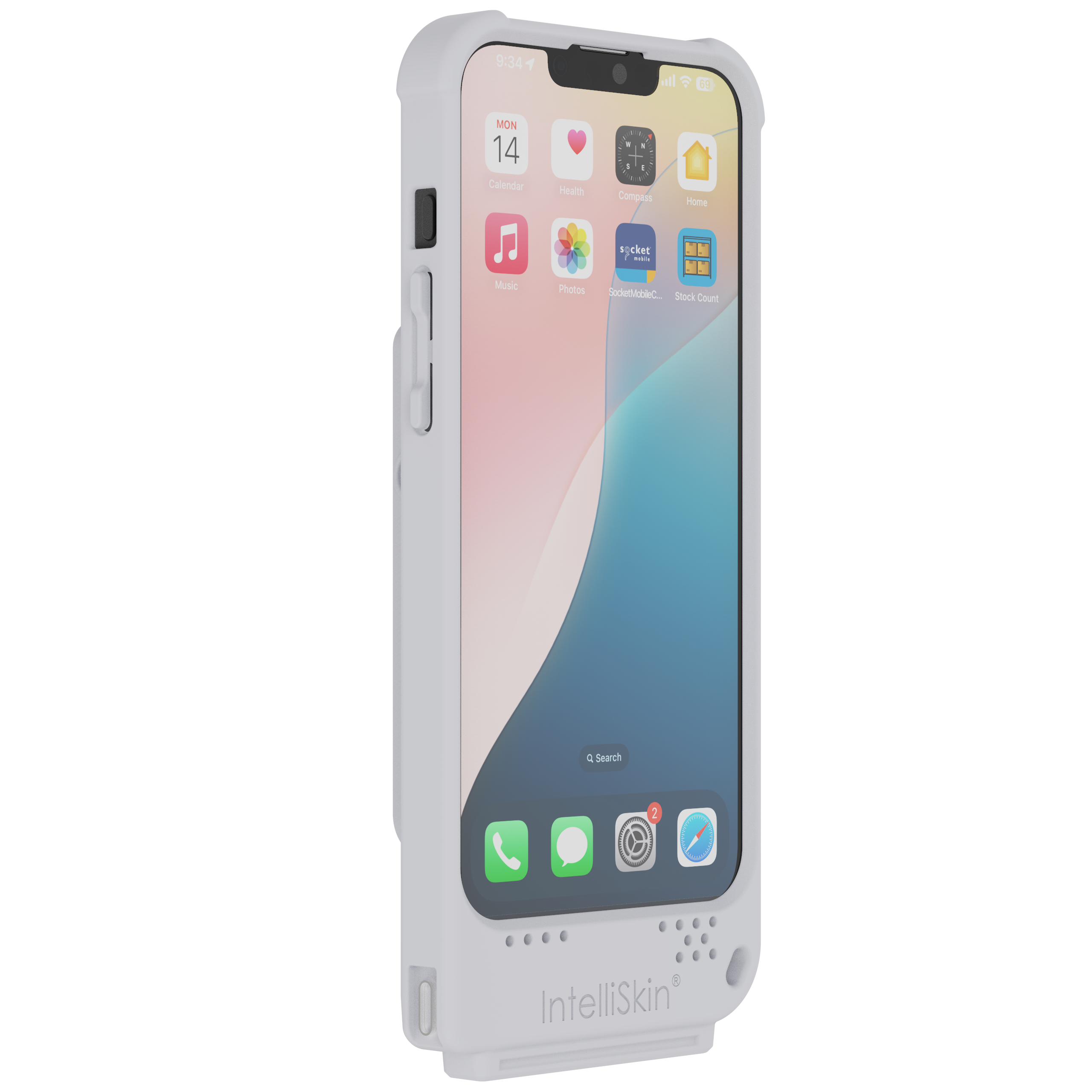

The DuraSled iDS800 is a fully integrated handheld computer that provides everything you need for mobile barcode scanning in one compact package. By combining a DuraSled scanner with a pre-installed iPhone 16e, the iDS800 offers a powerful iOS-based data capture solution that is ready to set up, connect, and deploy. It is an excellent choice for retail, delivery, stock counting, ticketing, and other application-driven mobile tasks.
With fast, reliable 1D scanning for both printed and digital barcodes, the iDS800 helps workers quickly capture data in various settings, from shipping labels and inventory tags to mobile coupons and customer cards. The sled's durable rubberized housing protects the scanner and integrated iPhone against drops and daily wear, making it well-suited for demanding work environments. The scanner features a rechargeable, field-replaceable battery that ensures all-day performance without interruption.
Designed for comfort and usability, the iDS800 enhances the intuitive iOS experience with ergonomic, one-handed scanning operation and seamless Bluetooth or direct app integration through Socket Mobile's CaptureSDK. Whether managing inventory, making deliveries, processing transactions, or tracking assets, the iDS800 delivers the power of enterprise scanning with the flexibility of an Apple-powered device, all in one rugged, mobile-ready tool.
-
Integrated iPhone Included
Comes with a factory-new 128GB iPhone 16e, featuring a 6.1-inch Super Retina XDR display, Apple Intelligence, and the power of the iOS platform. Pre-installed and ready to setup, connect, and deploy.
-
Rapid Scanning
Fast 1D scanning for both printed and on-screen barcodes.
-
Durable Casing
Rubber material for increased protection from drops.
-
Bluetooth Classic Wireless Integration
Dependable Bluetooth connection to host devices.
-
Long-Lasting Battery
Scanner features rechargeable and field-replaceable battery that lasts a full shift.
-
Intuitive User Indicators
LED lights that indicate successful scanning and battery charging status.
-
Audible Feedback
Multiple feedback tones to indicate successful scans/reads and other important action confirmations.
-
Easy App Integration
Socket Mobile's Capture SDK enables easy integration in your applications to improve business productivity with fast, efficient, and reliable data transfer over Bluetooth wireless technology. Data reader works out of the box for apps that have already integrated CaptureSDK.
-
Developer Support
Our support team is available to assist with set-up and operation.
-
1-Year Warranty Included
Extended warranty options also available.
-
Designed and Assembled in the USA
All socket mobile data readers are built at our headquarters in Fremont, CA.
- Bluetooth LED
- Scan Button
- Wriststrap eyelet
- Scan & Battery LED Indicator
- Power Button (iOS on-screen keyboard button in Basic Mode)
- USB-C Connector
- Power Connector
- Battery door for field replaceable battery
- Charging Connector
- Wriststrap eyelet
| Default Barcode Symbologies |
|
|||||||||||||||
| Supported Barcode Symbologies |
Learn how to enable and disable data types. |
|||||||||||||||
| Print Contrast | Down to 25%-20% |
|||||||||||||||
| Decode Ranges | 3.5 to 41 cm (1.4 to 16.1 in) Resolution Depends on barcode size, symbology, label media.
|
|||||||||||||||
| Scan Angle | 53° |
|||||||||||||||
| Optical Resolution | 5 mil/0.1 mm |
|||||||||||||||
| Reading Distance |
|
| Battery Type | 1 rechargeable Lithium Ion Polymer (replaceable battery) |
| Charge Time | 8 Hours |
| Life of battery | 500 charge-discharge cycles |
| Life per full charge | Standby time: 25 hours Active Scan Time: 10,000 scans within 11 hours (based on one scan every 4 seconds) Note: Battery life varies depending on ambient temperature, ambient light, and the age of the battery. |
| Battery weight | 12.5g |
| Percentage lithium | 36.3% |
| mAh | 700 |
| Cells per battery | 1 |
| Watts per battery | 2.59 |
| Cell type | Proprietary |
| Chemical composition | Lithium - polymer |
| Lithium content | 4.5g |
| Voltage | 3.7v |
| Hazmat UN Number | UN3481, P.I. 967 |
| ROHS Compliance | Yes, Included with Scanner |
| Country of origin | China |
| Commodity code | 8507.60.0000 |
Some Operating Systems or smartphone/tablet models may support only one profile. |
|
|
Class 2 Bluetooth, version 2.1 + EDR (Enhanced Data Rates) with 56-bit data encryption |
|
|
Up to 10 meters (33 ft.), depending on the environment. The range limit is usually due to the Host Device (phone, tablet, or notebook). |
Data Reader with Charging Cable
- Data Reader
- Klip
- Wrist Strap
- Charging Cable
- Get Started Guide

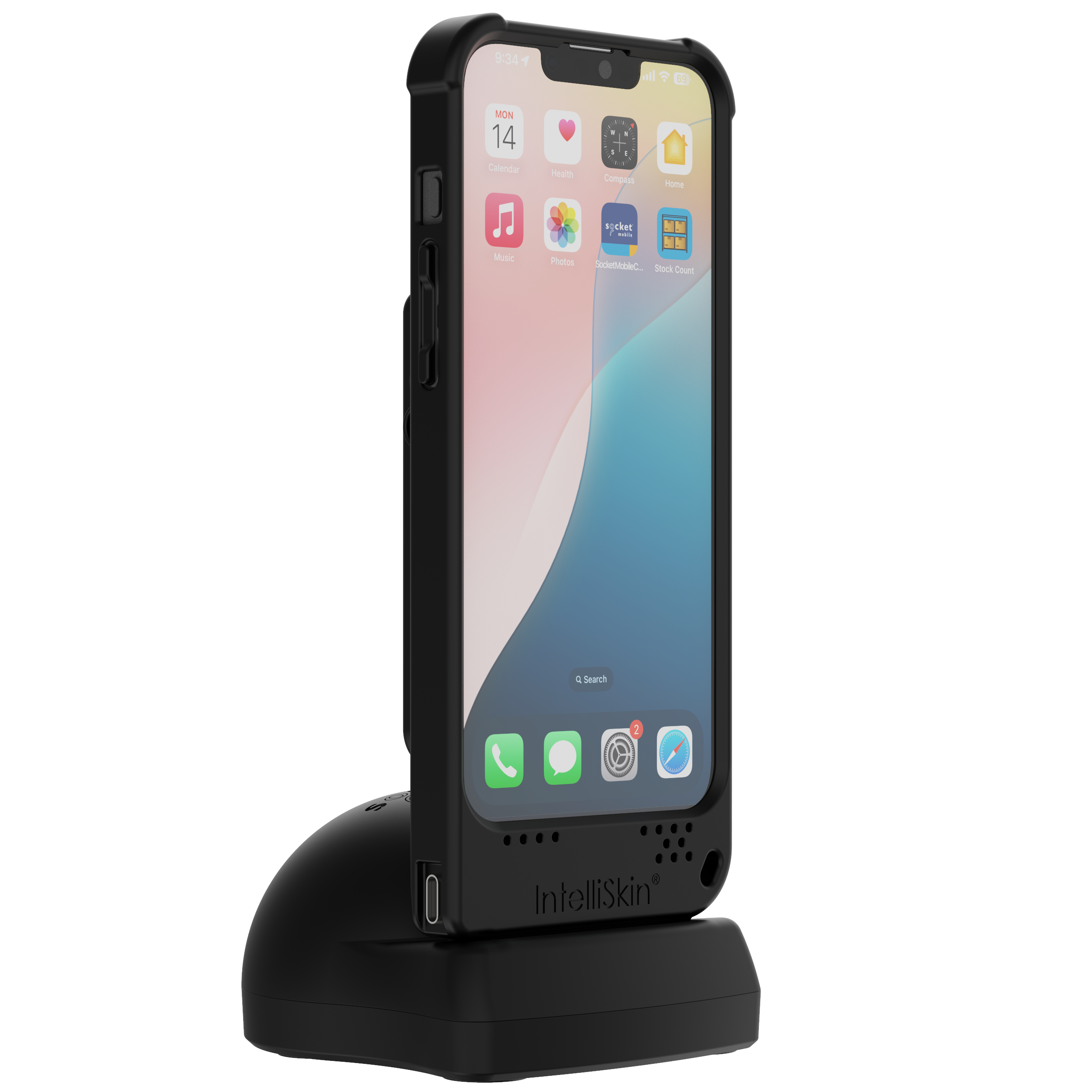

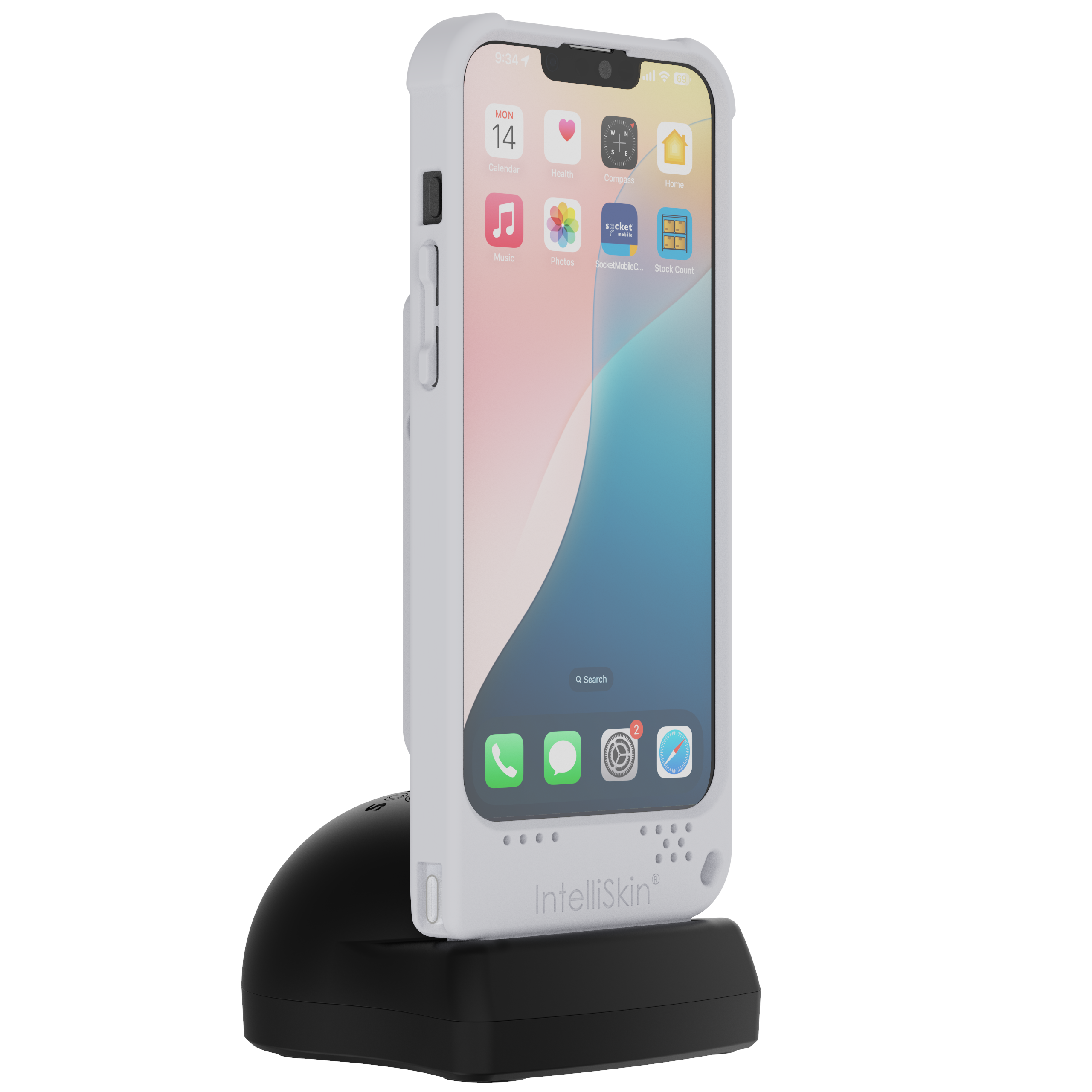

Data Reader with Charging Dock
- Data Reader
- Klip
- Wrist Strap
- Charging Dock (If selected)
- Get Started Guide

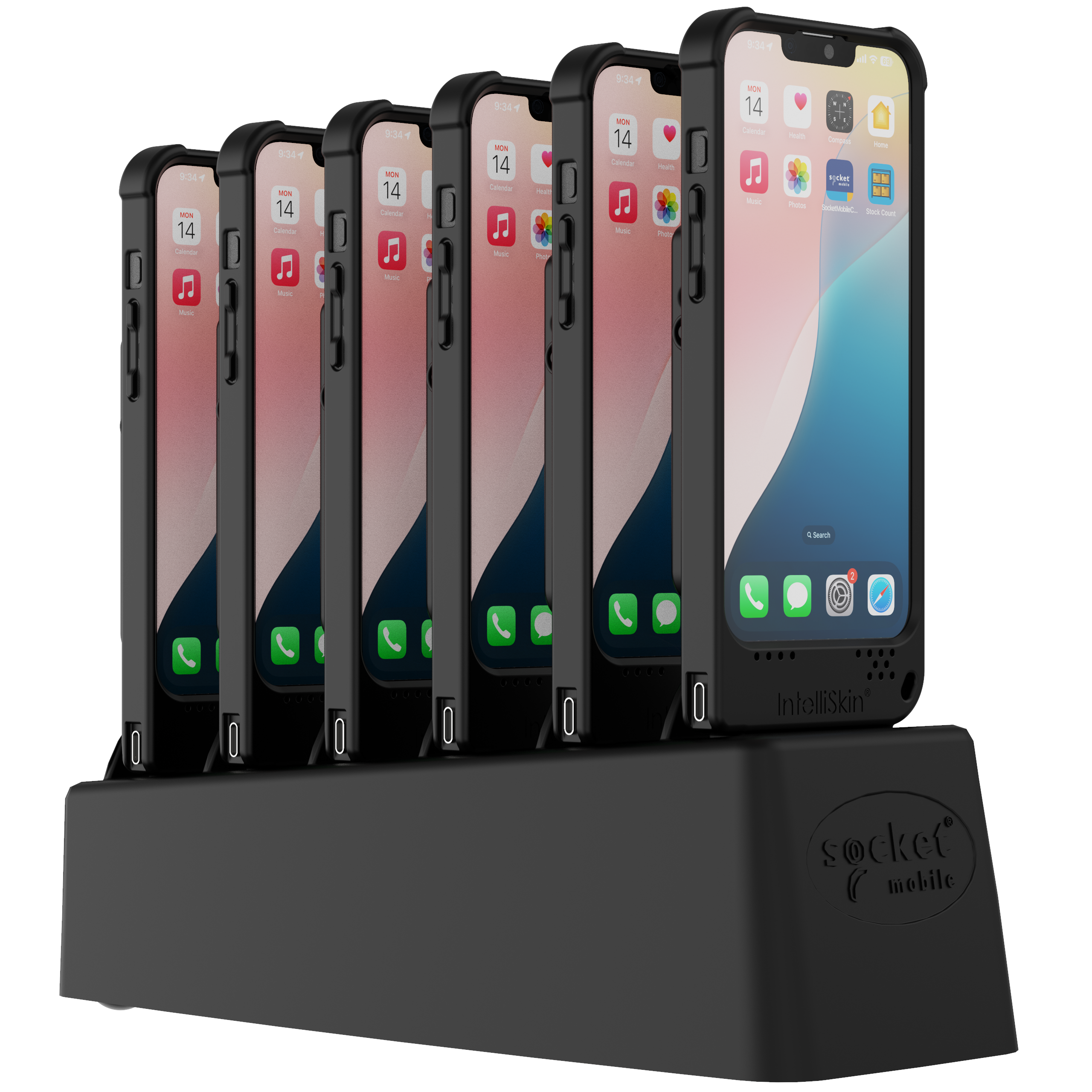

Data Reader with 6 Bay Charger
- Data Reader
- Klip
- Wrist Strap
- 6 Bay Charger (If selected)
- Get Started Guide
|
From 0 to 100 000 lux. From pitch black to direct sunlight. |
|
|
Charging in an ambient temperature above 40° C / 100° F may result in charging issues. |
|
|
0° to 45° C (32° to 113° F) |
|
|
-40° to 70° C (-40° to 158° F) |
|
|
95% at 60° C (140° F) (non-condensing) |
|
|
2,500 cycles at 3.3 ft. (1 m) to a metal plate, IEC6008-2-31, IEC60068-2-32 3. |
Bluetooth SIG:
- Declaration ID: D030473
- QDID: 82009
Electrical Safety:
- Certified to IEC 60950-1
- UL 60950-1
- CAN/CSA C22.2
Environmental:
- RoHS EN 50581
EMI / RFI:
- FCC Part 15 Class C, RSS 210, iCES 003, C-Tick, CISPR 22, CE EN55022, EN55024
- TELEC: R201-125709
- FCC ID: LUBMA41
- IC ID: 2529A-MA41S8
LED Safety:
- IEC/EN 62471 (Exempt Group)
