This product uses a Bluetooth LE (Low Energy) connection method that is different from our Bluetooth Classic data readers and requires a supported software application. Before purchasing, please confirm your app uses the latest version of Socket Mobile's CaptureSDK or contact us to discuss your requirements.
The XtremeScan 941 combines a military-grade iPhone case with a high-performance short-range barcode scanner to create a compact and durable industrial tool. Designed for fast-paced environments such as warehousing, manufacturing, and field service, the 941 helps mobile workers capture barcodes quickly and consistently during daily operations.
With a dependable scan range of up to 20 inches, the 941 is ideal for close to mid-range tasks including inventory labeling, order picking, package verification, and asset tracking. Its omnidirectional scanning capabilities support quick reads from any angle, and the built-in precision aimer assists with confident targeting in various lighting conditions.
The IP67-sealed XtremeScan housing protects the iPhone from dust, water, and drops, making it ready for the rigors of industrial use. The iPhone remains secure and protected throughout the workday, and users can still access the phone’s native camera without removing it from the case. Bluetooth® Low Energy (LE) connectivity maintains a reliable connection while reducing power consumption, and the high-capacity battery supports full-shift operation without interruptions.
Available Configurations
- XtremeScan XS941 (Standard Handheld):

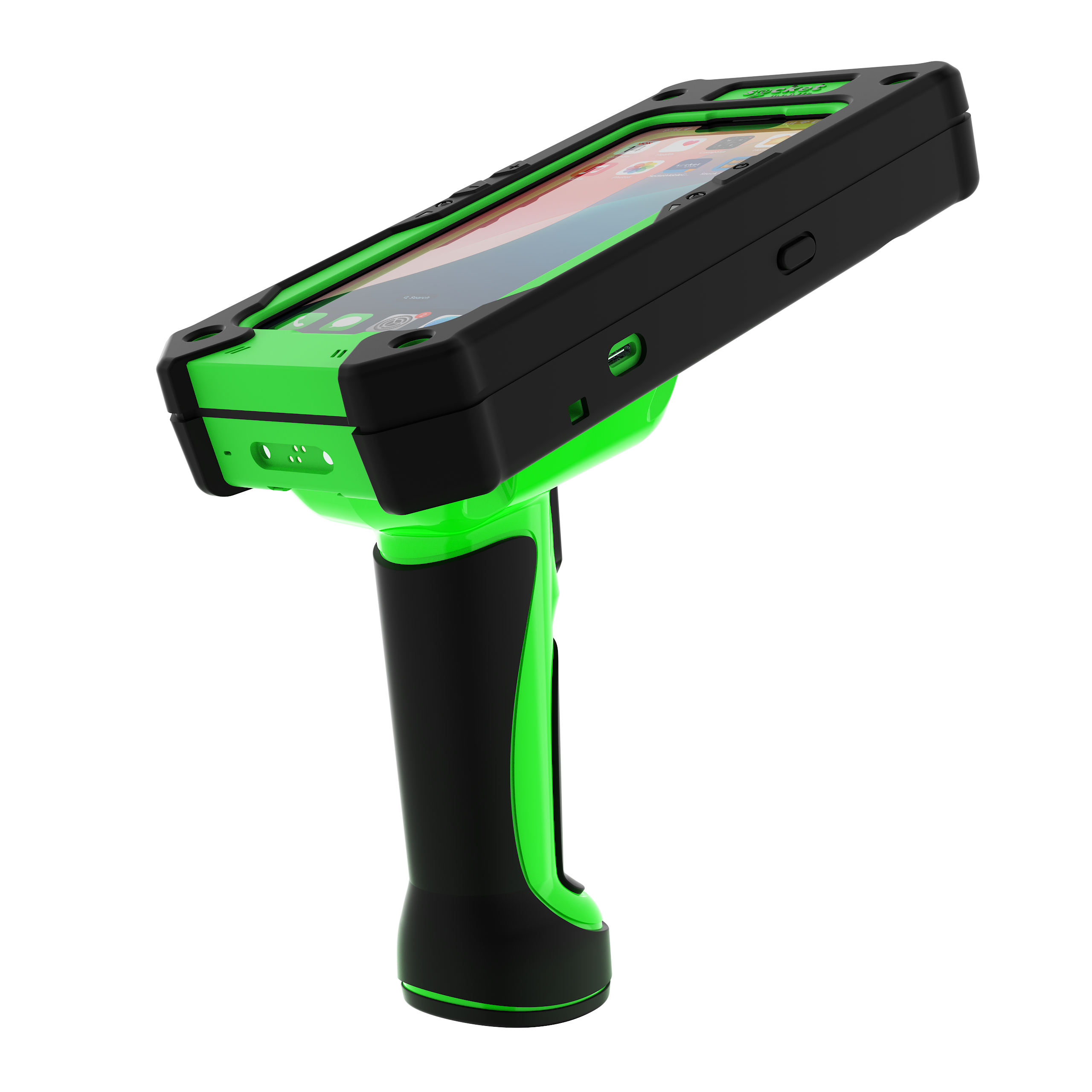

Rugged handheld scanner with an integrated military-grade iPhone® case. Ideal for users who need a fully protected, all-in-one device that’s compact, lightweight, and easy to maneuver. - XtremeScan Grip XG941 (with Pistol Grip Handle):
Same as the standard model, but includes an ergonomic pistol grip handle for enhanced comfort and control during scan-intensive tasks or long shifts. The handle supports one-handed, point-and-shoot scanning without sacrificing mobility.
Optional Upgrade:
All configurations are available with a factory-new, pre-installed 128GB iPhone® 16e. This upgrade delivers a fully assembled industrial data capture solution, enabling faster deployment and minimizing setup complexity in the field.
Available in the following bundles
-
Rapid Scanning
Fast 1D/2D scanning for both printed and on-screen barcodes, featuring omnidirectional capability for intuitive, rapid scanning.
-
Advanced Decoding
Accurately captures data from scratched, damaged, smudged, or low-contrast barcodes, helping to reduce failed scans, minimize delays, and increase productivity when working in challenging environments.
-
Rugged Design
Built to withstand drops and harsh environments, with an IP67 sealed housing for protection from dust, water exposure, and water immersion.
- Scanning Range Scans barcodes ranging in size from 5 mil to 15 mil, at distances from 0.6 inches up to 20 inches.
- Precision Aimer High-visibility aimer ensures fast, accurate barcode targeting across various distances.
-
One-Handed Solution
Easily combine the mobile device and data reader for a one-handed scanning solution.
-
Bluetooth LE Support
Enables dependable, low-power wireless connectivity for extended battery life and fast pairing through Bluetooth Low Energy.
-
Long-Lasting Battery
Scanner features rechargeable and field-replaceable battery that lasts a full shift.
-
Intuitive User Indicators
LED lights that indicate successful data read/write and battery charging status.
-
Audible Feedback
Multiple feedback tones to indicate successful data read/write and other important action confirmations.
-
Easy App Integration
Socket Mobile's CaptureSDK (version 2.0.29 or higher) enables easy integration in your applications to improve business productivity with fast, efficient, and reliable data transfer over Bluetooth wireless technology. Data reader works out of the box for apps that have already integrated CaptureSDK, with support for Bluetooth LE devices.
-
1-Year Warranty Included
Extended warranty options also available.
-
Designed and Assembled in the USA
Socket mobile data readers are built at our headquarters in Fremont, CA.
| Default Barcode Symbologies |
Learn how to enable and disable data types. |
||||||||||||||||||
| Supported Barcode Symbologies |
Learn how to enable and disable data types. |
||||||||||||||||||
| Short Range | Reading Distance: 0.6 in. to 20 in. (1.5 to 50.8 cm) Depends on barcode size, symbology, label media
|
| Battery Type | 1 rechargeable Lithium Ion Polymer (replaceable battery) |
| Charge Time | 8 Hours |
| Life of battery | 500 charge-discharge cycles |
| Life per full charge | Standby time: 25 hours Active Scan Time: 10,000 scans within 11 hours (based on one scan every 4 seconds) Note: Battery life varies depending on ambient temperature, ambient light, and the age of the battery. |
| Battery weight | 12.5g |
| Percentage lithium | 36.3% |
| mAh | 700 |
| Cells per battery | 1 |
| Watts per battery | 2.59 |
| Cell type | Proprietary |
| Chemical composition | Lithium - polymer |
| Lithium content | 4.5g |
| Voltage | 3.7v |
| Hazmat UN Number | UN3481, P.I. 967 |
| ROHS Compliance | Yes, Included with Scanner |
| Country of origin | China |
| Commodity code | 8507.60.0000 |
|
|
|
Bluetooth LE |
|
|
Up to 10 meters (33 ft.), depending on the environment. The range limit is usually due to the Host Device (phone, tablet, or notebook). |
- Data Reader
- Charging Cable with USB-C to USB-A adapter
- Get Started Guide
|
From 0 to 100 000 lux. From pitch black to direct sunlight. |
|
|
Charging in an ambient temperature above 40° C / 100° F may result in charging issues. |
|
|
Standard:
Freezer:
|
|
|
0° to 45° C (32° to 113° F) |
|
|
95% at 60° C (140° F) (non-condensing) |
|
|
IP67 (Ingress protection rating for dust and water) meets IEC sealing and EN60529 specifications. |
|
|
-40° to 70° C (-40° to 158° F) |
|
|
2,500 cycles at 3.3 ft. (1 m) to a metal plate, IEC6008-2-31, IEC60068-2-32 3. |
Bluetooth SIG:
- Declaration ID: D030529
- QD ID: 82009
Electrical Safety:
- EN 62368-1:2020 + A11:2020
- IEC 62368-1:2018
- UL 62368-1:2019 R10.21
- CSA C22.2 NO. 62368-1:19
Environmental:
- RoHS EN 50581
EMI / RFI:
- FCC Part 15 Class C, RSS 210, iCES 003, C-Tick, CISPR 22, CE EN55022, EN55024
- TELEC:
- FCC ID: LUBMA41
- IC ID: 2529A-MA41M9
LED Safety:
- IEC 60825-1
- EN 60825-1
