Includes the iPhone 16e.
The XtremeScan Grip iXG930 is a complete handheld computing device that merges a pre-installed iPhone 16e, industrial 1D laser scanner, military-grade case, and ergonomic pistol grip into a single, powerful, ready to set up, connect, and deploy scanning solution. Designed for tough environments like warehousing, logistics, field service, and manufacturing, the iXG930 provides comfort, durability, and top-tier scanning accuracy in one streamlined package. It enhances the capabilities of the iPhone 16e, enabling it to withstand harsh conditions while providing seamless connectivity and access to the user-friendly iOS platform.
Its class 2 laser scanning engine delivers high-speed performance across challenging conditions, easily reading 1D barcodes through plastic or glass, in low or bright lighting, and even at awkward angles. With a scanning range from 1.2 inches to 15 feet, it's ideal for reading barcodes on floor-level items or high shelves. The highly visible LED aimer ensures precise targeting, even on damaged or imperfect barcodes.
The integrated iPhone 16e is housed in a rugged, IP67-rated enclosure, offering industrial-grade durability against dust, water, drops, and daily wear. The integrated wireless charging system eliminates the need to remove the iPhone, ensuring seamless power management and protection throughout the workday. The ergonomic pistol grip enhances comfort and control during long shifts, making the iXG930 ideal for professionals who need performance, protection, and iOS-based flexibility all in one package.
-
Integrated iPhone Included
Comes with a factory-new 128GB iPhone 16e, featuring a 6.1-inch Super Retina XDR display, Apple Intelligence, and the power of the iOS platform. Pre-installed and ready to setup, connect, and deploy.
-
Rapid Scanning
Fast 1D laser scanning for printed barcodes featuring a high-performance Class 2 laser. Ideal for moderate to rigorous scanning applications, handles thousands of scans per day and operates at distances of up to 180" (457.2 cm), depending on barcode size and quality.
-
Rugged Design
Built to withstand drops and harsh environments, with an IP67 sealed housing for protection from dust, water exposure, and water immersion.
-
Pistol Grip Handle
Comfortable point-and-shoot barcode reading.
-
One-Handed Solution
Easily combine the mobile device and data reader for a one-handed scanning solution.
-
Bluetooth Wireless Integration
Dependable Bluetooth connection to host devices.
-
Long-Lasting Battery
Features rechargeable and field-replaceable battery that lasts a full shift.
-
Intuitive User Indicators
LED lights that indicate successful scanning and battery charging status.
-
Audible Feedback
Multiple feedback tones to indicate successful scans/reads and other important action confirmations.
-
Easy App Integration
Socket Mobile's Capture SDK enables easy integration in your applications to improve business productivity with fast, efficient, and reliable data transfer over Bluetooth wireless technology. Data reader works out of the box for apps that have already integrated CaptureSDK.
-

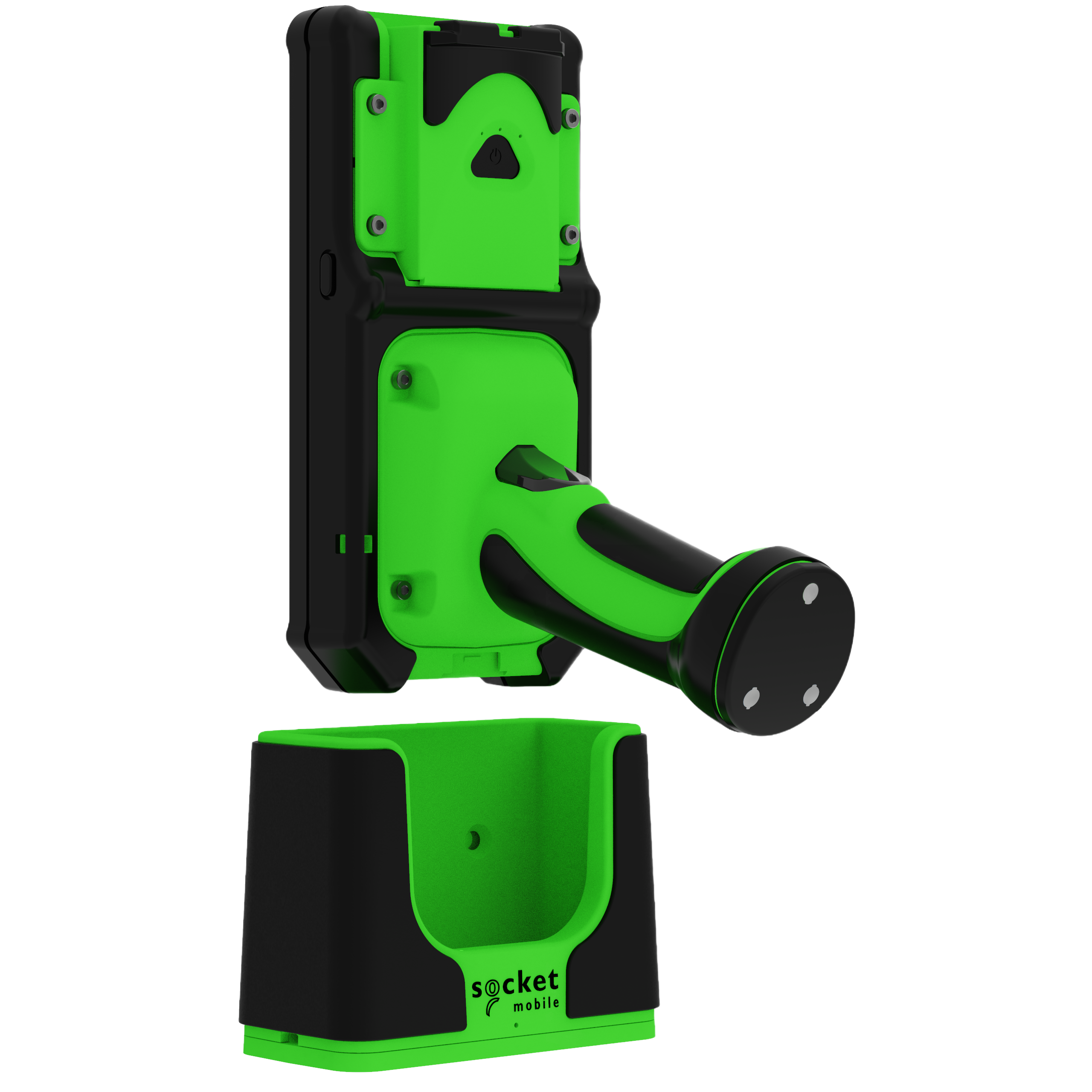

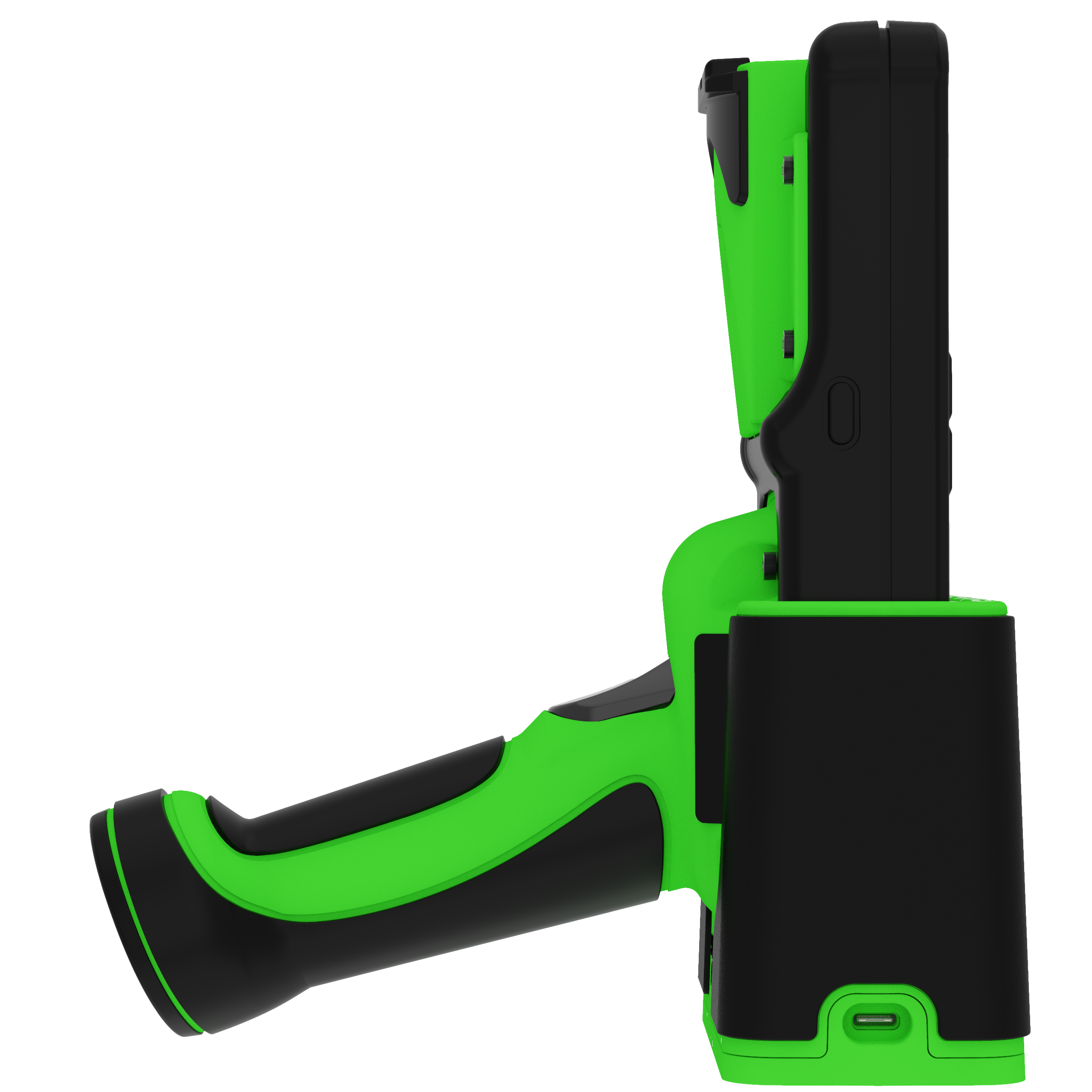

Charging
Case charges both devices (Apple iPhone & Socket Mobile scanner).
-
LED Aimer
Bright, rectangular illumination field with LED pointer for precise aiming.
-
Developer Support
Our support team is available to assist with set-up and operation.
-
Designed and Assembled in the USA
All socket mobile data readers are built at our headquarters in Fremont, CA.
-
1-Year Warranty Included
Extended warranty options also available.
| Default Barcode Symbologies |
|
||||||||||||||||||||||||||||||
| Supported Barcode Symbologies |
Learn how to enable and disable data types. |
||||||||||||||||||||||||||||||
| Optical Resolution | 0.005 in. Minimum element width |
||||||||||||||||||||||||||||||
| Print Contrast | Minimum 25% absolute dark/light Reflectance measured at 650 nm. |
||||||||||||||||||||||||||||||
| Scan Angle | Wide: 47° (Default) Medium: 35°Narrow: 10° |
||||||||||||||||||||||||||||||
| Reading Distance |
|
||||||||||||||||||||||||||||||
| Decode Ranges | 1D codes 3.05 to 457.2 cm (1.2 in to 180 in). Depends on width and barcode size, symbology, label media.
|
| Battery Type | 1 rechargeable Lithium Ion Polymer (replaceable battery) |
| Charge Time | 8 Hours |
| Life of battery | 500 charge-discharge cycles |
| Life per full charge | Standby time: 25 hours Active Scan Time: 10,000 scans within 11 hours (based on one scan every 4 seconds) Note: Battery life varies depending on ambient temperature, ambient light, and the age of the battery. |
| Battery weight | 12.5g |
| Percentage lithium | 36.3% |
| mAh | 700 |
| Cells per battery | 1 |
| Watts per battery | 2.59 |
| Cell type | Proprietary |
| Chemical composition | Lithium - polymer |
| Lithium content | 4.5g |
| Voltage | 3.7v |
| Hazmat UN Number | UN3481, P.I. 967 |
| ROHS Compliance | Yes, Included with Scanner |
| Country of origin | China |
| Commodity code | 8507.60.0000 |
Some Operating Systems or smartphone/tablet models may support only one profile. |
|
|
Class 2 Bluetooth, version 2.1 + EDR (Enhanced Data Rates) with 56-bit data encryption |
|
|
Up to 10 meters (33 ft.), depending on the environment. The range limit is usually due to the Host Device (phone, tablet, or notebook). |
- Data Reader
- Apple iPhone 16e
- Charging Cable with USB-C to USB-A adapter
- Get Started Guide
|
From 0 to 100 000 lux. From pitch black to direct sunlight. |
|
|
Charging in an ambient temperature above 40° C / 100° F may result in charging issues. |
|
|
Standard:
Freezer:
|
|
|
0° to 45° C (32° to 113° F) |
|
|
95% at 60° C (140° F) (non-condensing) |
|
|
IP67 (Ingress protection rating for dust and water) meets IEC sealing and EN60529 specifications. |
|
|
-40° to 70° C (-40° to 158° F) |
Bluetooth SIG:
- Declaration ID: D030529
- QD ID: 82009
Electrical Safety:
- EN 62368-1:2020 + A11:2020
- IEC 62368-1:2018
- UL 62368-1:2019 R10.21
- CSA C22.2 NO. 62368-1:19
Environmental:
- RoHS EN 50581
EMI / RFI:
- FCC Part 15 Class C, RSS 210, iCES 003, C-Tick, CISPR 22, CE EN55022, EN55024
- TELEC:
- FCC ID: LUBMA41
- IC ID: 2529A-MA41M9
LED Safety:
- IEC 60825-1
- EN 60825-1
