iPhone 16e included.
The XtremeScan iXS930 is a fully integrated handheld computing device that combines a durable 1D laser scanner, rugged enclosure, and iPhone 16e into a single unit that's ready to set up, connect, and begin scanning. Designed for logistics, warehousing, manufacturing, and field service workflows, it offers mobility, performance, and protection without compromising usability. The integration enhances the iPhone 16e's capabilities, allowing it to perform reliably in harsh conditions while maintaining seamless access to iOS applications.
Its class 2 laser engine delivers high-speed scanning in challenging conditions, reading 1D barcodes through plastic or glass, in low or bright lighting, and at difficult angles. With a scan range from 1.2 inches to 15 feet (depending on barcode type and condition), it's ideal for items on high racks, floor-level inventory, or damaged labels. A highly visible LED aimer ensures precise targeting and consistent results.
The iPhone 16e is protected by an IP67-rated enclosure, offering industrial-grade resistance to dust, water, drops, and daily wear. An integrated wireless charging system streamlines power management without removing the device from the case. The iXS930 delivers a compact, flexible solution for professionals who need a rugged, all-in-one device that combines industrial durability with the speed and familiarity of iOS-based mobile computing.
-
Integrated iPhone Included
Comes with a factory-new 128GB iPhone 16e, featuring a 6.1-inch Super Retina XDR display, Apple Intelligence, and the power of the iOS platform. Pre-installed and ready to setup, connect, and deploy.
-
Rapid Scanning
Fast 1D laser scanning for printed barcodes featuring a high-performance Class 2 laser. Ideal for moderate to rigorous scanning applications, handles thousands of scans per day and operates at distances of up to 180" (457.2 cm), depending on barcode size and quality.
-
Bluetooth Wireless Integration
Dependable Bluetooth connection to host devices.
-
Long-Lasting Battery
Features rechargeable and field-replaceable battery that lasts a full shift.
-
Rugged Design
Built to withstand drops and harsh environments, with an IP67 sealed housing for protection from dust, water exposure, and water immersion.
-

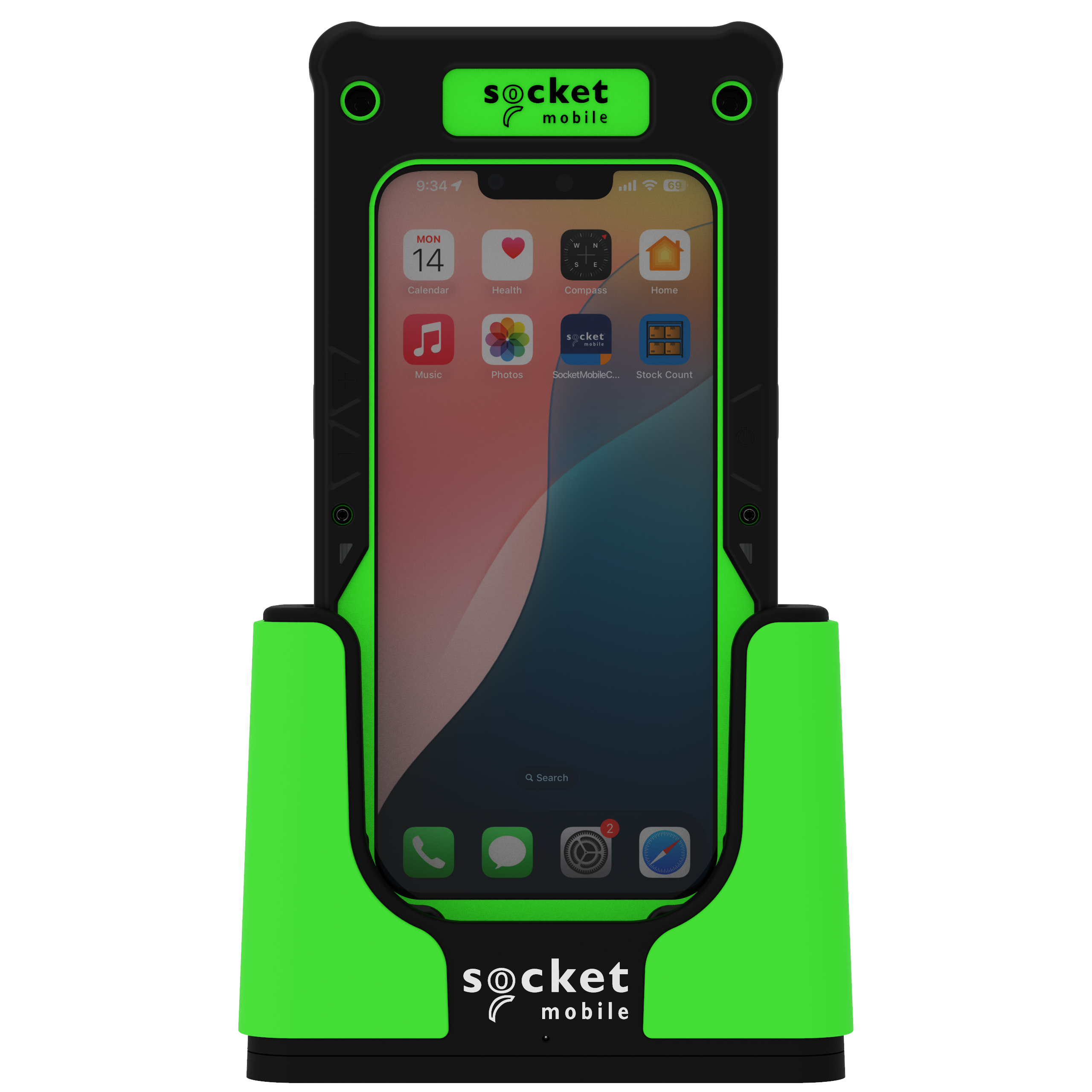

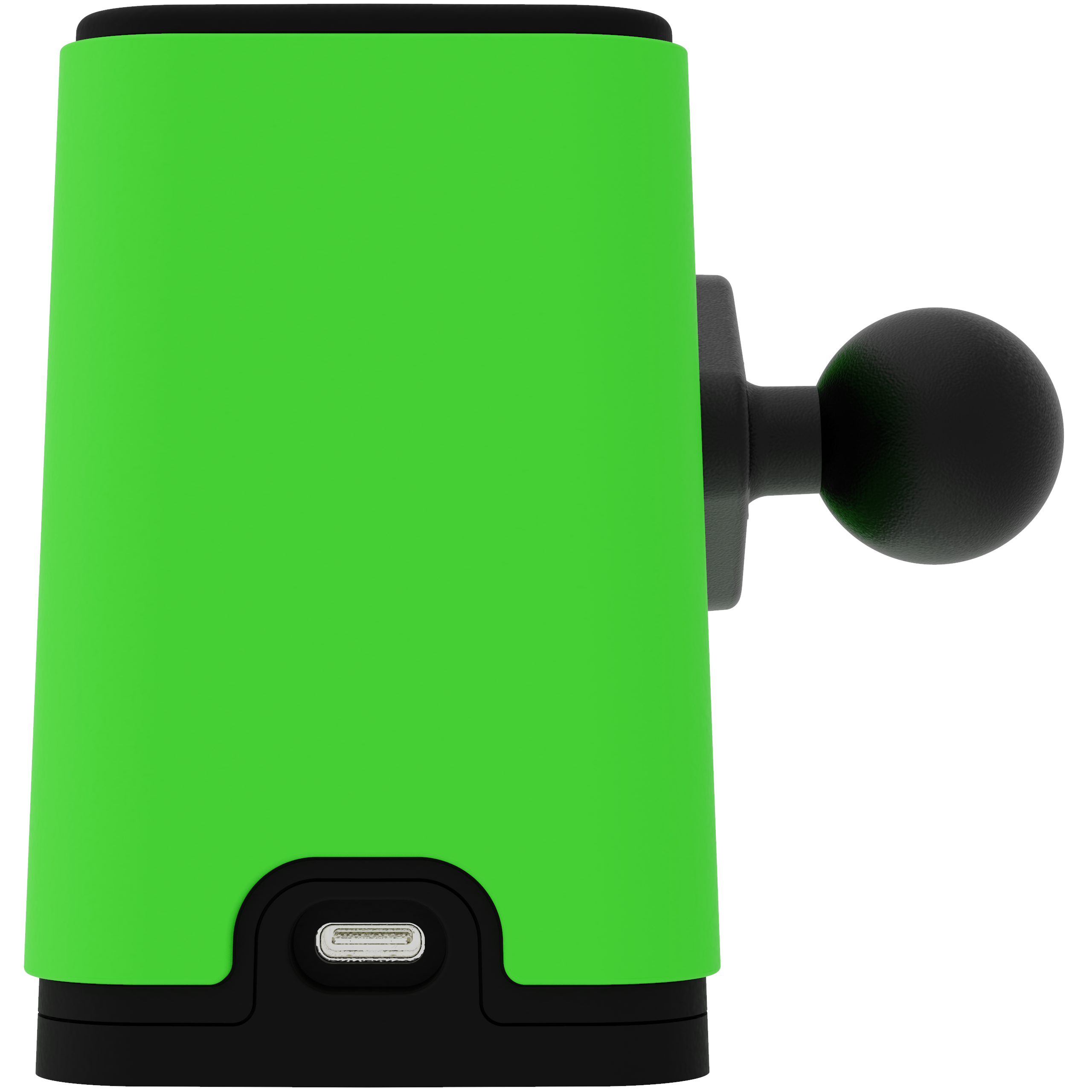

Charging
Case charges both devices (Apple iPhone & Socket Mobile scanner).
-
LED Aimer
Bright, rectangular illumination field with LED pointer for precise aiming.
-
One-Handed Solution
Easily combine the mobile device and data reader for a one-handed scanning solution.
-
Intuitive User Indicators
LED lights that indicate successful scanning and battery charging status.
-
Easy App Integration
Socket Mobile's Capture SDK enables easy integration in your applications to improve business productivity with fast, efficient, and reliable data transfer over Bluetooth wireless technology. Data reader works out of the box for apps that have already integrated CaptureSDK.
-
Designed and Assembled in the USA
All socket mobile data readers are built at our headquarters in Fremont, CA.
-
Audible Feedback
Multiple feedback tones to indicate successful scans/reads and other important action confirmations.
-
Developer Support
Our support team is available to assist with set-up and operation.
-
1-Year Warranty Included
Extended warranty options also available.
| Default Barcode Symbologies |
|
||||||||||||||||||||||||||||||
| Supported Barcode Symbologies |
Learn how to enable and disable data types. |
||||||||||||||||||||||||||||||
| Optical Resolution | 0.005 in. Minimum element width |
||||||||||||||||||||||||||||||
| Print Contrast | Minimum 25% absolute dark/light Reflectance measured at 650 nm. |
||||||||||||||||||||||||||||||
| Scan Angle | Wide: 47° (Default) Medium: 35°Narrow: 10° |
||||||||||||||||||||||||||||||
| Reading Distance |
|
||||||||||||||||||||||||||||||
| Decode Ranges | 1D codes 3.05 to 457.2 cm (1.2 in to 180 in). Depends on width and barcode size, symbology, label media.
|
| Battery Type | 1 rechargeable Lithium Ion Polymer (replaceable battery) |
| Charge Time | 8 Hours |
| Life of battery | 500 charge-discharge cycles |
| Life per full charge | Standby time: 25 hours Active Scan Time: 10,000 scans within 11 hours (based on one scan every 4 seconds) Note: Battery life varies depending on ambient temperature, ambient light, and the age of the battery. |
| Battery weight | 12.5g |
| Percentage lithium | 36.3% |
| mAh | 700 |
| Cells per battery | 1 |
| Watts per battery | 2.59 |
| Cell type | Proprietary |
| Chemical composition | Lithium - polymer |
| Lithium content | 4.5g |
| Voltage | 3.7v |
| Hazmat UN Number | UN3481, P.I. 967 |
| ROHS Compliance | Yes, Included with Scanner |
| Country of origin | China |
| Commodity code | 8507.60.0000 |
Some Operating Systems or smartphone/tablet models may support only one profile. |
|
|
Class 2 Bluetooth, version 2.1 + EDR (Enhanced Data Rates) with 56-bit data encryption |
|
|
Up to 10 meters (33 ft.), depending on the environment. The range limit is usually due to the Host Device (phone, tablet, or notebook). |
- Data Reader
- Apple iPhone 16e
- Charging Cable with USB-C to USB-A adapter
- Get Started Guide
|
From 0 to 100 000 lux. From pitch black to direct sunlight. |
|
|
Charging in an ambient temperature above 40° C / 100° F may result in charging issues. |
|
|
Standard:
Freezer:
|
|
|
0° to 45° C (32° to 113° F) |
|
|
95% at 60° C (140° F) (non-condensing) |
|
|
IP67 (Ingress protection rating for dust and water) meets IEC sealing and EN60529 specifications. |
|
|
-40° to 70° C (-40° to 158° F) |
|
|
2,500 cycles at 3.3 ft. (1 m) to a metal plate, IEC6008-2-31, IEC60068-2-32 3. |
Bluetooth SIG:
- Declaration ID: D030529 QD ID: 82009
Electrical Safety:
- EN 62368-1:2020 + A11:2020
- IEC 62368-1:2018
- UL 62368-1:2019 R10.21
- CSA C22.2 NO. 62368-1:19
Environmental:
- RoHS EN 50581
EMI / RFI:
- FCC Part 15 Class C, RSS 210, iCES 003, C-Tick, CISPR 22, CE EN55022, EN55024
- TELEC:
- FCC ID: LUBMA41
- IC ID: 2529A-MA41M9
LED Safety:
- IEC 60825-1
- EN 60825-1
