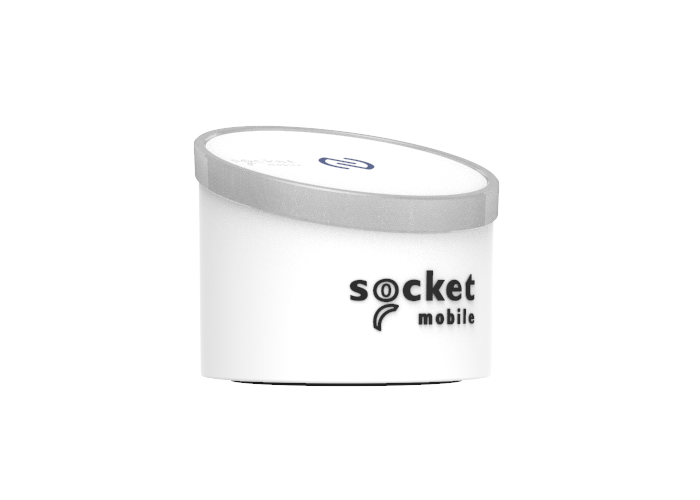

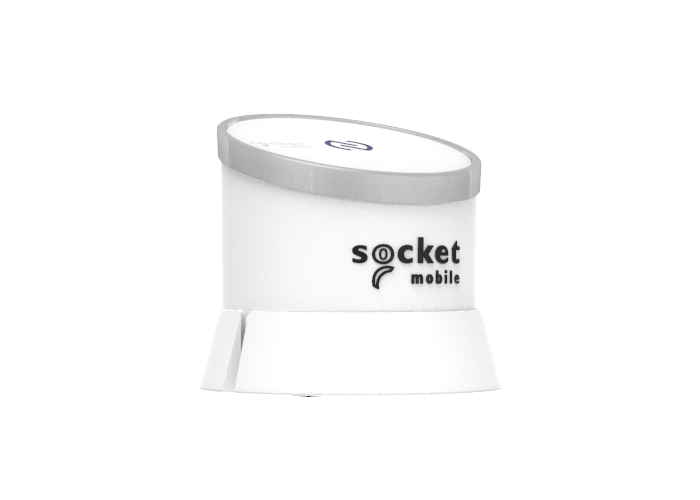

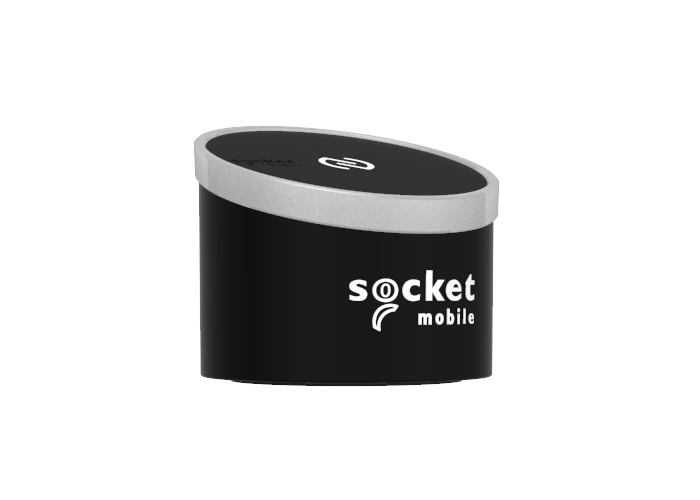

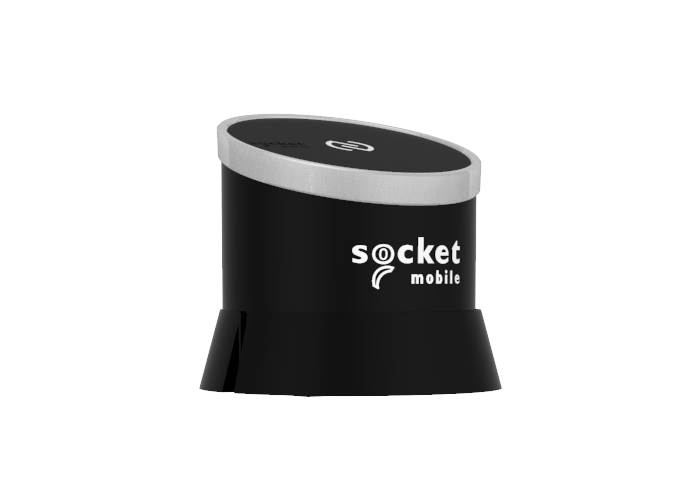

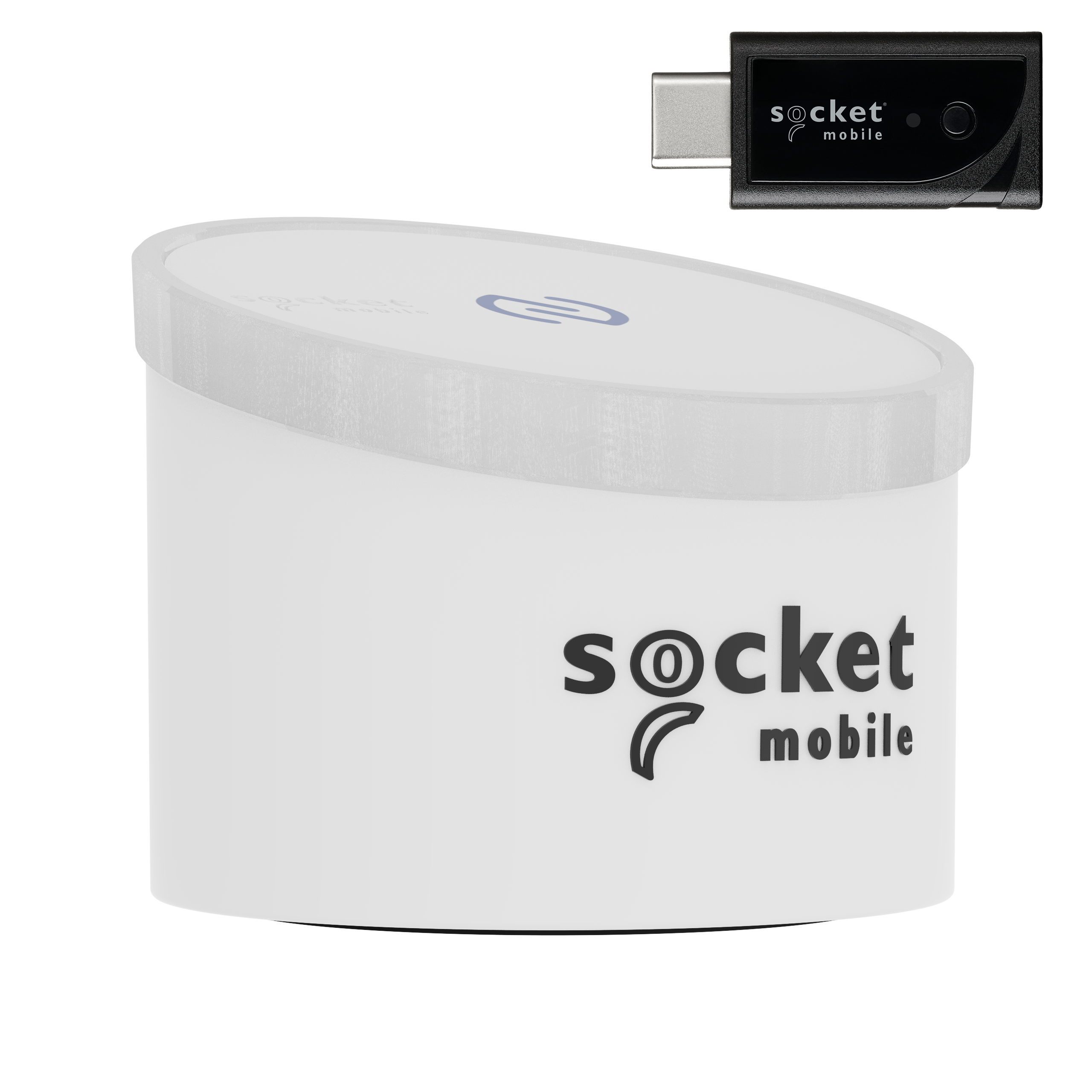

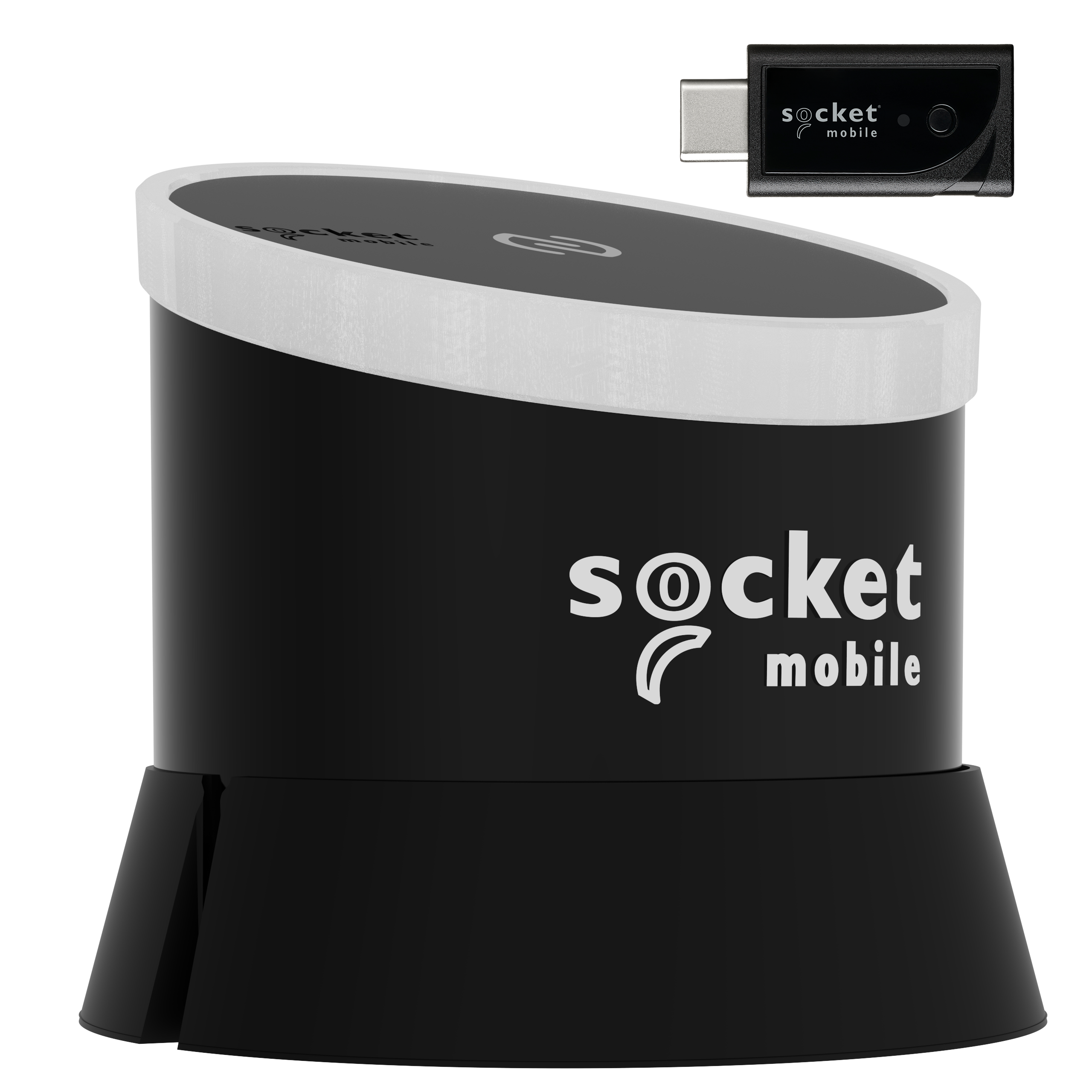

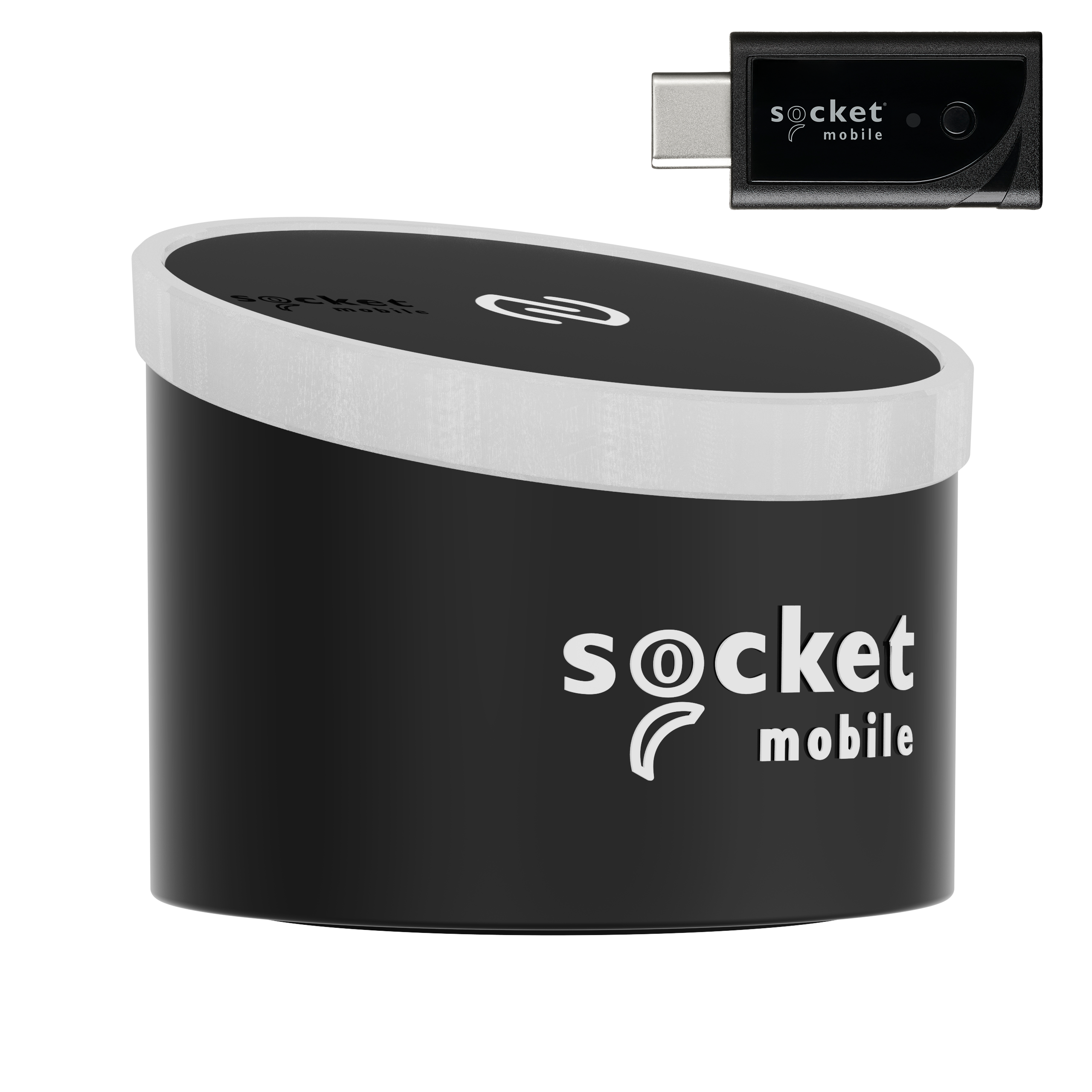

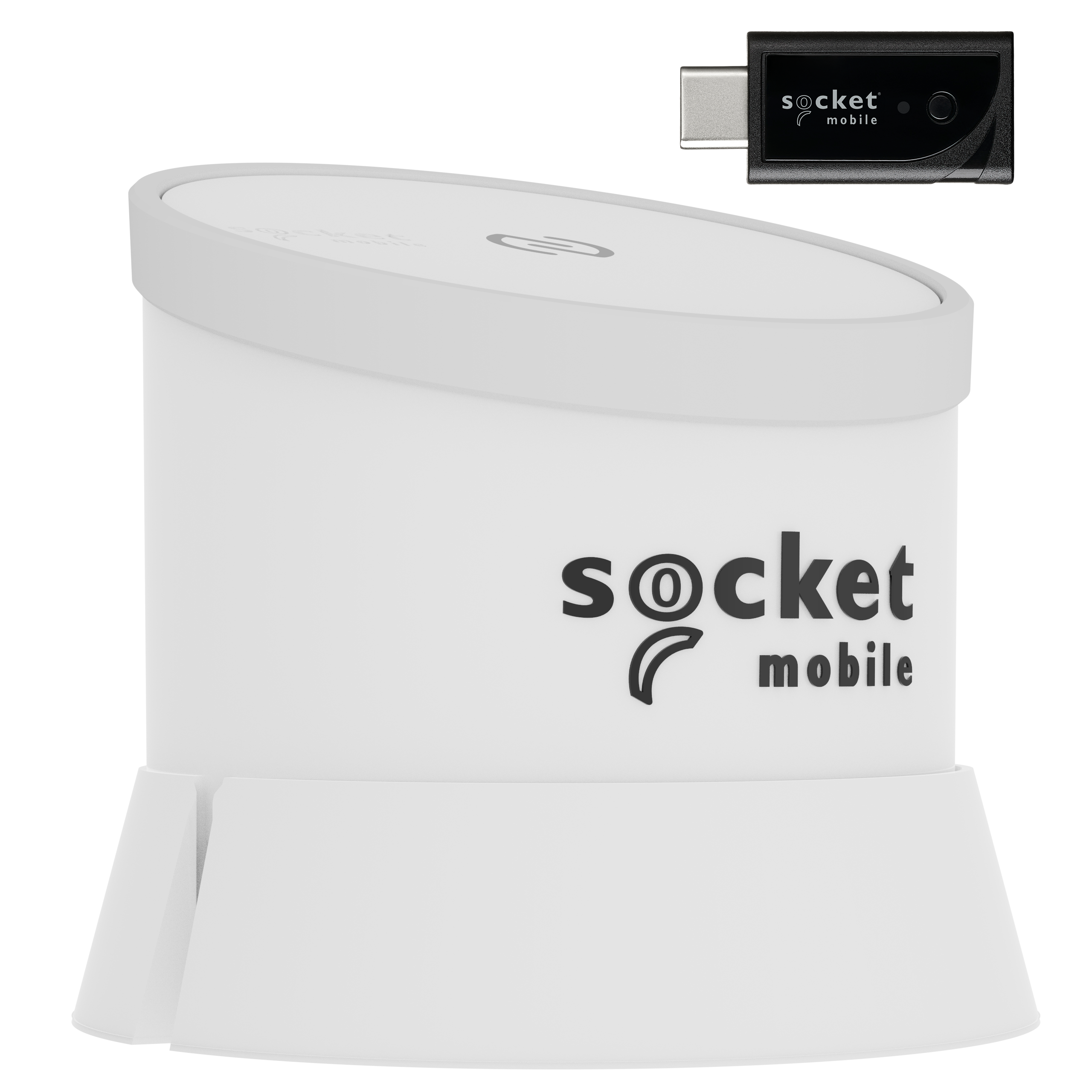

The SocketScan S550 is built for limited counter space and all-day reliability. We created the S550 to work with applications for loyalty, closed-loop payments, pop-up selling, events, ticket or ID verification, and other customer-related services. Together with an application, the S550 can automatically request the appropriate mobile pass from an iOS or Android host device for a franchise, store, venue, or event you are attending to ensure a fast and convenient end-user experience. The result is simple user interaction and a high level of security by capturing a cryptographically generated payload from the mobile pass. The mobile pass then transmits the payload over secure Bluetooth to an iPad or other host device running a connected application.
The S550 is compact, portable, and can run on a battery or be plugged into power. Convenient for use anytime, anywhere with applications running on Android, Apple iOS devices (iPad®, iPhone®, iPod touch®) and Windows. The S550 supports all NFC Forum tag types and devices compliant with the ISO 18092 standard, in addition to ISO 14443 Type A and B smart cards, ISO 15693 tags, MIFARE®, FeliCa®, NXP, and STMicro tags. It is NFC Forum, Apple Pay® Value Added Service (VAS), Google Wallet, FeliCa®, and Bluetooth SIG certified. It complies with both Apple and Google NFC protocols on iPhone and Android devices.
Digital ID / mDL (Mobile Driver's License) Reader: The S550 is an excellent choice in the new age of digital IDs and mDLs and simplifies the mDL reading process. Many states and countries have already begun to roll out systems for mDL usage, and Socket Mobile is helping industries such as retail, commercial services, and government move into this new digital ID ecosystem. Ready to read mobile wallet mDLs out of the box, the S550 can read credentials following ISO18013-5, the standard adopted in many jurisdictions.
The S550 supports three Bluetooth profiles:
- Smart Reader Mode (default)
- PCSC Coupler Reader/Writer Mode
- Basic Mode (sometimes called HID, human interface device, Keyboard Emulation)
Note: The S550 is not a credit or debit card reader.
-
Multi-Device Compatibility
Apple® Certified for iOS devices (iPhone®, iPad®) and compatible with Android®.
-
Versatile Reading
Reads Apple Wallet® & Google Wallet Passes, Fast NFC, and RFID Reader (HF tags, labels, smart devices).
-
Writing
Write/Encode, lock, and unlock tags.
-
Long-Lasting Battery
Features rechargeable and field-replaceable battery that lasts a full shift.
-
Intuitive User Indicators
LED lights that indicate successful scanning and battery charging status.
-
Easy App Integration
Socket Mobile's Capture SDK enables easy integration in your applications to improve business productivity with fast, efficient, and reliable data transfer over Bluetooth wireless technology. Data reader works out of the box for apps that have already integrated CaptureSDK.
-
Developer Support
Our support team is available to assist with set-up and operation.
-
Bluetooth Wireless Integration
Dependable Bluetooth connection to host devices.
-
Audible Feedback
Multiple feedback tones to indicate successful scans/reads and other important action confirmations.
-
1-Year Warranty Included
Extended warranty options also available.
-
Designed and Assembled in the USA
All socket mobile data readers are built at our headquarters in Fremont, CA.
NFC Tags Supported |
Learn how to enable and disable data types. |
Write Mode | Write mode is supported by the PCSC protocol over BLE. Compatibility is dependent on the card type, content, and authentication level. Please contact us to discuss your requirements. |
NFC | |
NFC Front-End | NXP PN5180 |
Maximum NFC Read Range | 0.4” - 2” (10 - 50 mm) |
Carrier Frequency | 13.56 MHz (RFID HF, NFC) |
Read/Write Speed | 26 kbps (ISO 15693), 106kbps (ISO 14443, 212/424kbps (ISO 18092) |
Antenna | Integrated, round 54mm x 40mm, balanced |
Battery Type | 1 rechargeable Lithium Ion Polymer (replaceable battery) |
Charge Time | 4 |
Life per full charge | Standby time: 16 hours Active Operation: 2,400 reads |
Battery weight | 35g |
Percentage lithium | 26.5% |
mAh | 1000 |
Cells per battery | 1 |
Watts per battery | 3.7 |
Cell type | Proprietary |
Chemical composition | Lithium - polymer |
Lithium content | 3.0g |
Voltage | 3.7v |
Hazmat UN Number | UN3481, P.I. 967 |
ROHS Compliance | Yes, Included with Scanner |
Country of origin | China |
Commodity code | 8507.60.0000 |
Bluetooth LE |
|
Up to 10 meters (33 ft.), depending on the environment. The range limit is usually due to the Host Device (phone, tablet, or notebook). |
|
|
- Data Reader
- Charging Cable
- Get Started Guide
0° to 45° C (32° to 113° F) |
|
-40° to 70° C (-40° to 158° F) |
|
95% at 60° C (140° F) (non-condensing) |
Bluetooth SIG:
- Declaration ID D048240
Electrical Safety:
- FCC ID: Certified to IEC 60950-1
- UL 60950-1
- CAN/CSA C22.2
Environmental:
- RoHS EN 50581
EMI / RFI:
- FCC Part 15 Class C RSS 210 iCES 003 CISPR 22 CE EN55022 EN55024
Certifications:
- FCC ID: LUBS550
IC ID:
- 2429A-S550
Contains:
- FCC ID: QOQBGM18, IC: 5123A-BGM13
