This product uses a Bluetooth LE (Low Energy) connection method that is different from our Bluetooth Classic data readers and requires a supported software application. Before purchasing, please confirm your app uses the latest version of Socket Mobile's CaptureSDK or contact us to discuss your requirements.
The XtremeScan Mag 641 pairs a rugged barcode scanner with a secure magnetic mounting system to create a versatile, high-performance tool for industrial workflows. Designed for fast-paced environments such as warehousing, logistics, and field service, the 641 supports efficient and consistent data capture throughout the workday.
With a reliable scan range of up to 20 inches, the 641 is well suited for close to mid-range scanning tasks including order picking, shelf labeling, package processing, and asset verification. Its omnidirectional scanning engine enables rapid reads from any angle, and the integrated precision aimer supports accurate targeting in a variety of lighting conditions.
The IP67-rated housing protects the scanner from dust, water, and accidental drops, ensuring dependable performance in challenging environments. The magnetic attachment system keeps the mobile device firmly in place during use while allowing quick detachment for device access or other mobile tasks. Bluetooth® Low Energy connectivity maintains a stable and power-efficient pairing to iOS, Android, and Windows devices, while the scanner’s high-capacity battery provides full-shift operation.
Available Configurations
- XtremeScan XS641 (Standard Handheld):
Rugged handheld scanner with magnetic mounting system for secure, flexible device pairing. Perfect for mobile professionals using their own devices. - XtremeScan Grip XG641 (with Pistol Grip Handle):
Same as XS641 but with an ergonomic pistol grip handle for comfortable point-and-scan operation during long shifts or heavy scanning tasks.
Available in the following bundles
Magnetic Adapter Compatibility
To ensure proper magnetic attachment, please ensure your device is equipped with a compatible magnetic mounting system.
- Rokform Case Users: If you're using a Rugged Rokform Case for iPhone 15, 16, or 16e, no additional adapter is needed.
- Other Phones: For other devices, we recommend one of the following magnetic adapters from Rokform:
- Tablets: For tablet setups, we suggest the Oqtiq Magnetic Universal Strip as a reliable third-party option.
-
Rapid Scanning
Fast 1D/2D scanning for both printed and on-screen barcodes, featuring omnidirectional capability for intuitive, rapid scanning.
-
Advanced Decoding
Accurately captures data from scratched, damaged, smudged, or low-contrast barcodes, helping to reduce failed scans, minimize delays, and increase productivity when working in challenging environments.
-
Rugged Design
Built to withstand drops and harsh environments, with an IP67 sealed housing for protection from dust, water exposure, and water immersion.
- Scanning Range Scans barcodes ranging in size from 5 mil to 15 mil, at distances from 0.6 inches up to 20 inches.
- Precision Aimer High-visibility aimer ensures fast, accurate barcode targeting across various distances.
-
One-Handed Solution
Easily combine the mobile device and data reader for a one-handed scanning solution.
-
Bluetooth LE Support
Enables dependable, low-power wireless connectivity for extended battery life and fast pairing through Bluetooth Low Energy.
-
Long-Lasting Battery
Scanner features rechargeable and field-replaceable battery that lasts a full shift.
-
Intuitive User Indicators
LED lights that indicate successful data read/write and battery charging status.
-
Audible Feedback
Multiple feedback tones to indicate successful data read/write and other important action confirmations.
-
Easy App Integration
Socket Mobile's CaptureSDK (version 2.0.29 or higher) enables easy integration in your applications to improve business productivity with fast, efficient, and reliable data transfer over Bluetooth wireless technology. Data reader works out of the box for apps that have already integrated CaptureSDK, with support for Bluetooth LE devices.
-
1-Year Warranty Included
Extended warranty options also available.
-
Designed and Assembled in the USA
Socket mobile data readers are built at our headquarters in Fremont, CA.
| Default Barcode Symbologies |
Learn how to enable and disable data types. |
||||||||||||||||||
| Supported Barcode Symbologies |
Learn how to enable and disable data types. |
||||||||||||||||||
| Scan Angle | 44.5° (Horizontal) - 33.5° (Vertical) |
||||||||||||||||||
| Sensor Resolution | 1280 horizontal x 960 vertical pixels |
||||||||||||||||||
| Print Contrast | Down to 25%-20% |
||||||||||||||||||
| Reading Distance | 2.8 to 91.7 cm (1.1 to 36.1 in.) Depends on barcode size, symbology, label media. |
||||||||||||||||||
| Short Range | Reading Distance: 0.6 in. to 20 in. (1.5 to 50.8 cm) Depends on barcode size, symbology, label media
|
| Battery Type | 1 rechargeable Lithium Ion Polymer (replaceable battery) |
| Charge Time | 8 Hours |
| Life of battery | 500 charge-discharge cycles |
| Life per full charge | Standby time: 25 hours Active Scan Time: 10,000 scans within 11 hours (based on one scan every 4 seconds) Note: Battery life varies depending on ambient temperature, ambient light, and the age of the battery. |
| Battery weight | 12.5g |
| Percentage lithium | 36.3% |
| mAh | 700 |
| Cells per battery | 1 |
| Watts per battery | 2.59 |
| Cell type | Proprietary |
| Chemical composition | Lithium - polymer |
| Lithium content | 4.5g |
| Voltage | 3.7v |
| Hazmat UN Number | UN3481, P.I. 967 |
| ROHS Compliance | Yes, Included with Scanner |
| Country of origin | China |
| Commodity code | 8507.60.0000 |
|
|
|
Bluetooth LE |
|
|
Up to 10 meters (33 ft.), depending on the environment. The range limit is usually due to the Host Device (phone, tablet, or notebook). |
Data Reader with Charging Cable
- Data Reader
- Charging Cable with USB-C to USB-A adapter
- Get Started Guide
Data Reader with Charging Dock
- Data Reader
- Charging Dock
- USB-C Cable
- Get Started Guide

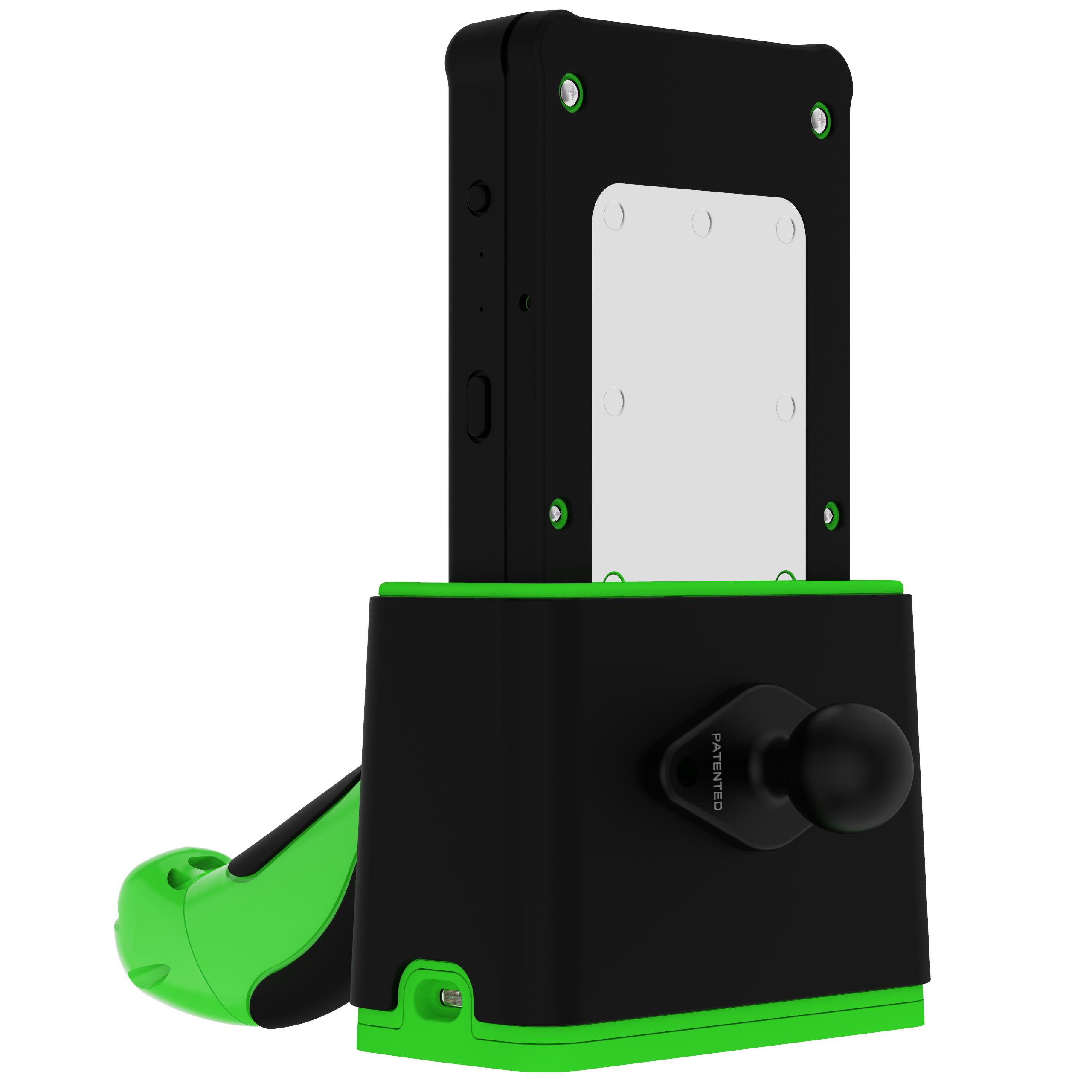

Data Reader with Charging Dock and Mount
- Data Reader
- Charging Dock
- Mount
- USB-C Cable
- Get Started Guide
Data Reader with Holster
- Data Reader
- Charging Cable with USB-C to USB-A adapter
- Holster
- Get Started Guide
Data Reader with Rokform Case
- Data Reader
- Charging Cable with USB-C to USB-A adapter
- Rokform Case
- Get Started Guide
|
From 0 to 100 000 lux. From pitch black to direct sunlight. |
|
|
Charging in an ambient temperature above 40° C / 100° F may result in charging issues. |
|
|
Standard:
Freezer:
|
|
|
0° to 45° C (32° to 113° F) |
|
|
95% at 60° C (140° F) (non-condensing) |
|
|
IP67 (Ingress protection rating for dust and water) meets IEC sealing and EN60529 specifications. |
|
|
-40° to 70° C (-40° to 158° F) |
|
|
2,500 cycles at 3.3 ft. (1 m) to a metal plate, IEC6008-2-31, IEC60068-2-32 3. |
Bluetooth SIG:
- Declaration ID: D030529
- QD ID: 82009
Electrical Safety:
- EN 62368-1:2020 + A11:2020
- IEC 62368-1:2018
- UL 62368-1:2019 R10.21
- CSA C22.2 NO. 62368-1:19
Environmental:
- RoHS EN 50581
EMI / RFI:
- FCC Part 15 Class C, RSS 210, iCES 003, C-Tick, CISPR 22, CE EN55022, EN55024
- TELEC: 020-240046
- FCC ID: LUBMA41
- IC ID: 2529A-MA41M9
LED Safety:
- IEC 60825-1
- EN 60825-1
