This product uses a Bluetooth LE (Low Energy) connection method that is different from our Bluetooth Classic data readers and requires a supported software application. Before purchasing, please confirm your app uses the latest version of Socket Mobile's CaptureSDK or contact us to discuss your requirements.
The XtremeScan Mag 663 combines a powerful long-range barcode scanner with a secure magnetic mounting system, creating a rugged, high-performance solution for Bring Your Own Device (BYOD) operations. Designed for warehousing, logistics, manufacturing, and field service environments, the 663 allows employees to quickly attach and detach their mobile devices throughout the day—offering flexibility, convenience, and professional-grade scanning performance.
Equipped with a long-range 1D/2D scanning engine, the 663 reads barcodes from as far as 46 feet away, minimizing the need for repositioning or reaching hard-to-access areas. Whether scanning labels on high warehouse racks or asset tags at close range, the 663 provides fast, omnidirectional scanning with a high-precision aimer designed for accurate targeting in all lighting conditions.
Built with industrial-grade durability, the XtremeScan housing features IP67 sealing to protect against dust, water, and rough handling in demanding environments. Its compact form factor and ergonomic design ensure comfort during long shifts, while Bluetooth® LE connectivity enables smooth pairing with a wide range of mobile devices. The magnetic attachment system delivers a secure, convenient connection that keeps devices firmly in place during use, yet easy to remove when needed for other tasks.
Available Configurations
- XtremeScan XS663 (Standard Handheld):
Compact, handheld long-range scanner with an integrated magnetic plate system for easy attachment and detachment. Ideal for workers who need mobility and flexibility while using their own mobile devices. - XtremeScan Grip XG663 (with Pistol Grip Handle):

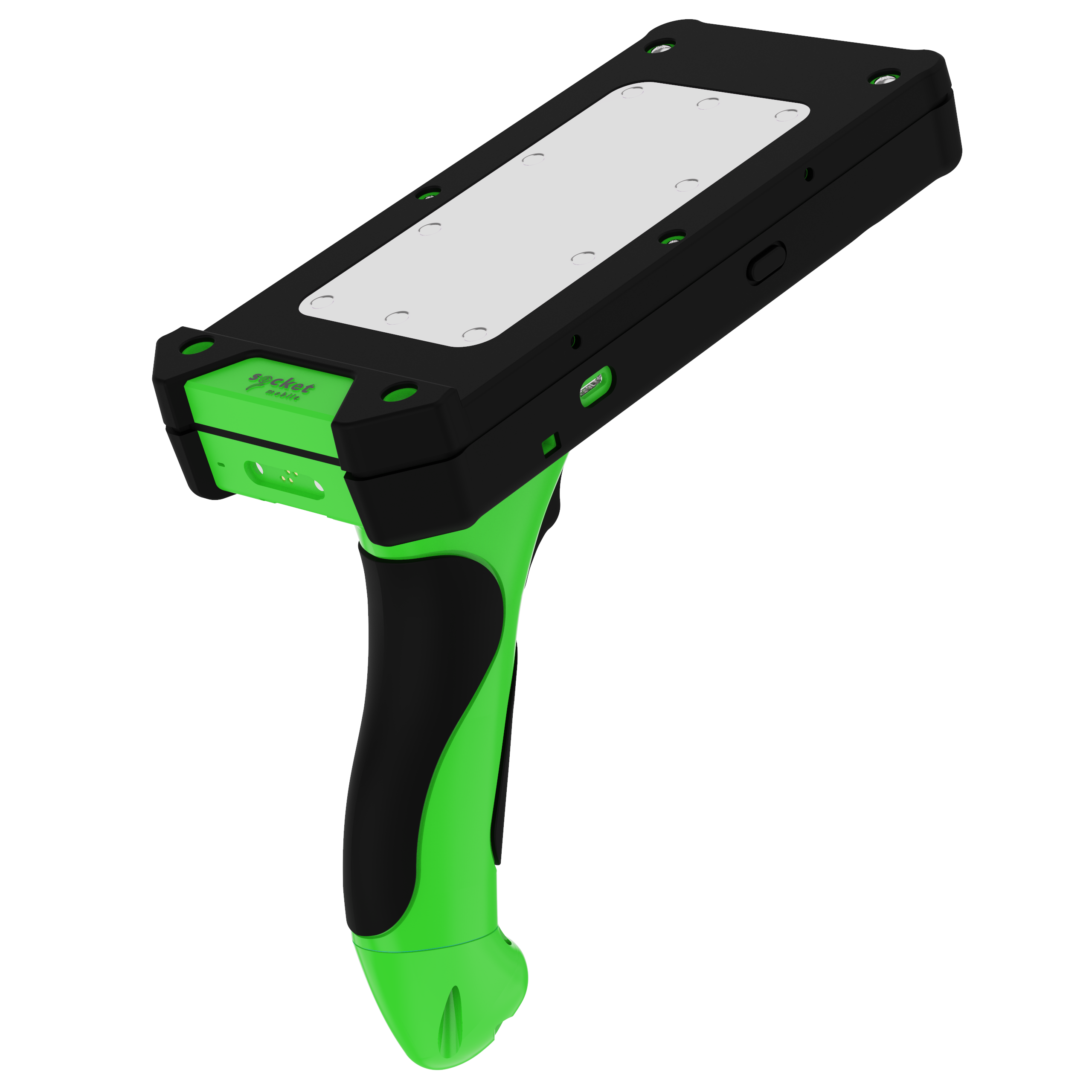

Same as the standard model, but includes an ergonomic pistol grip handle for added comfort during scan-heavy shifts or extended use. Perfect for applications requiring frequent, high-volume scanning.
Available in the following bundles
Magnetic Adapter Compatibility
To ensure proper magnetic attachment, please ensure your device is equipped with a compatible magnetic mounting system.
- Rokform Case Users: If you're using a Rugged Rokform Case for iPhone 15, 16, or 16e, no additional adapter is needed.
- Other Phones: For other devices, we recommend one of the following magnetic adapters from Rokform:
- Tablets: For tablet setups, we suggest the Oqtiq Magnetic Universal Strip as a reliable third-party option.
-
Multi-Device Compatibility
Apple® Certified for iOS devices (iPhone®, iPad®) and compatible with Android® and Windows® 11.
-
Advanced Decoding
Accurately captures data from scratched, damaged, smudged, or low-contrast barcodes, helping to reduce failed scans, minimize delays, and increase productivity when working in challenging environments.
- Robust Scanning Fast 1D/2D scanning for both printed and on-screen barcodes, featuring omnidirectional capability for intuitive, rapid scanning.
-
Rugged Design
Built to withstand drops and harsh environments, with an IP67 sealed housing for protection from dust, water exposure, and water immersion.
-
Long Scanning Range
Scans barcodes ranging in size from 3 mils to 100 mils at distances from 2.2 inches to 46 feet.
- Precision Aimer High-visibility aimer ensures fast, accurate barcode targeting across various distances.
-
One-Handed Solution
Easily combine the mobile device and data reader for a one-handed scanning solution.
-
Bluetooth LE Support
Enables dependable, low-power wireless connectivity for extended battery life and fast pairing through Bluetooth Low Energy.
-
Long-Lasting Battery
Scanner features rechargeable and field-replaceable battery that lasts a full shift.
-
Intuitive User Indicators
LED lights that indicate successful data read/write and battery charging status.
-
Audible Feedback
Multiple feedback tones to indicate successful data read/write and other important action confirmations.
-
Easy App Integration
Socket Mobile's CaptureSDK (version 2.0.29 or higher) enables easy integration in your applications to improve business productivity with fast, efficient, and reliable data transfer over Bluetooth wireless technology. Data reader works out of the box for apps that have already integrated CaptureSDK, with support for Bluetooth LE devices.
-
1-Year Warranty Included
Extended warranty options also available.
-
Designed and Assembled in the USA
Socket mobile data readers are built at our headquarters in Fremont, CA.
| Default Barcode Symbologies |
Learn how to enable and disable data types. |
||||||||||||||||||||||||||||||||||||
| Supported Barcode Symbologies |
Learn how to enable and disable data types. |
||||||||||||||||||||||||||||||||||||
| Decode Range | 2.2 in. to 554 in. (27.1 in. to 1407.2 cm.) Depends on barcode size, symbology, label media.
* All decode ranges based on Grade A, photographic quality barcodes printed on paper. |
||||||||||||||||||||||||||||||||||||
| Scan Angle | 44.5° (Horizontal) - 33.5° (Vertical) |
||||||||||||||||||||||||||||||||||||
| Print Contrast | Down to 25%-20% |
||||||||||||||||||||||||||||||||||||
| Sensor Resolution | 1280 horizontal x 960 vertical pixels |
| Battery Type | 1 rechargeable Lithium Ion Polymer (replaceable battery) |
| Charge Time | 8 Hours |
| Life of battery | 500 charge-discharge cycles |
| Life per full charge | Standby time: 25 hours Active Scan Time: 10,000 scans within 11 hours (based on one scan every 4 seconds) Note: Battery life varies depending on ambient temperature, ambient light, and the age of the battery. |
| Battery weight | 12.5g |
| Percentage lithium | 36.3% |
| mAh | 700 |
| Cells per battery | 1 |
| Watts per battery | 2.59 |
| Cell type | Proprietary |
| Chemical composition | Lithium - polymer |
| Lithium content | 4.5g |
| Voltage | 3.7v |
| Hazmat UN Number | UN3481, P.I. 967 |
| ROHS Compliance | Yes, Included with Scanner |
| Country of origin | China |
| Commodity code | 8507.60.0000 |
|
|
|
Bluetooth LE |
|
|
Up to 10 meters (33 ft.), depending on the environment. The range limit is usually due to the Host Device (phone, tablet, or notebook). |
Data Reader with Charging Cable
- Data Reader
- Charging Cable with USB-C to USB-A adapter
- Get Started Guide

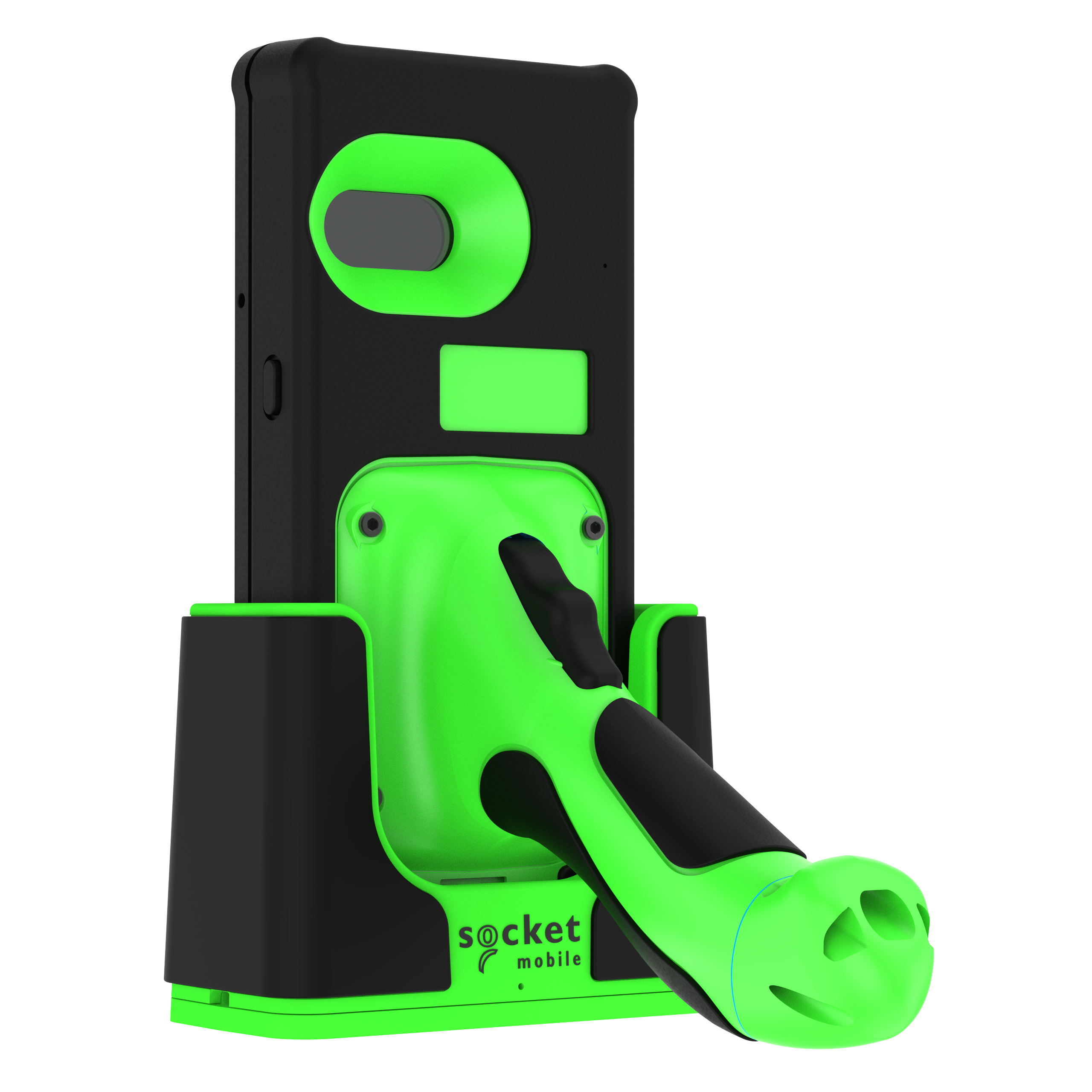

Data Reader with Charging Dock
- Data Reader
- Charging Dock
- USB-C Cable
- Get Started Guide

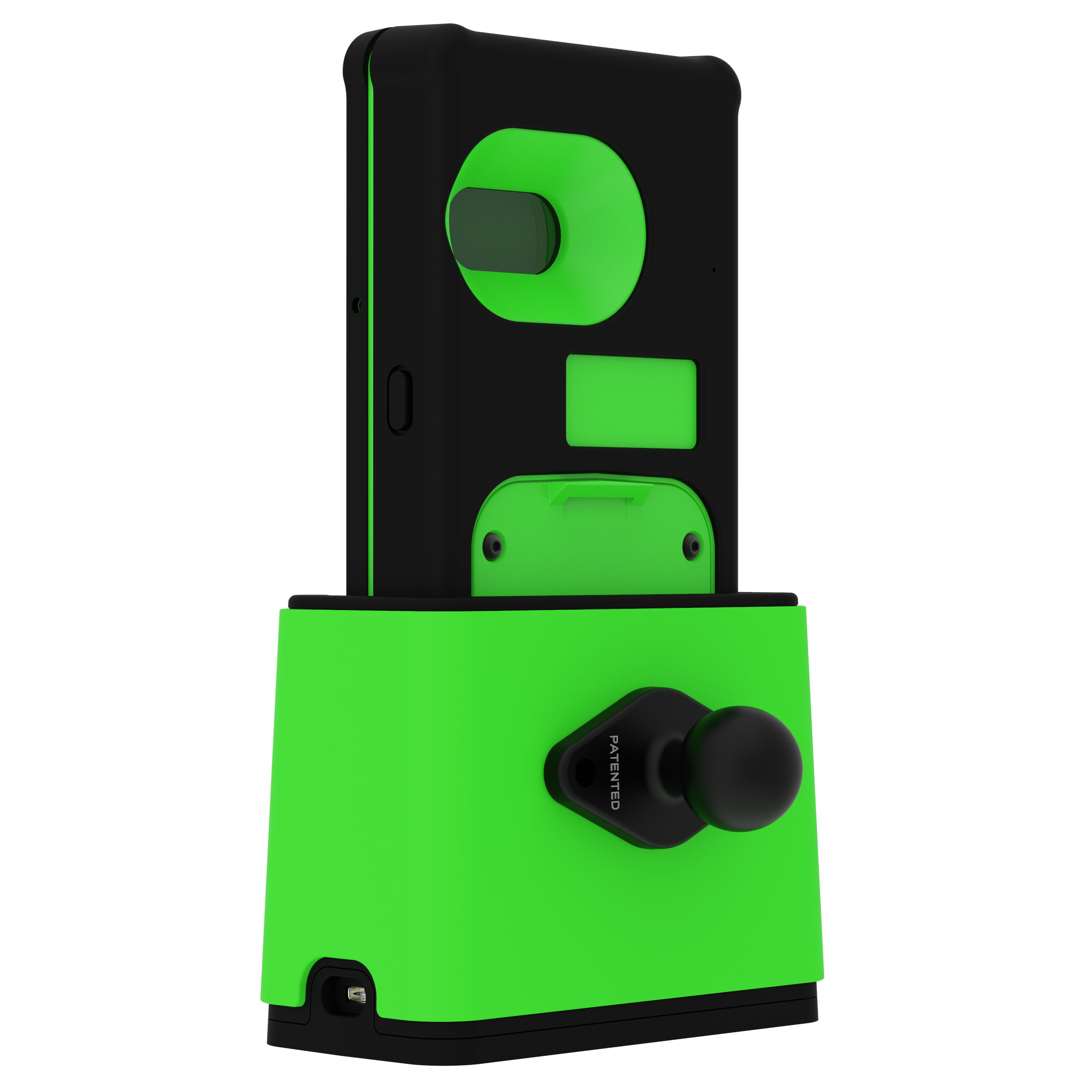

Data Reader with Charging Dock and Mount
- Data Reader
- Charging Dock
- Mount
- USB-C Cable
- Get Started Guide

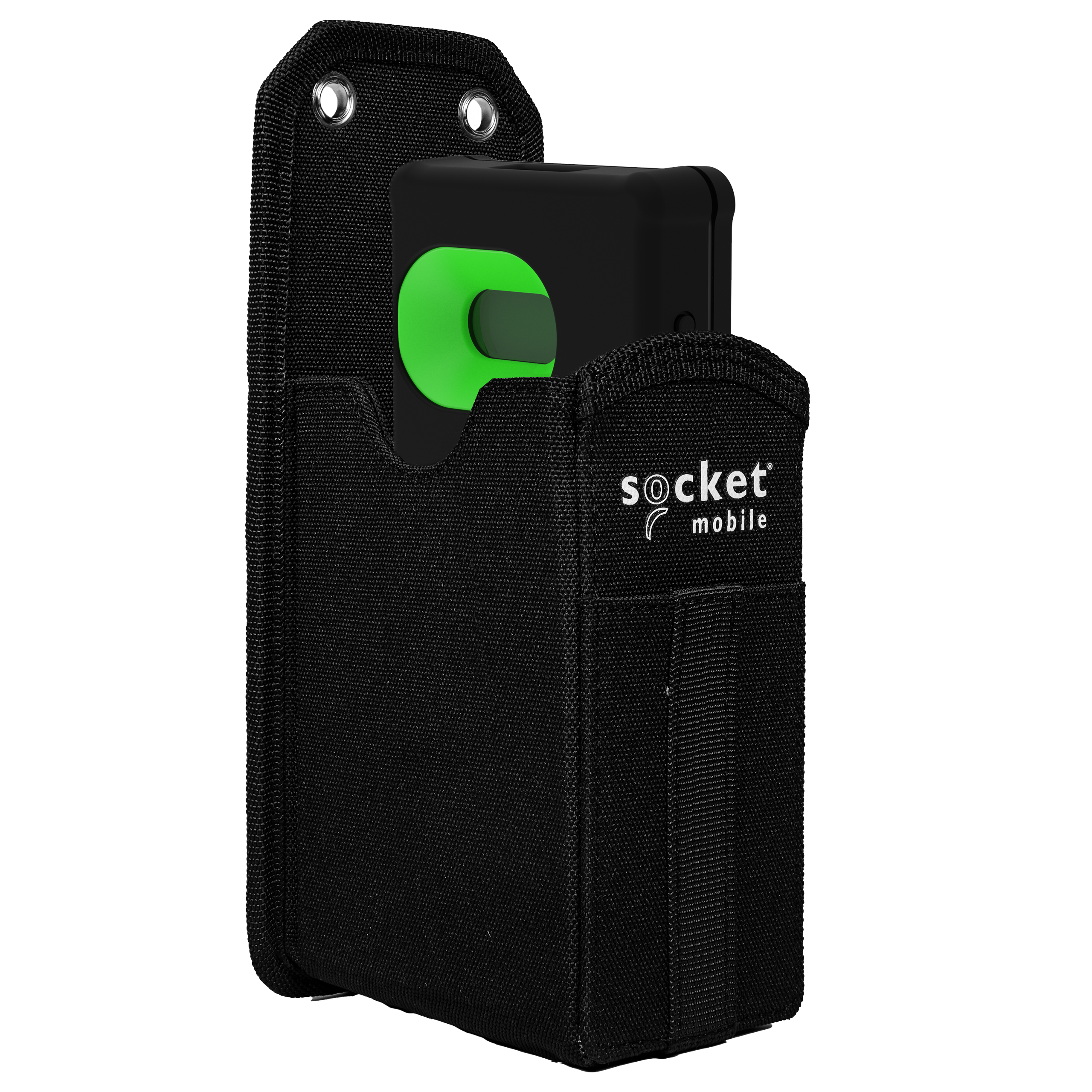

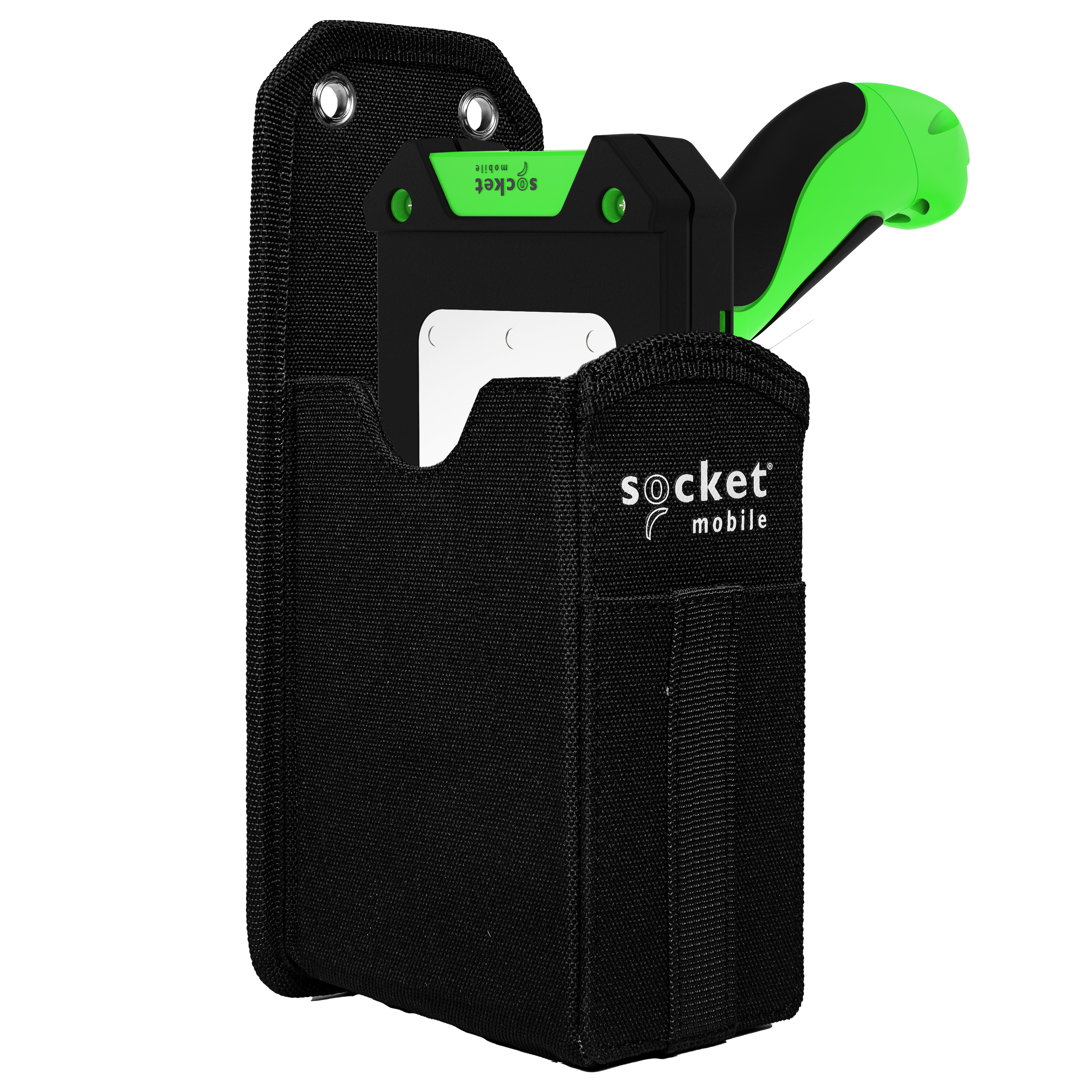

Data Reader with Holster
- Data Reader
- Charging Cable with USB-C to USB-A adapter
- Holster
- Get Started Guide

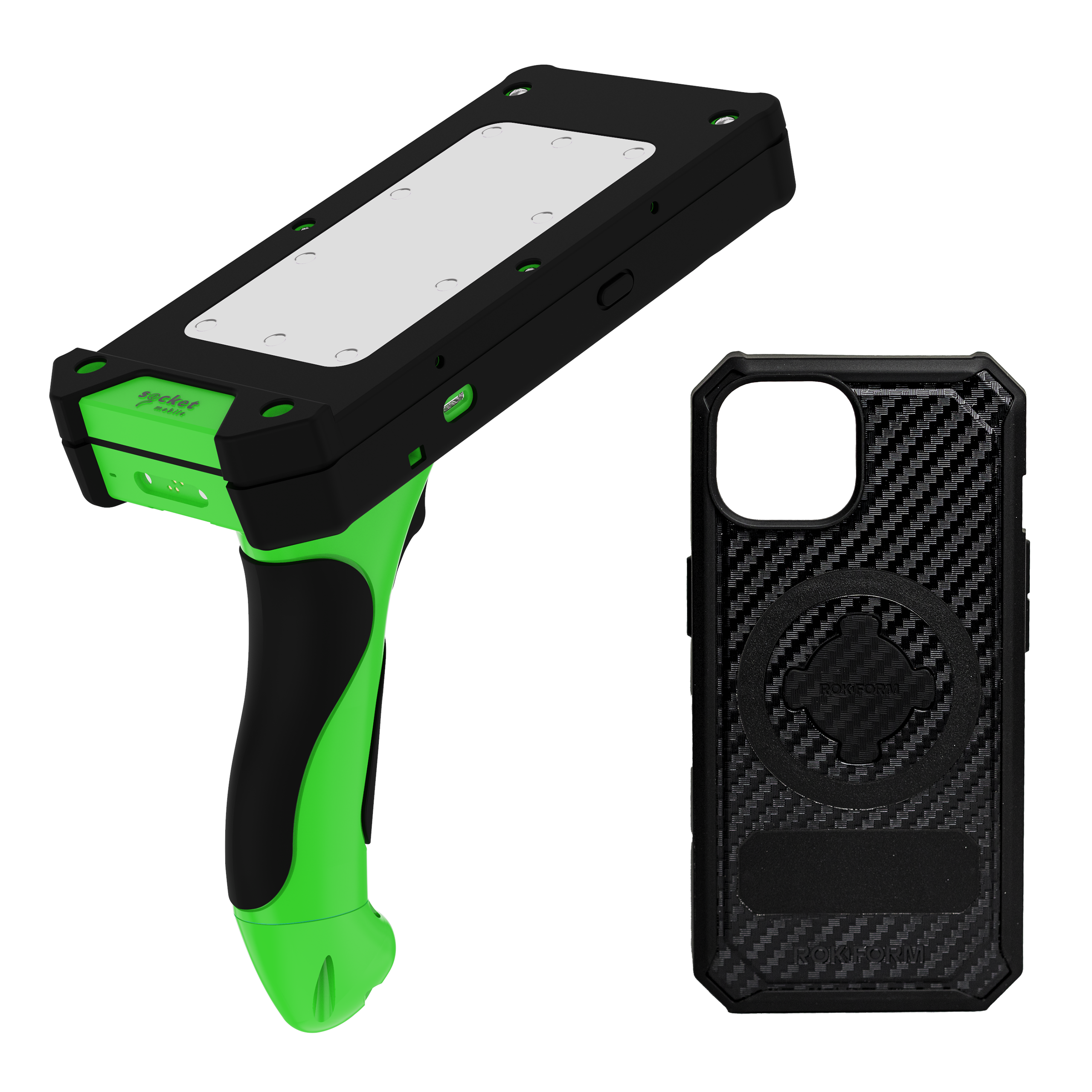

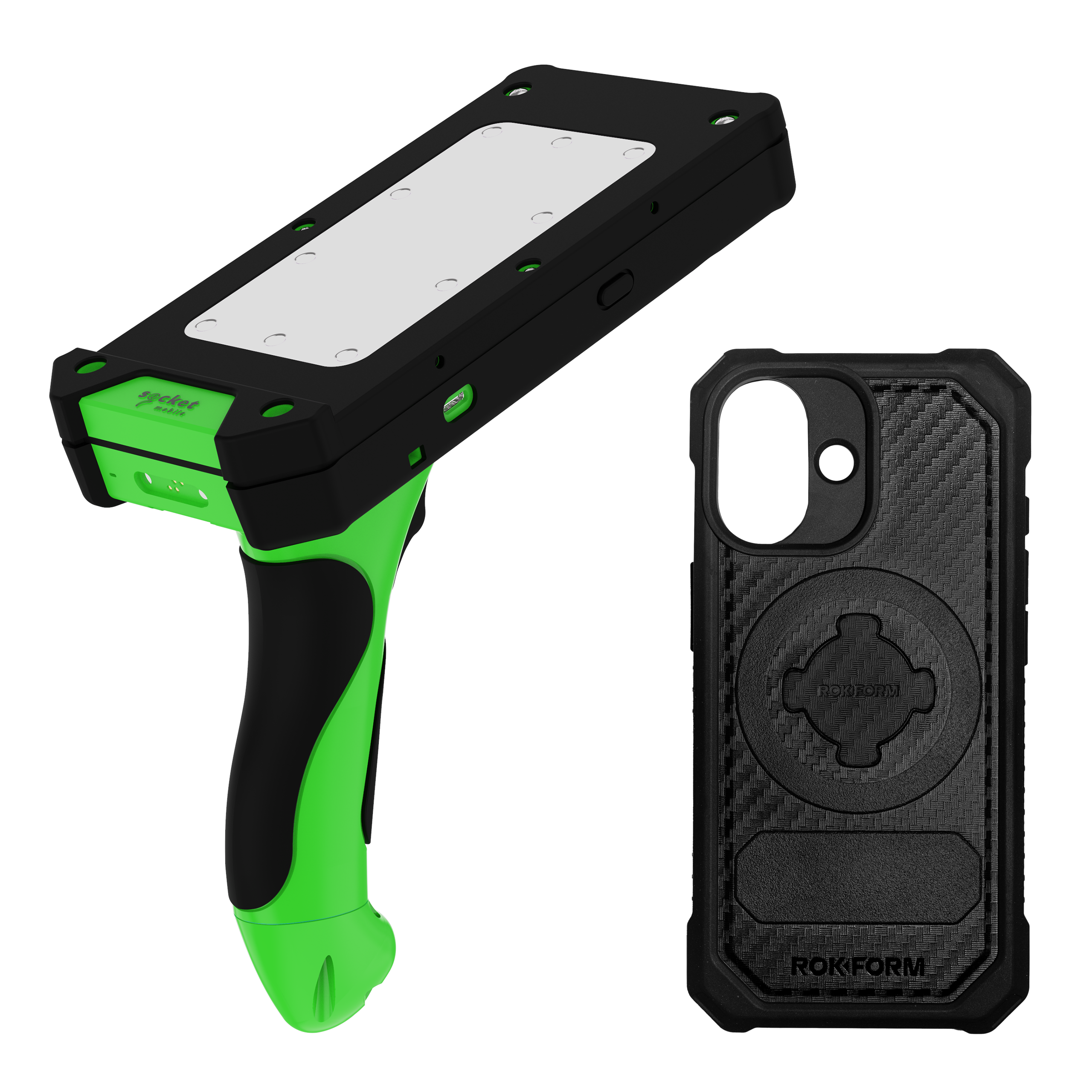

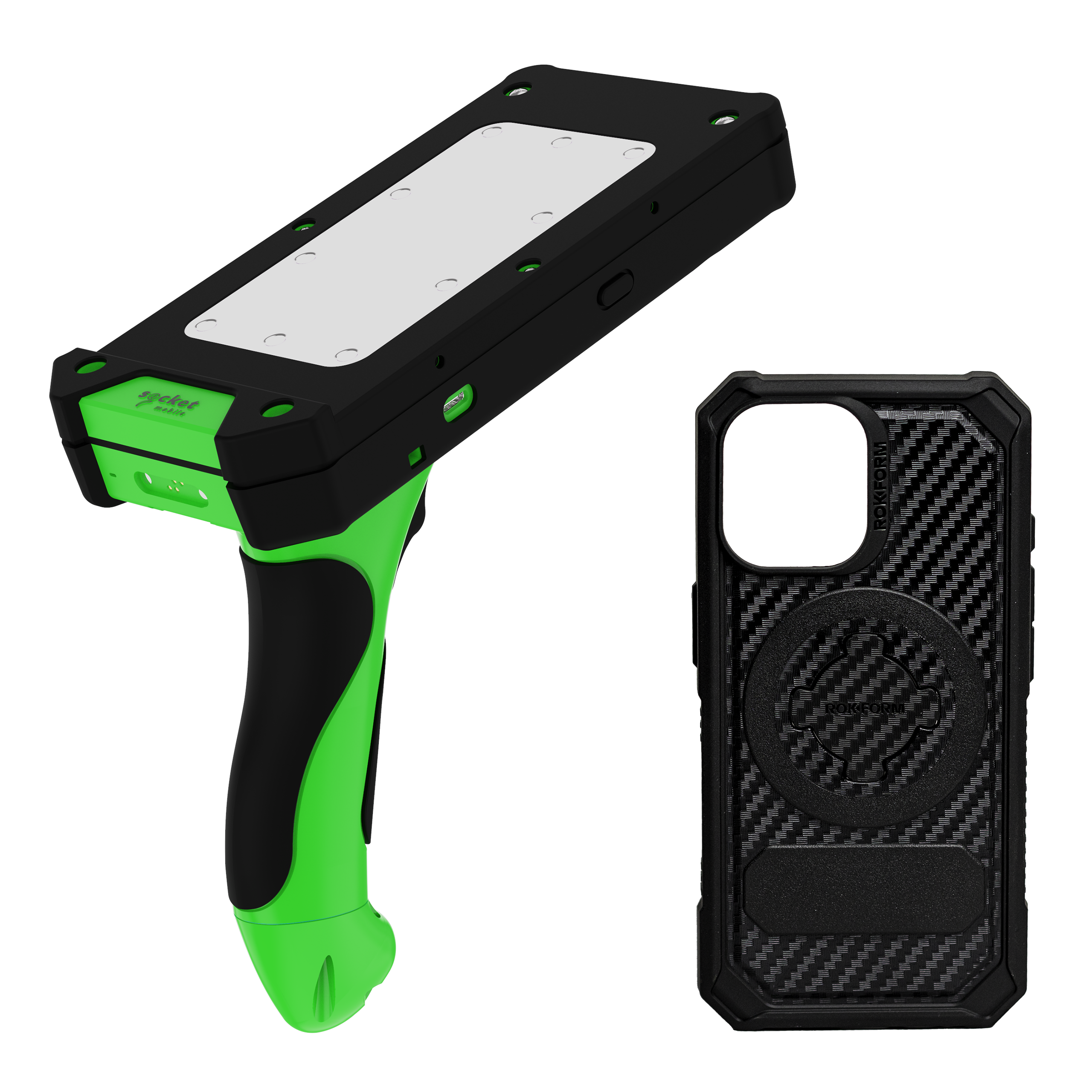

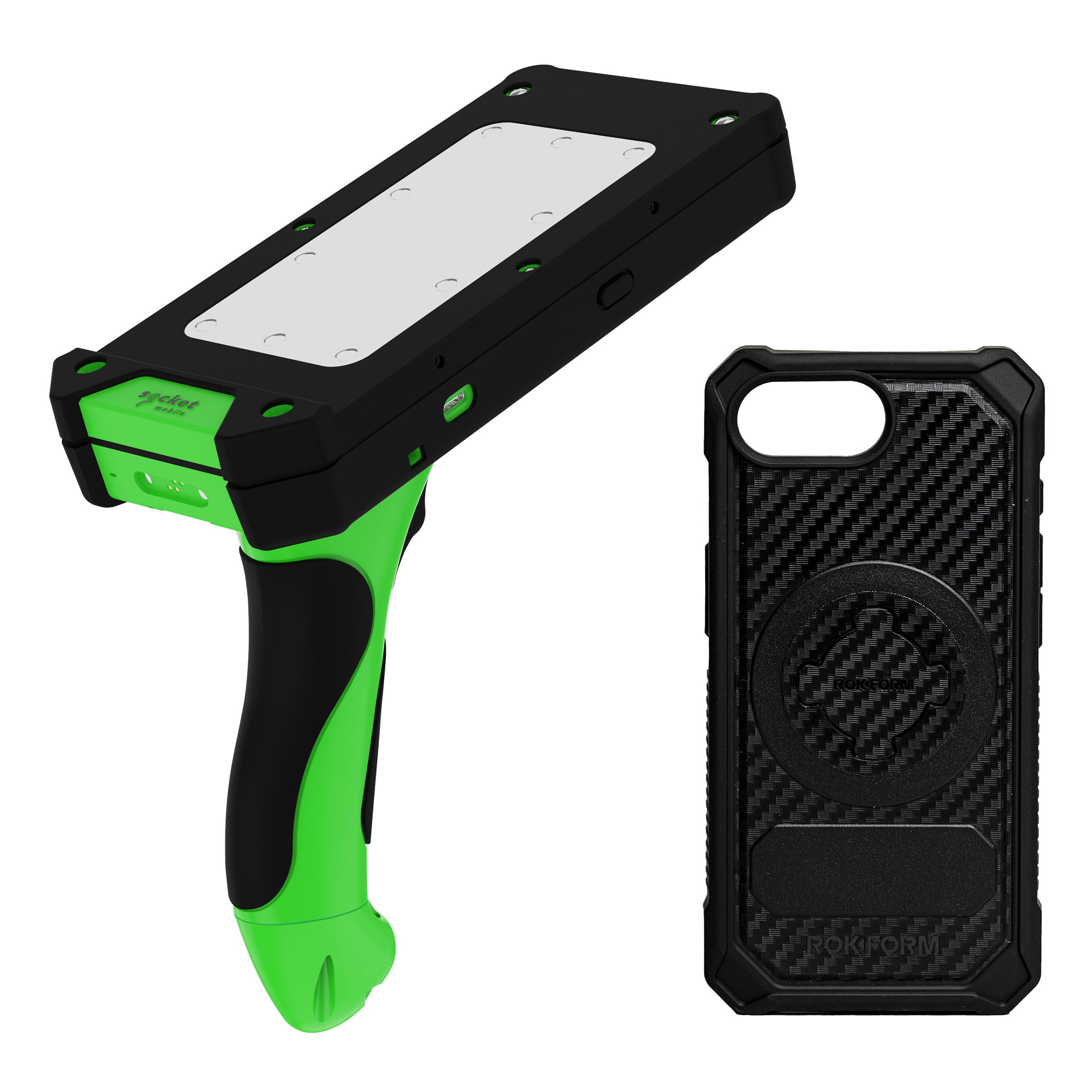

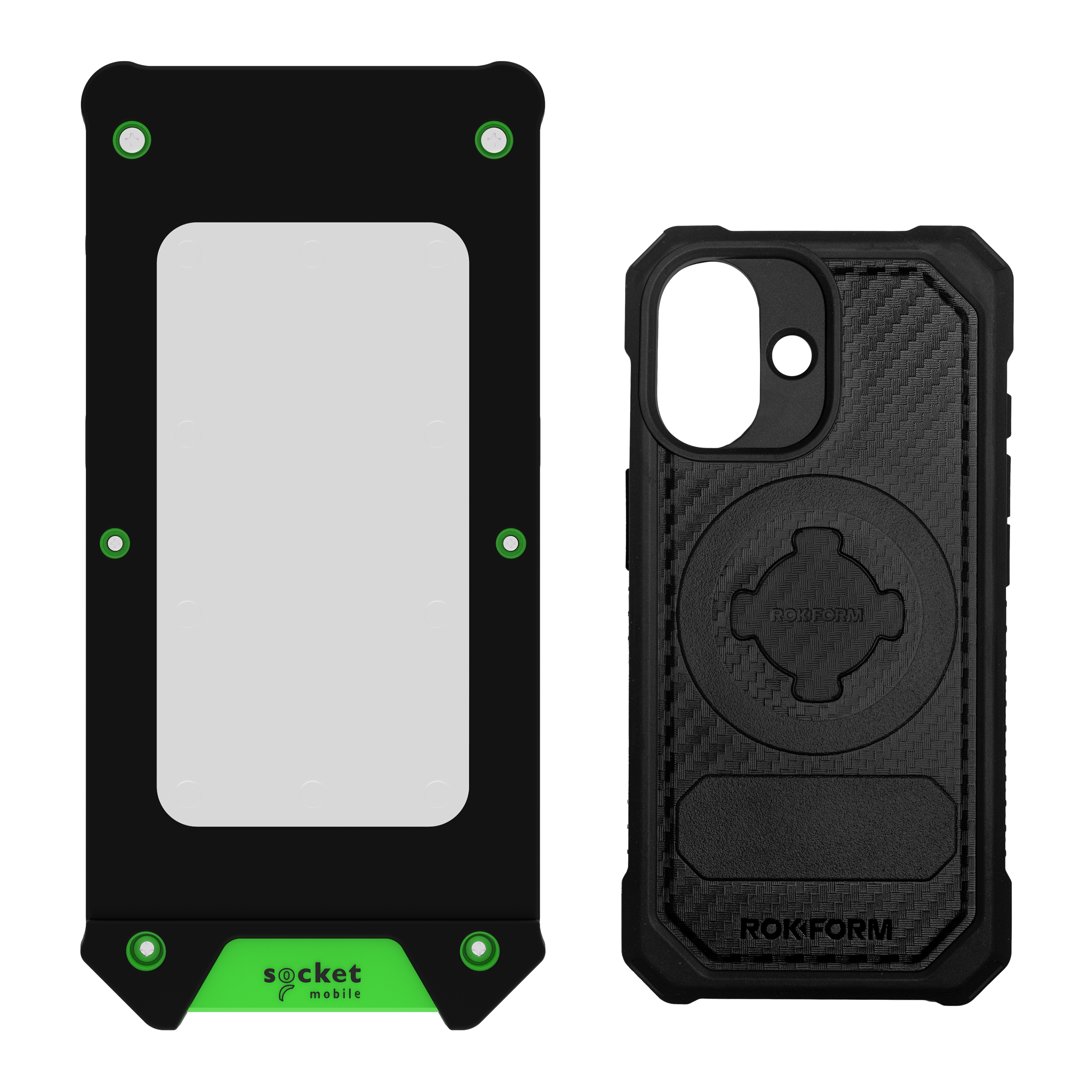

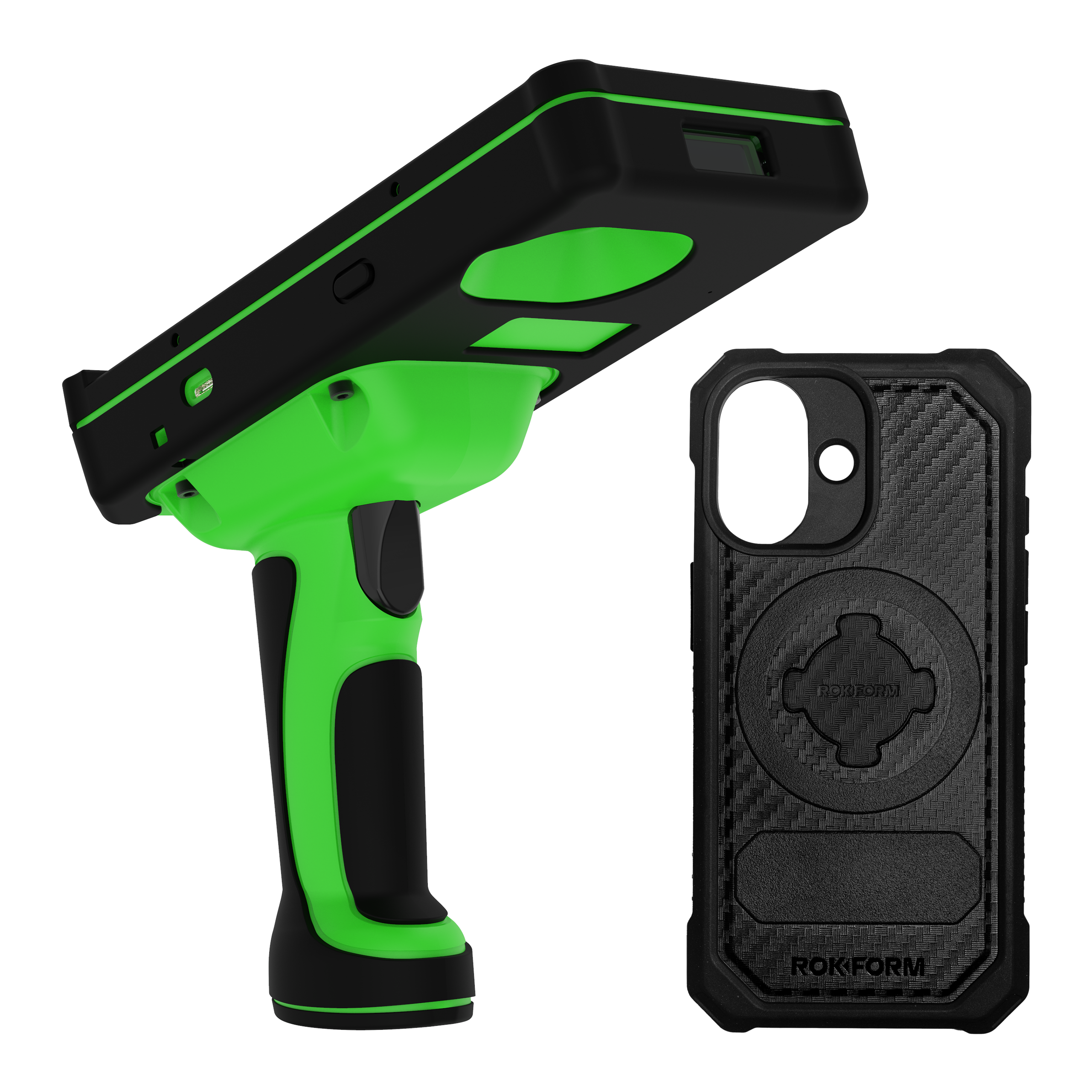

Data Reader with Rokform Case
- Data Reader
- Charging Cable with USB-C to USB-A adapter
- Rokform Case
- Get Started Guide
|
From 0 to 100 000 lux. From pitch black to direct sunlight. |
|
|
Charging in an ambient temperature above 40° C / 100° F may result in charging issues. |
|
|
Standard:
Freezer:
|
|
|
0° to 45° C (32° to 113° F) |
|
|
95% at 60° C (140° F) (non-condensing) |
|
|
IP67 (Ingress protection rating for dust and water) meets IEC sealing and EN60529 specifications. |
|
|
-40° to 70° C (-40° to 158° F) |
|
|
2,500 cycles at 3.3 ft. (1 m) to a metal plate, IEC6008-2-31, IEC60068-2-32 3. |
Bluetooth SIG:
- Declaration ID: D030529
- QD ID: 82009
Electrical Safety:
- EN 62368-1:2020 + A11:2020
- IEC 62368-1:2018
- UL 62368-1:2019 R10.21
- CSA C22.2 NO. 62368-1:19
Environmental:
- RoHS EN 50581
EMI / RFI:
- FCC Part 15 Class C, RSS 210, iCES 003, C-Tick, CISPR 22, CE EN55022, EN55024
- TELEC:
- FCC ID: LUBMA41
- IC ID: 2529A-MA41M9
LED Safety:
- IEC 60825-1
- EN 60825-1
