XtremeScan XS930

Rugged 1D Laser Barcode Scanner

The XS930 is designed to enable single-handed use of your Apple® iPhone® while providing industrial-grade scanning capabilities in harsh environments. With its high-performance scanning module, the XS930 allows you to effortlessly meet your daily scanning needs while utilizing your favorite iOS apps.

Reads:
  • 1D Barcodes
1D Barcodes

XtremeScan XS930

Rugged 1D Laser Barcode Scanner

The XS930 is designed to enable single-handed use of your Apple® iPhone® while providing industrial-grade scanning capabilities in harsh environments. With its high-performance scanning module, the XS930 allows you to effortlessly meet your daily scanning needs while utilizing your favorite iOS apps.

1
Rugged IP67 Scans through plastic or glass
Compatible with:
Bluetooth Apple iOS

Important: The XS930 is a case and scanner only. Mobile phone not included.

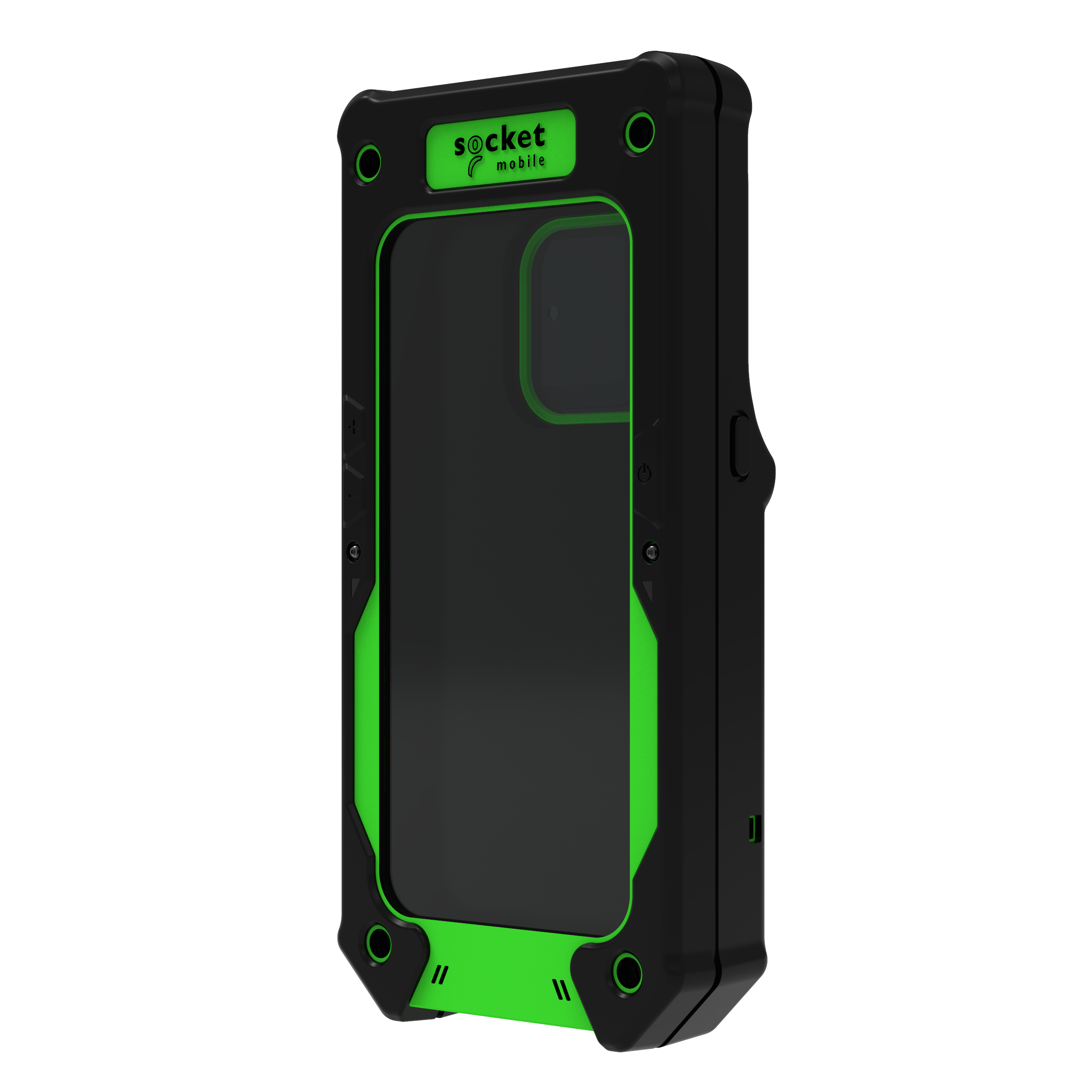

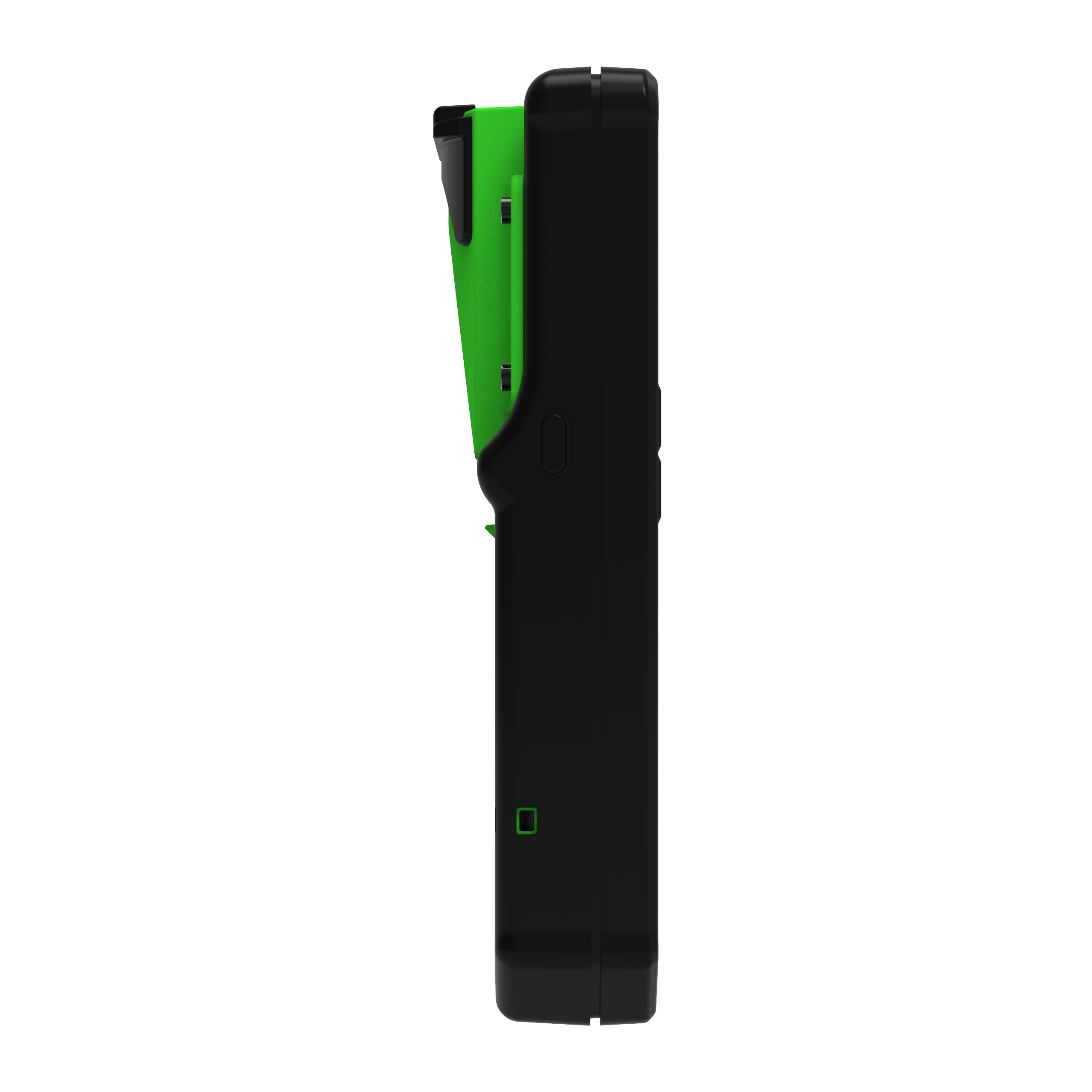

The XtremeScan XS930 is a modular, rugged, handheld mobile data reader that combines an iPhone case and 1D laser barcode reader to form a one-handed, industrial-grade scanning solution. It features long-range scanning capability, making it ideal for applications scanning barcodes on floor labels and rack labels on high shelves. The scanner is integrated with a heavy-duty case and is designed to withstand heavy use in demanding industrial environments. The XtremeScan case provides IP67-sealed housing and protects against jets of low-pressure water. It includes an integrated wireless charger, so you can charge the iPhone without removing it from the case.

With a compatible iPhone, the XtremeScan XS930 laser barcode scanner becomes a versatile and powerful mobile solution that can be used with a variety of industrial applications. The XS930 has a class 2 laser that scans through plastic or glass, in bright or poor lighting conditions, sideways, upside down, or straight at imperfect barcodes. Depending on the barcode symbology, width, size, and label media, the XS930 can scan from 1.2 inches (3.0 cm) to 180 inches (457.2 cm). The industrial-grade, rugged housing can handle multiple drops onto concrete.

Features
  • Robust Scanning

    Fast 1D laser scanning for printed barcodes featuring a high-performance Class 2 laser. Ideal for moderate to rigorous scanning applications, handles thousands of scans per day and operates at distances of up to 180" (457.2 cm), depending on barcode size and quality.

  • Bluetooth Wireless Integration

    Dependable Bluetooth connection to host devices.

  • Long-Lasting Battery

    Features rechargeable and field-replaceable battery that lasts a full shift.

  • Rugged Design

    Built to withstand drops and harsh environments, with an IP67 sealed housing for protection from dust, water exposure, and water immersion.

  • Charging

    Case charges both devices (Apple iPhone & Socket Mobile scanner).

  • Magnetic Attachment

    Securely holds any device in place using a compatible case or the included universal adapter, ensuring convenience and ease of use in various work environments.

  • LED Aimer

    Bright, rectangular illumination field with LED pointer for precise aiming.

  • One-Handed Solution

    Easily combine the mobile device and data reader for a one-handed scanning solution.

  • Intuitive User Indicators

    LED lights that indicate successful scanning and battery charging status.

  • Easy App Integration

    Socket Mobile's Capture SDK enables easy integration in your applications to improve business productivity with fast, efficient, and reliable data transfer over Bluetooth wireless technology. Data reader works out of the box for apps that have already integrated CaptureSDK.

  • Designed and Assembled in the USA

    All socket mobile data readers are built at our headquarters in Fremont, CA.

  • Audible Feedback

    Multiple feedback tones to indicate successful scans/reads and other important action confirmations.

  • Developer Support

    Our support team is available to assist with set-up and operation.

  • 1-Year Warranty Included

    Extended warranty options also available.

Dimensions

XtremeScan - dimensions

External Control

XtremeScan - external-controls

Reading Performance
Default Barcode Symbologies
  • 1D Symbologies: Bookland EAN, Code 39, Code 39 Full ASCII, Code 93, Code 128, EAN-8/JAN, Ean-13/JAN, GS1 DataBar, GS1 Databar Expanded, GS1 DataBar Limited, GS1-128, Interleaved 2 of 5, ISBT 128, UPC A, UPC E
Supported Barcode Symbologies
  • 1D Symbologies: Bookland EAN, Chinese 2 of 5, Codabar, Code 11, Code 39, Code 93, Code 128, Discrete 2 of 5, EAN-8, EAN 13, GS1-128, GS1 Databar, GS1 Databar Expanded, GS1 Databar Limited, Interleaved 2 of 5, Inverse 1D, ISBT 128, Korean 3 of 5, Matrix 2 Of 5, MSI, UPC-A, UPC-E/E1

Learn how to enable and disable data types.

Optical Resolution

0.005 in. Minimum element width

Print Contrast

Minimum 25% absolute dark/light Reflectance measured at 650 nm.

Scan Angle

Wide: 47° (Default) Medium: 35°Narrow: 10°

Reading Distance

Reading Distance - Laser

Decode Ranges

1D codes 3.05 to 457.2 cm (1.2 in to 180 in). Depends on width and barcode size, symbology, label media.

 NearFar
5 mil Code 391.2 in/3.0 cm10.5 in/21.0 cm
5 mils Code 1281.4 in/3.6 cm7.0 in/26.7 cm
7.5 mils Code 391.2 in/3.0 cm16.5 in/41.9 cm
10 mils Code 1281.2 in/3.0 cm16.0 in/40.6 cm
13 mils 100% UPC1.8 in/4.6 cm25.0 in/63.5 cm
15 mils Code 1282.0 in/5.1 cm26.0 in/66.0 cm
20 mils Code 391.4 in/3.6 cm46.0 in/116.8 cm
55 mils Code 393.4 in/8.6 cm70.0 in/177.8 cm
100 mils Code 3924 in/61 cm180.0 in/457.2 cm
Battery Information
Battery Type 1 rechargeable Lithium Ion Polymer (replaceable battery)
Charge Time 8 Hours
Life of battery 500 charge-discharge cycles
Life per full charge

Standby time: 25 hours

Active Scan Time: 10,000 scans within 11 hours (based on one scan every 4 seconds)

Note: Battery life varies depending on ambient temperature, ambient light, and the age of the battery.

Battery weight 12.5g
Percentage lithium 36.3%
mAh 700
Cells per battery 1
Watts per battery 2.59
Cell type Proprietary
Chemical composition Lithium - polymer
Lithium content 4.5g
Voltage 3.7v
Hazmat UN Number UN3481, P.I. 967
ROHS Compliance Yes, Included with Scanner
Country of origin China
Commodity code 8507.60.0000
Bluetooth Information
  • Basic Mode - Human Interface Device (HID)
  • Application Mode - Serial Port Profile (SPP)
  • iOS Application Mode (Default)

Some Operating Systems or smartphone/tablet models may support only one profile.

Class 2 Bluetooth, version 2.1 + EDR (Enhanced Data Rates) with 56-bit data encryption

Up to 10 meters (33 ft.), depending on the environment. The range limit is usually due to the Host Device (phone, tablet, or notebook).

Operating Systems
apple-logo
Packaging
  • Data Reader
  • Charging Cable
  • Get Started Guide
User Environments

From 0 to 100 000 lux. From pitch black to direct sunlight.

Charging in an ambient temperature above 40° C / 100° F may result in charging issues.

Standard:

  • 10 ft. (3.1m) drop at room temperature per MIL-STD-810G

Freezer:

  • 8 ft. (2.4m) drop to concrete across temperature per MIL-STD-810G
  • 7 ft. (2.1m) drop to concrete across temperature per MIL-STD-810G.

0° to 45° C (32° to 113° F)

95% at 60° C (140° F) (non-condensing)

IP67 (Ingress protection rating for dust and water) meets IEC sealing and EN60529 specifications.

-40° to 70° C (-40° to 158° F)

2,500 cycles at 3.3 ft. (1 m) to a metal plate, IEC6008-2-31, IEC60068-2-32 3.

Certification & Regulatory

Bluetooth SIG:

  • Declaration ID: D030529 QD ID: 82009

Electrical Safety:

  • EN 62368-1:2020 + A11:2020
  • IEC 62368-1:2018
  • UL 62368-1:2019 R10.21
  • CSA C22.2 NO. 62368-1:19

Environmental:

  • RoHS EN 50581

EMI / RFI:

  • FCC Part 15 Class C, RSS 210, iCES 003, C-Tick, CISPR 22, CE EN55022, EN55024
  • TELEC:
  • FCC ID: LUBMA41
  • IC ID: 2529A-MA41M9

LED Safety:

  • IEC 60825-1
  • EN 60825-1
ISO9001 anab-accredited
